Page 8-10 Robertson AP45 Autopilot
Spare parts and drawings
Simrad Robertson AS
Egersund - Norway
21102579 J45S Junction Unit
21102827 PC-board complete
21100144 Relay socket complete, K1
44155539 Relay 12V/40A 1 pole
44133684 Line filter 250V/3A, FL1
44110989 Capacitor 22mF/20V, C11, C12
44111177 Capacitor 220mF 40V C4
44104123 Diode MR851, D3, D4, D5, D8
44116812 Diode IN4006, D6, D7
44104156 Diode BZX 79B16 D2
44106474 Thyristor 2N6394, SCR1
44115384 Diode zener D4 15V 1W, D1
44103000 Transistor 2N2907A, Q4
44103091 Transistor 2N6388, Q1,2,3
44115160 Diode LED Red SPR5531, D1,2
44118735 IC Optocoupler PC829, IC1
44103653 Fuse 2A/250V 5x20mm, F1
44114171 Heatzink insulator FOR Q1,2,3
44122604 Plug-in strap

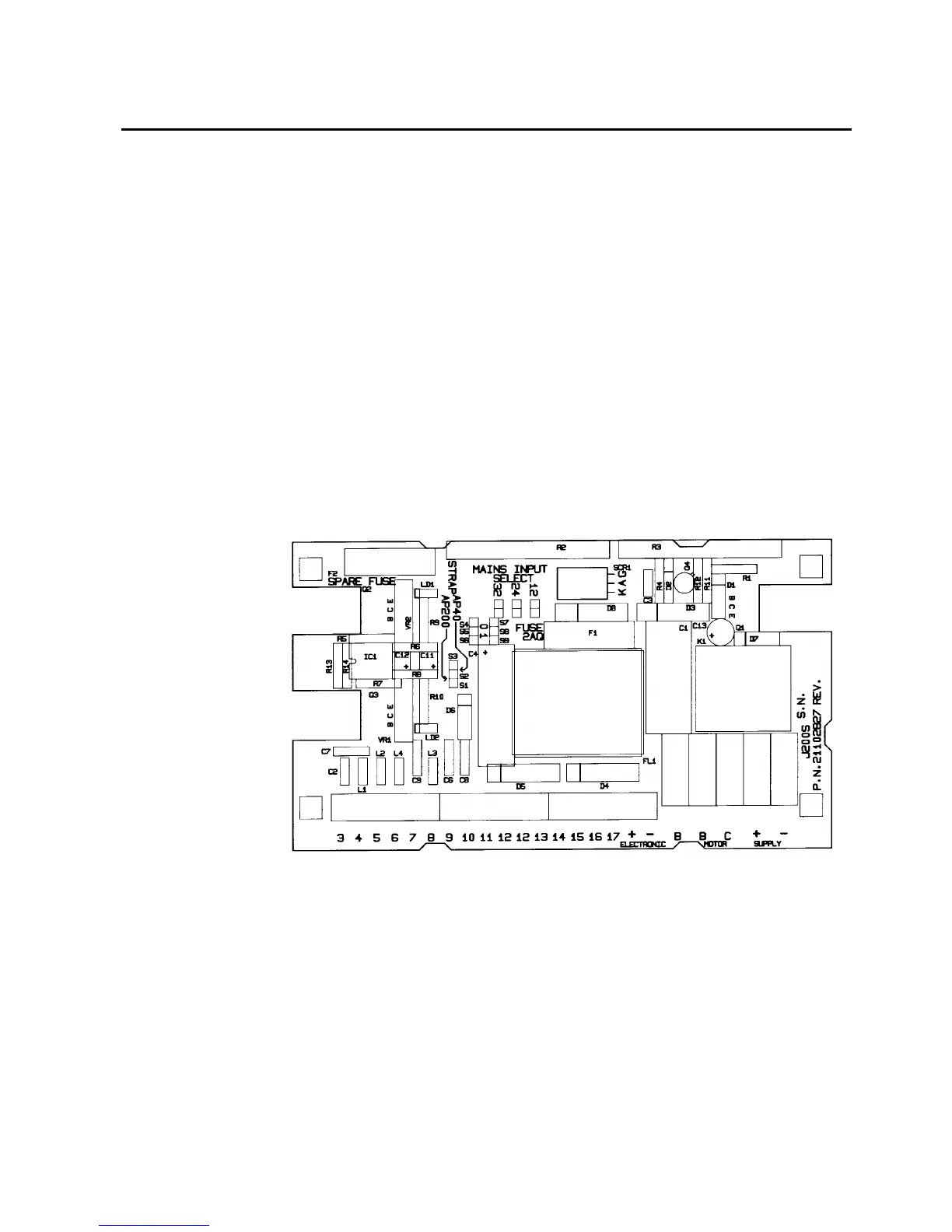

Fig. 8-9
J45S Component reference
J45S Junction Unit
