Page 8-14 Robertson AP45 Autopilot
Spare parts and drawings
Simrad Robertson AS
Egersund - Norway
20171377 F200-40 Remote Control w/mounting accessories
20171385 F200-40 Remote Control
20156410 Cable (7m) with AMP-plug
20103859 Mounting accessories
20171286 PC-board ass’y
44116754 LCD displays 4 digits
44115160 Light emitting diode SPR5531 D2, D3
20104220 Control knob assembly (COURSE)
20104253 Toothed wheel with shaft
44117224 Push button switch SW1, SW2, SW3 (MPD)
20103784 Actuator for SW1, SW2, SW3
44190114 Gasket O-ring 3 mm
44116796 Voltage regulator LM340 LAZ 5 IC1
20171328 F200 front panel (keypad)
Fig. 8-13

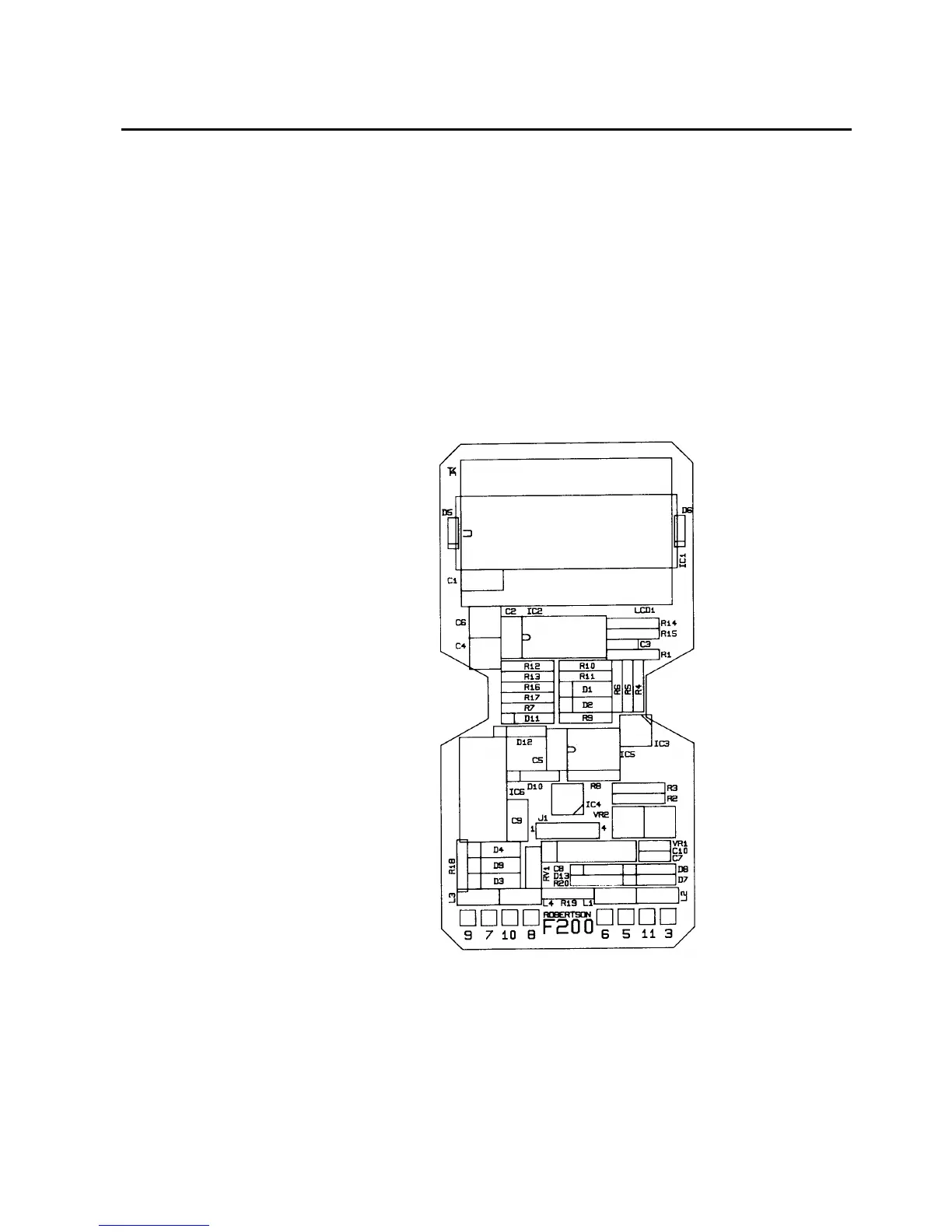

F200-40 Component reference
F200-40 Remote
Control
