Robertson AP45 Autopilot
Installation
Simrad Robertson AS
Egersund - Norway
Page 5-13
The RF45X is normally mounted with the
shaft pointing upwards. It can, however,
also be mounted with the shaft pointing
downwards if that appears to be more
convenient.
NOTE!
In case of an “upside-down” installation,
the two plug-in straps on the component
side of the PCB have to be “turned” 90
°
to
achieve reversed output signal. (To remove
the PCB from the housing, simply grip the
potentiometer and pull.
Shaft pointing up: Strap S2 to “N(ormal)”
Shaft pointing down: Strap S2 to
“I(nverted)”.
It should be noted that an “upside-down”
installation will make any adjustment and
service more convenient as the unit then
can be opened without removing the unit
from the mounting base.

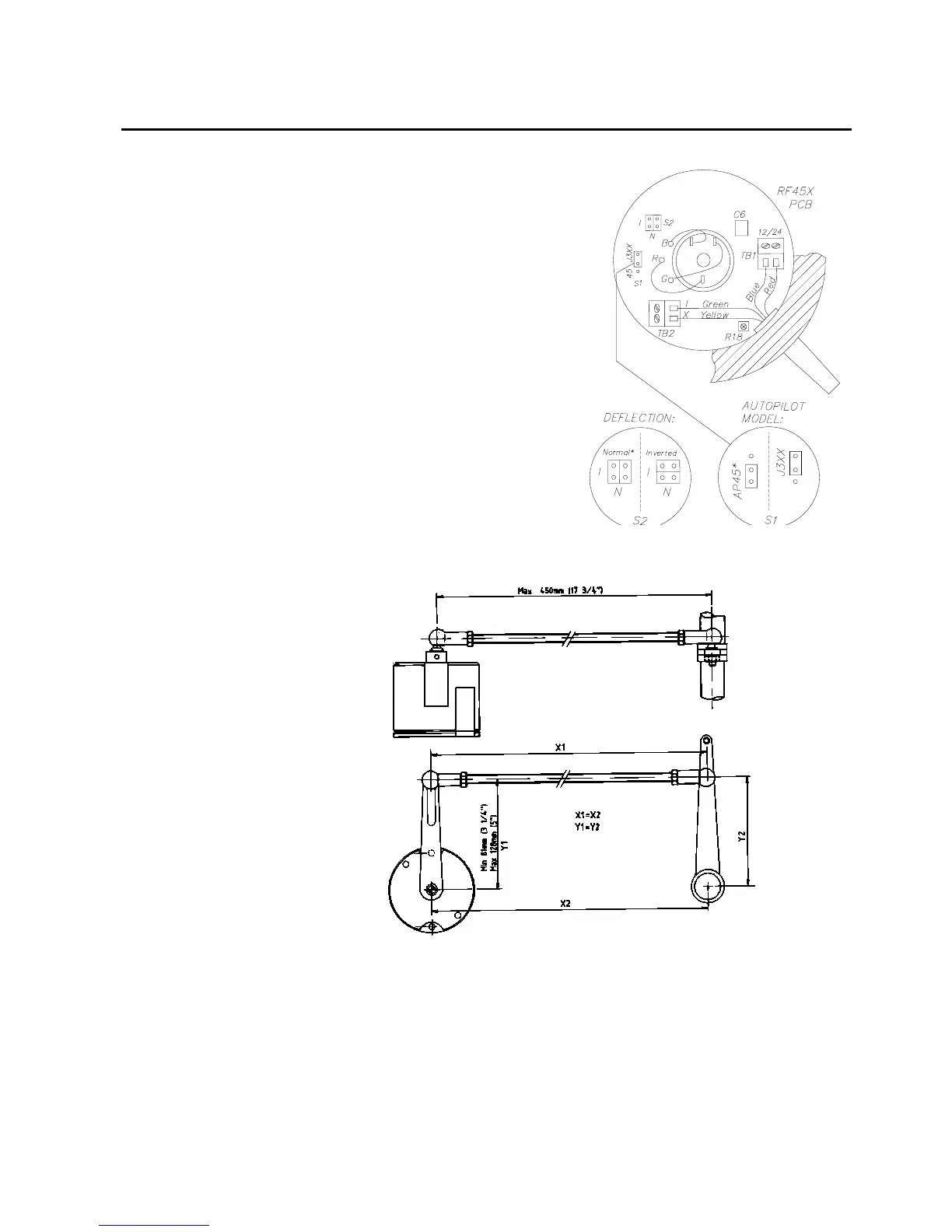

Fig. 5-16
RF45X Rudder Feedback Unit - Mounting
Use the attached template (Fig. 5-18) to drill the required mounting holes. The unit
is fastened to the mounting base by the two Allen screws enclosed. (Other types of
screws may be used if fastened to i.e. a wooden base.)
Make the parallelogram configuration of the transmission link (see Fig. 5-16) and
fasten the link to the RF45X shaft preliminary. The transmission link can be
shortened by cutting of a piece of the rod (using a hacksaw). Move the rudder
RF45X Rudder
Feedback Unit
Fig. 5-15
RF45X Internal Wirin
