Simrad ROBERTSON AP45 - RFC35 NS Fluxgate Compass; Imensions

Robertson AP45 Autopilot
Technical specifications
Simrad Robertson AS
Egersund - Norway
Page 4-3
Dimensions.............See Fig. 4-3
Heading output:.....Serial and analogue
Output format: .......NMEA183 10x/sec. and sine/cosine.
NMEA data:............$IIHDM,x.x,m*hh<cr><If>
x.x=heading, hh = checksum
Analogue data:........Sine/Cosine ±2V, 2.5VDC reference.
Accuracy: ................<1.25° rms
Repeatability: .........<0.2° rms
Calibration: ............Automatic
Roll & Pitch: ..........±35°
Supply:....................10-29 VDC, 1 W
Temperature:
Operation: .......0 to +55°C (+32 to + 130°F)
Storage: ...........–30 to +80°C (–22 to +176°F)
Protection:...............IP56
Mounting.................Deck or bulkhead
Cable supplied:.......0.3m (1 ft.) with Viking connector for Robertson autopilots
(Sine/Cosine data) and N2500 NMEA Interface.

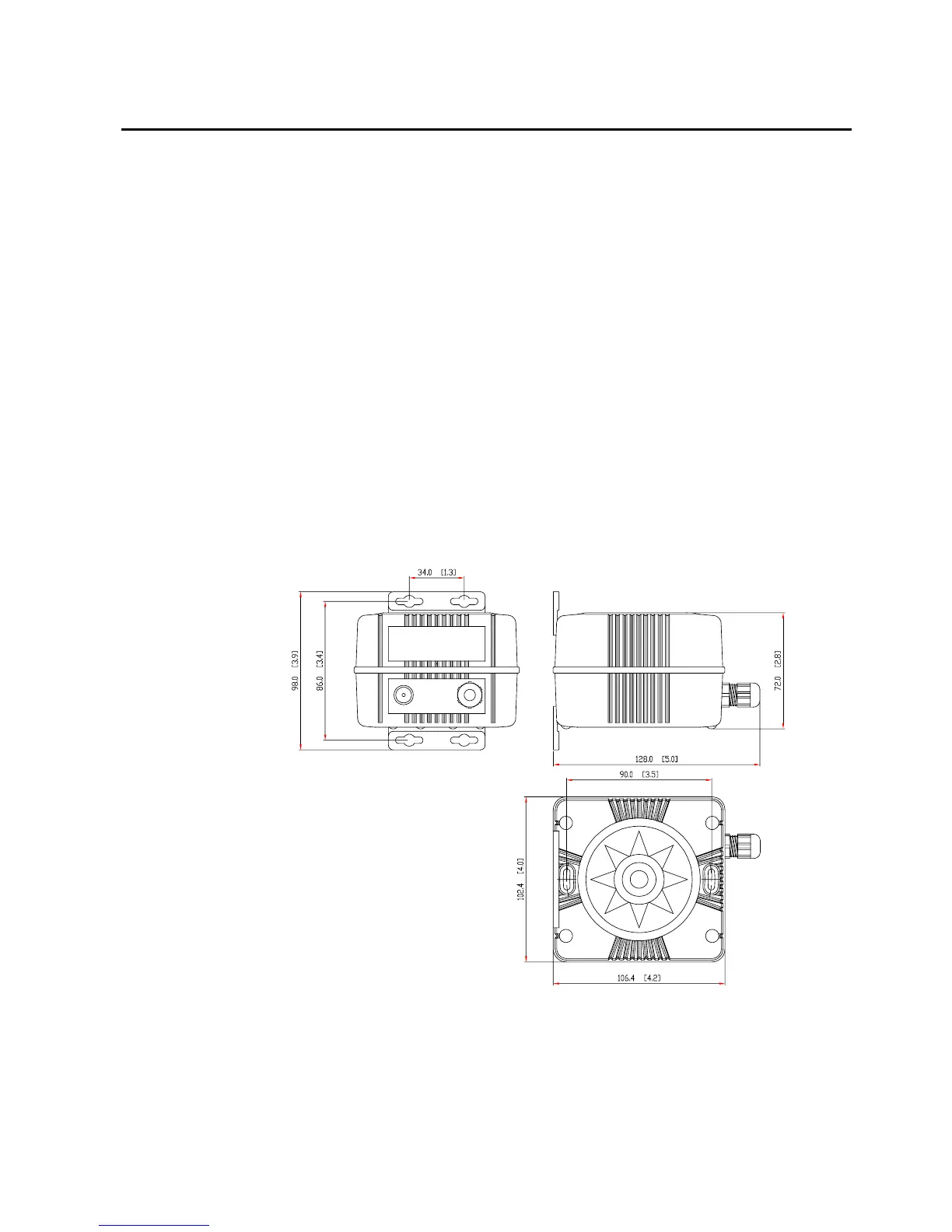

Fig. 4-3
RFC35NS - Dimensions
RFC35NS Fluxgate
compass
