The different alternatives are described on page 2-12, and are the result of
connecting a resistor between terminals M and A3 in S9.
Alternative 1: No resistor mounted.
Alternative 2: 1.0 Kohm (1/4W, 5 %)
Alternative 3: 3.0 Kohm (1/4W, 5 %)
Alternative 4: 5.1 Kohm (1/4W, 5 %)
Note!
If F200-40 is connected in combination with S9, only alternative 1 can be used.
Fig. 5-29

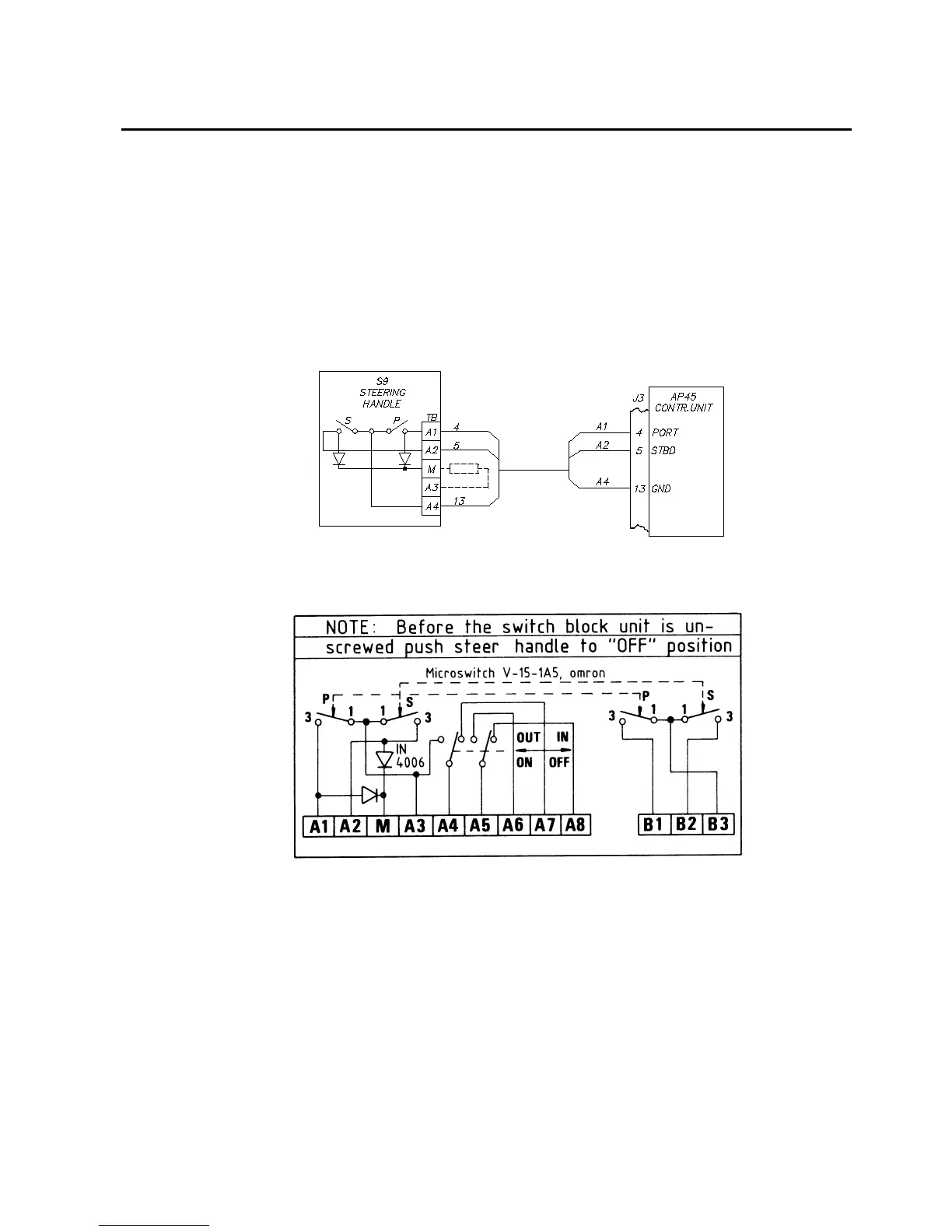

S9/AP45 - Wiring diagram
Fig. 5-30
S9 Steering Lever - internal wiring
