Page 8-12 Robertson AP45 Autopilot
Spare parts and drawings
Simrad Robertson AS
Egersund - Norway
21102611 J45A Junction Unit
21099981 J101A-40 Junction Unit
21099908 J45A PCB ass'y
44115434 Trans. BDW94A Darlington, T2
44114734 Relay 12V, RL1
44114874 Transistor BUZ 14 MOS 50V 39A, T1
44103091 Transistor 2N6388, T5
44112233 Voltage regulator LM317T, IC4
44114841 Zener diode BZX 61 C43, D4
44109213 Zener diode BZX 61 C12, D5
44103026 Transistor 2N2222A, T6
44118164 Transistor 1RF9521, T8
44103257 Zenerdiode BZW55B7V5, D13, D14

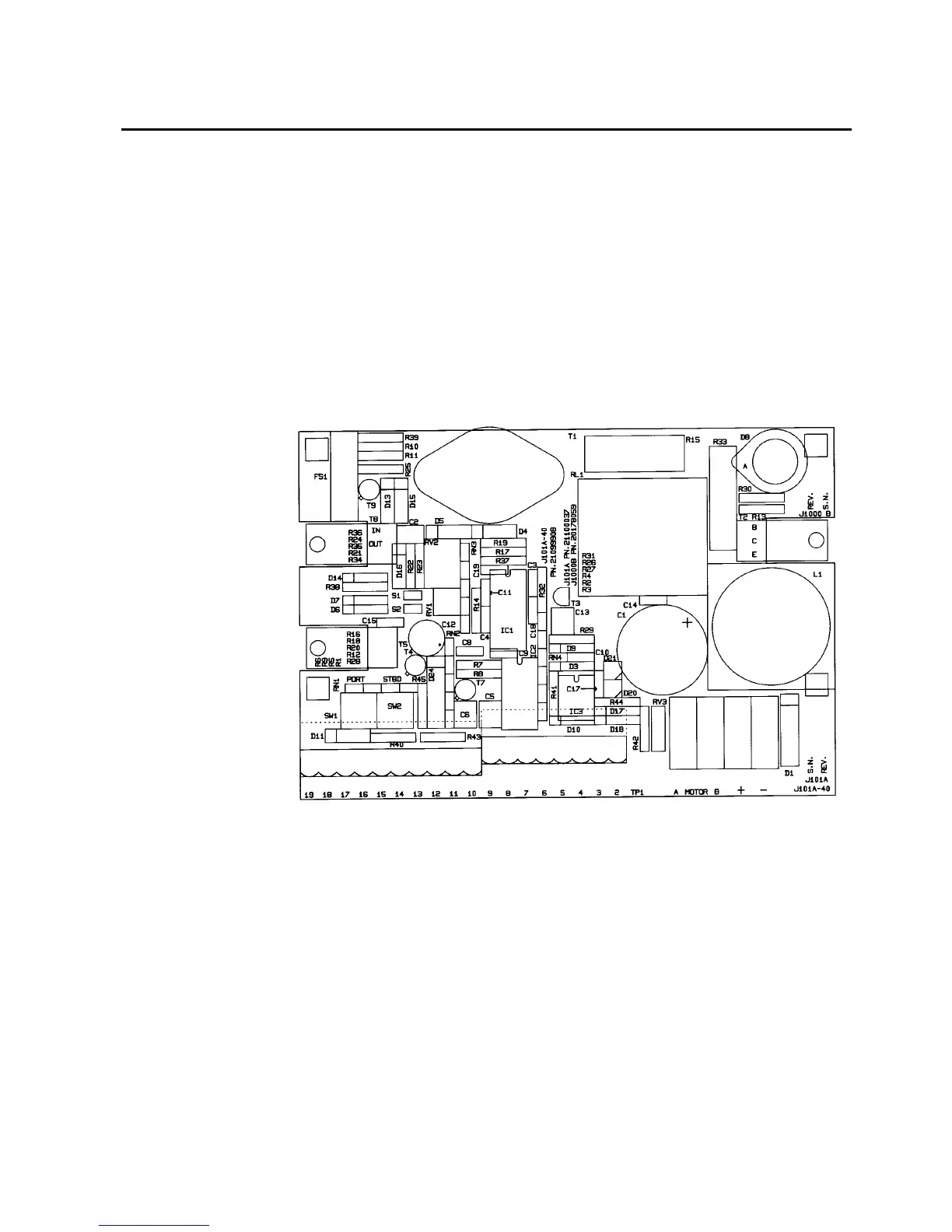

Fig. 8-11
J45A Component reference
J45A Junction Unit
