Panel setup
Selecting transducer source
Depth data can be obtained from more than one transducer connected to the system. Refer
to "System examples" on page 26.

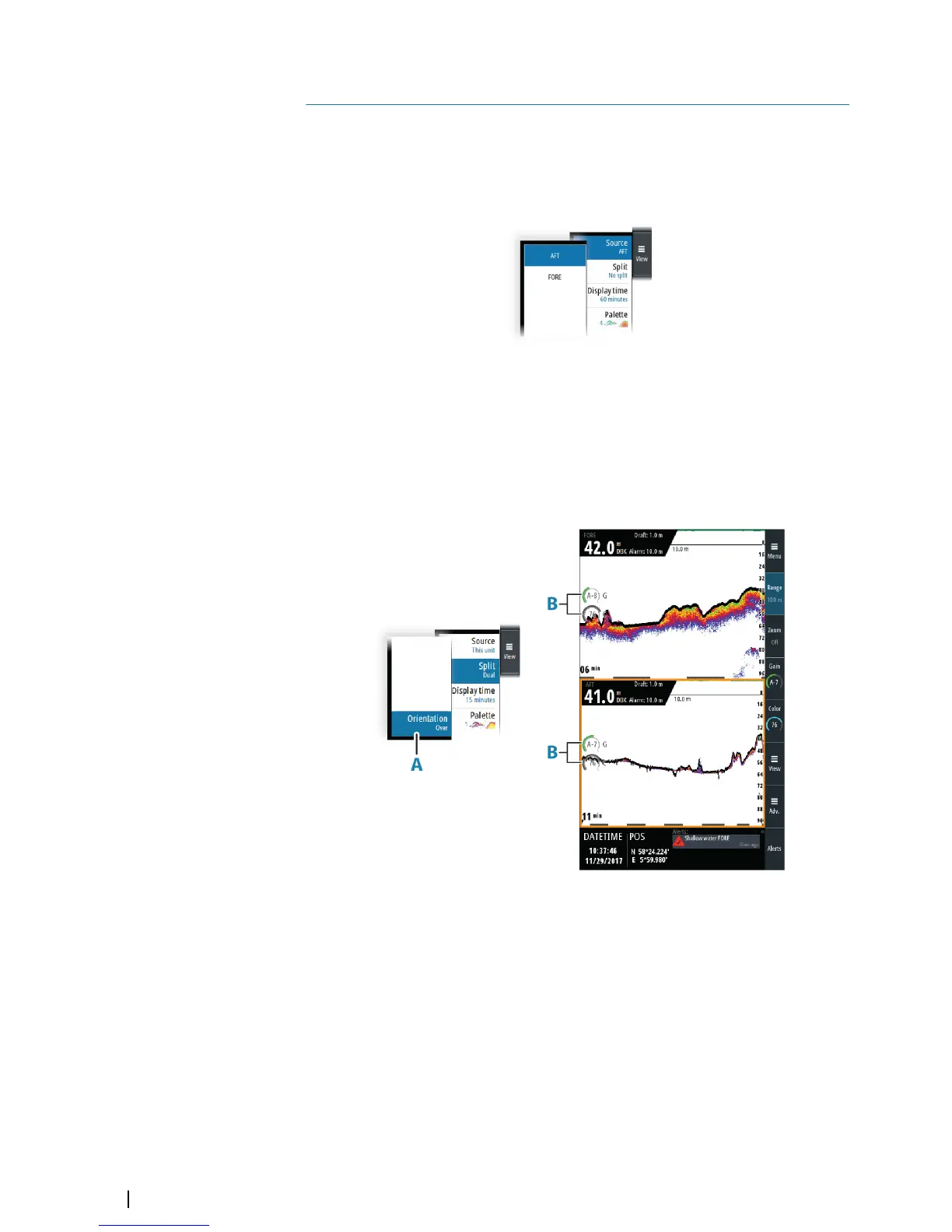

Select the transducer to be shown in a panel from the View menu.
Split screen options
Dual
The dual split option allows for viewing signals from two transducers at the same time.
When the function is selected, use the orientation option (A) to select if the panels shall be
arranged on top of each other or side-by-side.
Gain and color icons (B) are displayed on dual panels.
Press the rotary knob to switch focus between the panels. Active panel is indicated with a
border.
Zoom
The split Zoom mode presents a magnified view of the sounder image on the left side of the
panel.
By default, the zoom level is set to 2x, and you can increase this up to 8x.
Change the zoom level by pressing the Zoom softkey and then turning the rotary knob.
Zoom bars (A) are available from the View menu. The bars indicate the range that is
magnified and displayed on the left side.
