Mounting
S3009 Control unit
Mounting guidelines
Ú
Note: Where flush mounted, the enclosure should be dry and well ventilated. In small
enclosures, it may be required to fit forced cooling.
Warning: Inadequate ventilation and subsequent overheating of the unit
may cause unreliable operation and reduced service life. Exposing the unit
to conditions that exceed the specifications could invalidate your warranty.
– refer to "Technical specifications" on page 54.

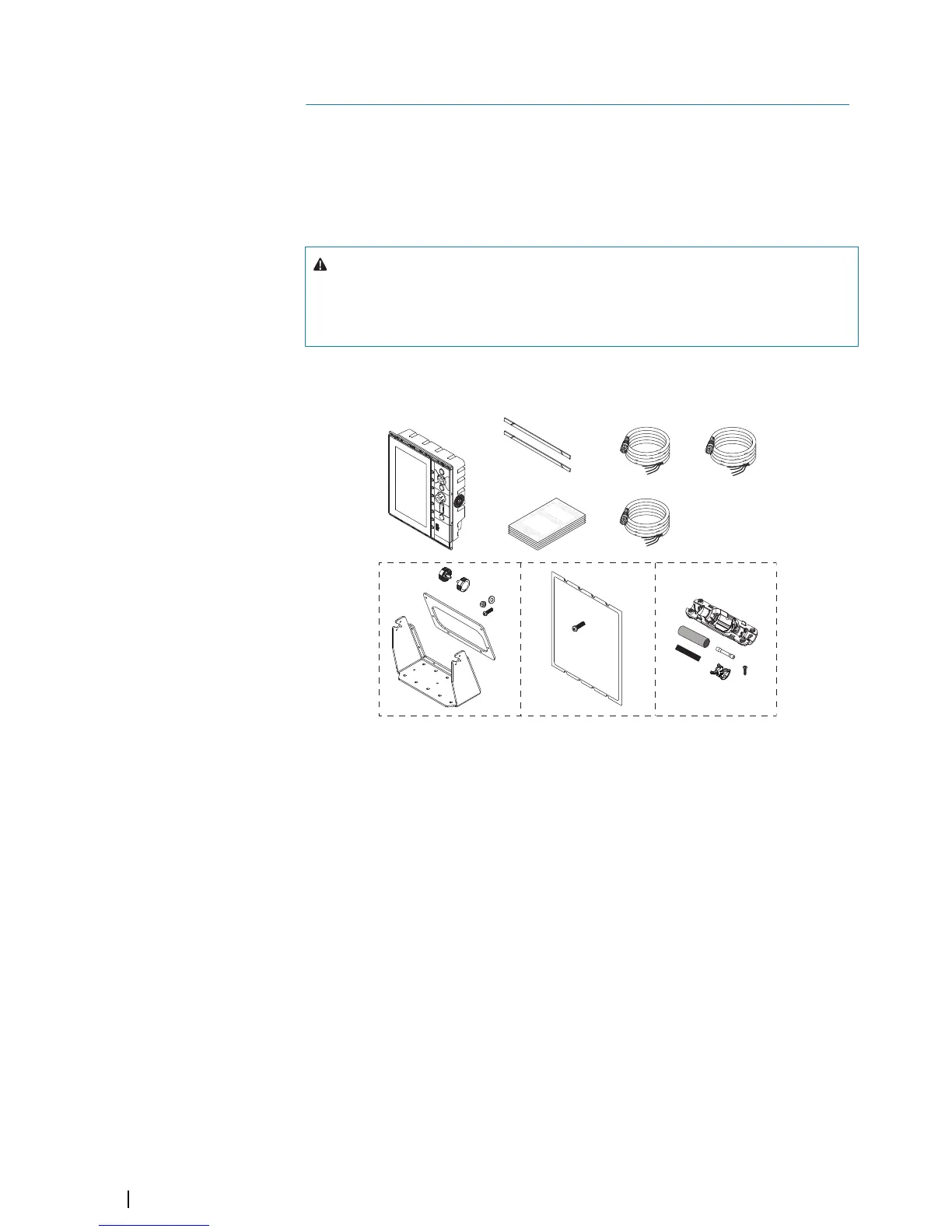

Parts included
A Control unit
B Bezels
C Transducer cable
D Power cable
E Document package
F NMEA 0183 cable
G U-bracket mounting kit
H Panel mounting kit
I Junction kit
U-bracket mounting
1. Place the bracket in the desired mounting location. Ensure that the chosen location has
enough height to accommodate the unit fitted in the bracket, and allows tilting of the
unit. In addition, adequate space is required on both sides to allow tightening and
loosening of the knobs.
2. Mark the screw locations using the bracket as a template, and drill pilot holes. Use
fasteners suited to the mounting surface material. If the material is too thin for self-
tappers, reinforce it, or mount the bracket with machine screws and large washers. Use
only 304 or 316 stainless steel fasteners.
3. Screw down the bracket.
9
24
Mounting | S3009 Echo Sounder User Manual
