A Keel offset
Set the keel offset to the distance from the bottom of the transducer to the lowest point of
the boat in the water (positive value).
Transducer type
Transducer type is used for selecting the transducer model connected to the sonar module.
The transducer selected will determine what frequencies the user can select during
operation.
Units settings
Used for specifying the units of measurement displayed.

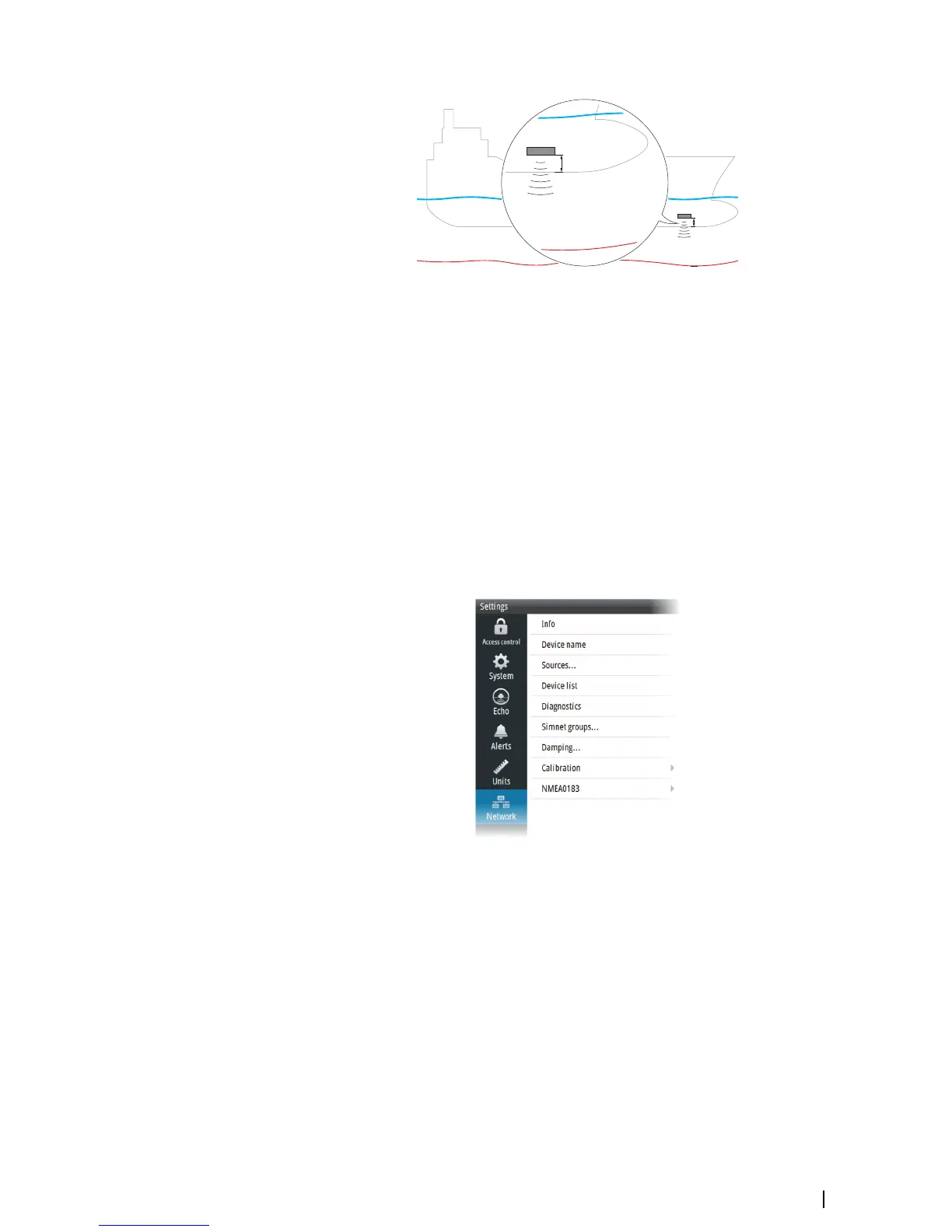

Network settings
Use the Network settings dialog to setup networks and connect to network devices.
Info
Displays the Ethernet connection status, the unit's IP and MAC addresses.
Device name
Assigning a name is useful in systems using more than one device of the same type and size.
Data source selection
Ú
Note: If NMEA 0183 is used, complete the NMEA 0183 setup prior to doing source
selection. Refer to "NMEA 0183 setup" on page 43.
Data sources provide live data to the system.
The data may originate from modules internal to the unit, or external modules connected to
the NMEA 2000 or via NMEA 0183 if available on the unit.
Software setup | S3009 Echo Sounder User Manual
