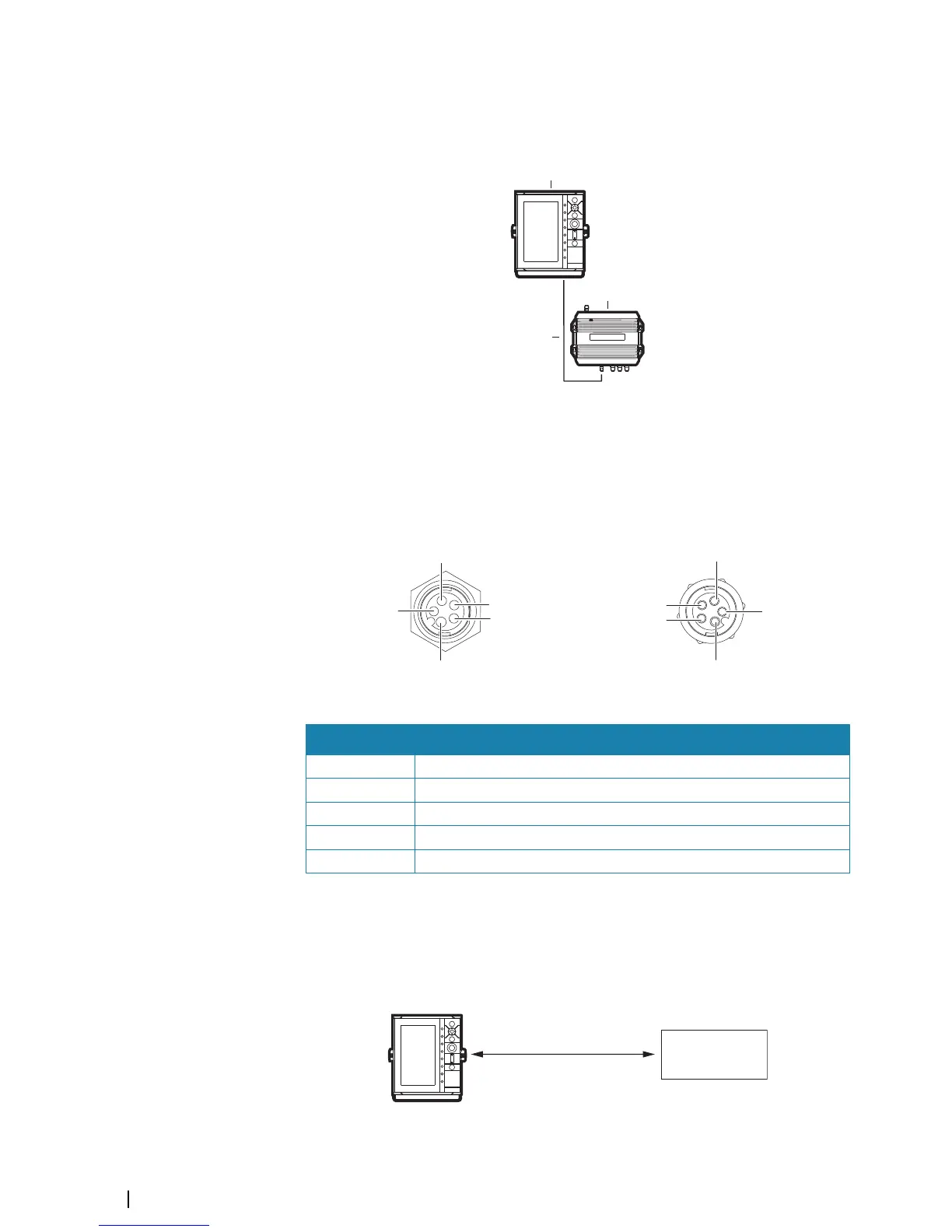

Ethernet wiring
Both the S3009 and S5100 are equipped with a 5-pin Ethernet connector and can be
connected with a 5-pin Ethernet cable.
Cable plug (male)
Pin Purpose
1 Transmit positive TX+
2 Transmit negative TX-
3 Receive positive RX+
4 Receive negative RX-
5 Shield
NMEA 0183 wiring
The NMEA 0183 serial port provides input (Listeners) and outputs (Talkers) for the various IEC
61162 interfaced sensors. The port uses the NMEA 0183 (serial balanced) standard, and can
be configured in the software for different baud rates up to 38,400 baud. For configuring of
the ports, refer to "Serial ports" on page 43.
