Simrad S3009 - Junction box assembly; Power wiring

• The joint is now ready to be sealed in the junction
box. Refer to "Junction box assembly" on page 32

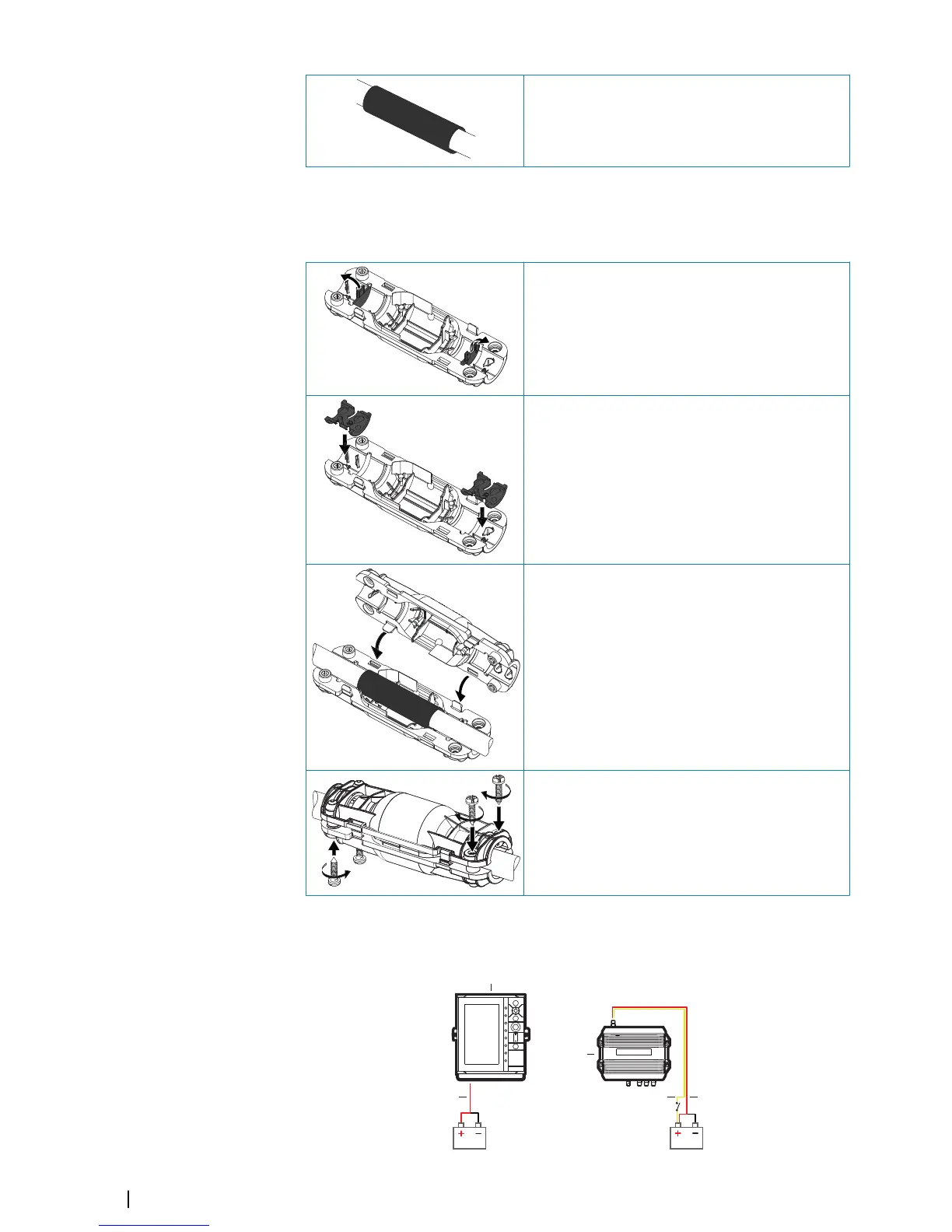

Junction box assembly
Ú
Note: The terminal block supplied with the junction box shall not be used.
• Remove the plastic stoppers
• Insert the spacers if the cable diameter is less than
9.5 mm
• Use an optional junction box (sold separately) if the
cable diameter exceeds 12.0 mm
• Place the cable and joint centered in the junction
box
• Attach the junction box lid
• Secure the junction box lid with the supplied
screws
Power wiring
C
C
A
B
D
32
Wiring | S3009 Echo Sounder User Manual
