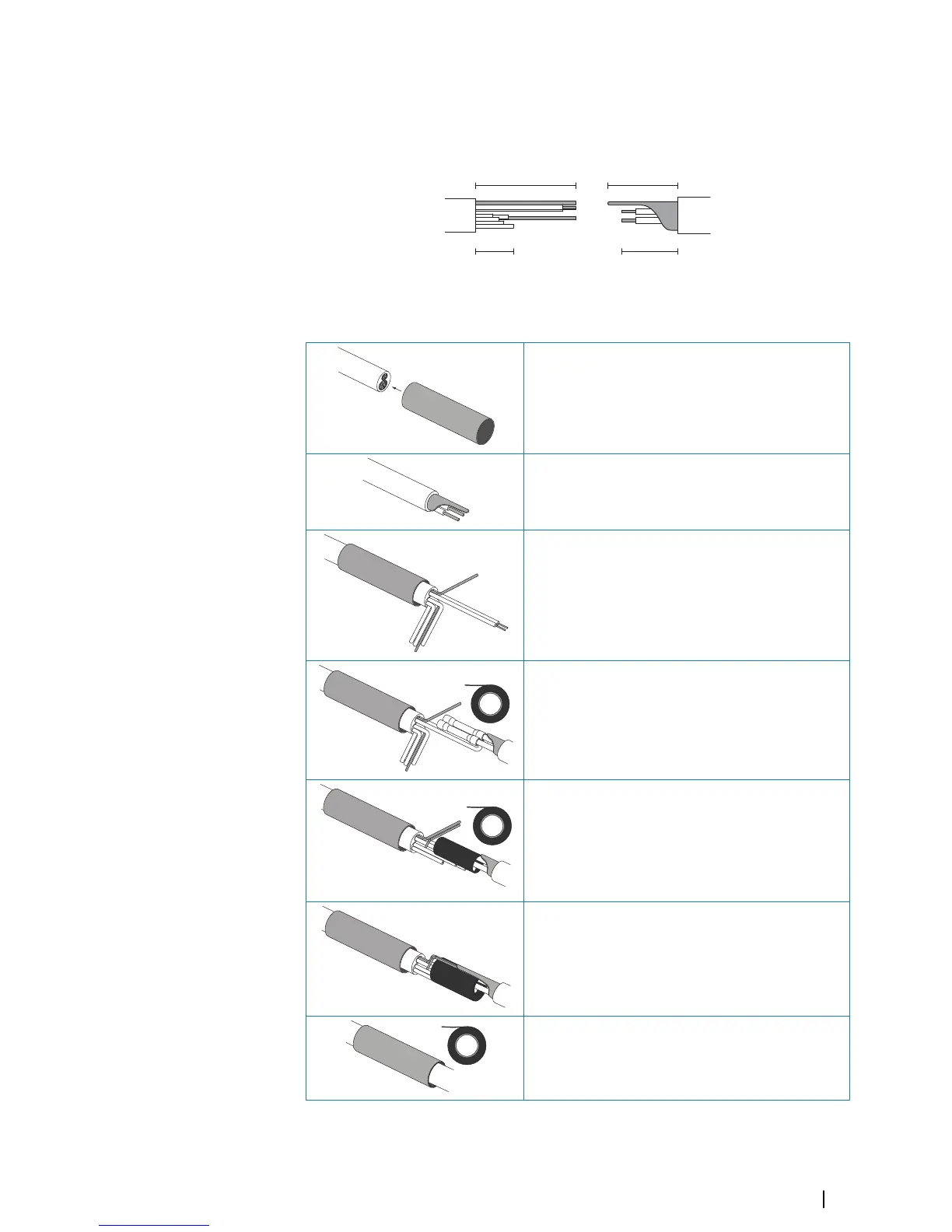

Junction D and G - multicore to 2 wire junction

Note: The terminal block supplied with the junction box shall not be used.

Dimensions:

20 mm

60 mm

X mm

Cut the unused wires in the multicore cable in different lengths to avoid short-circuiting

wires.

Step by step instructions:

• Slide the provided braided shield sleeve over one of

the cables

• Remove the outer insulation of the 2-wire cable

• Push back the cable´s braided shield

• Remove insulation from the conductors

• Remove the outer insulation of the multicore cable

• Remove the aluminum foil that surrounds the wires

• Separate the wires to be used from the other wires

• Remove insulation from the conductors to be used

• Connect the conductors to be used with crimp

joiners using a professional crimp tool

• Seal the joints with self-vulcanizing tape

• Separate the shield wires from the other wires in the

multicore cable

• Cut the unused wires in the multicore cable in

different lengths to avoid short-circuiting wires

• Apply self-vulcanizing tape over the cut cables and

the joint

• Pull the braided shield and shield wires over the

joint

• Pull the provided braided shield sleeve over the

joint

• Seal the joint with self-vulcanizing tape
