Junction details
Junction E - 2 wire to 2 wire junction
Ú
Note: The terminal block supplied with the junction box shall not be used.
Dimensions:

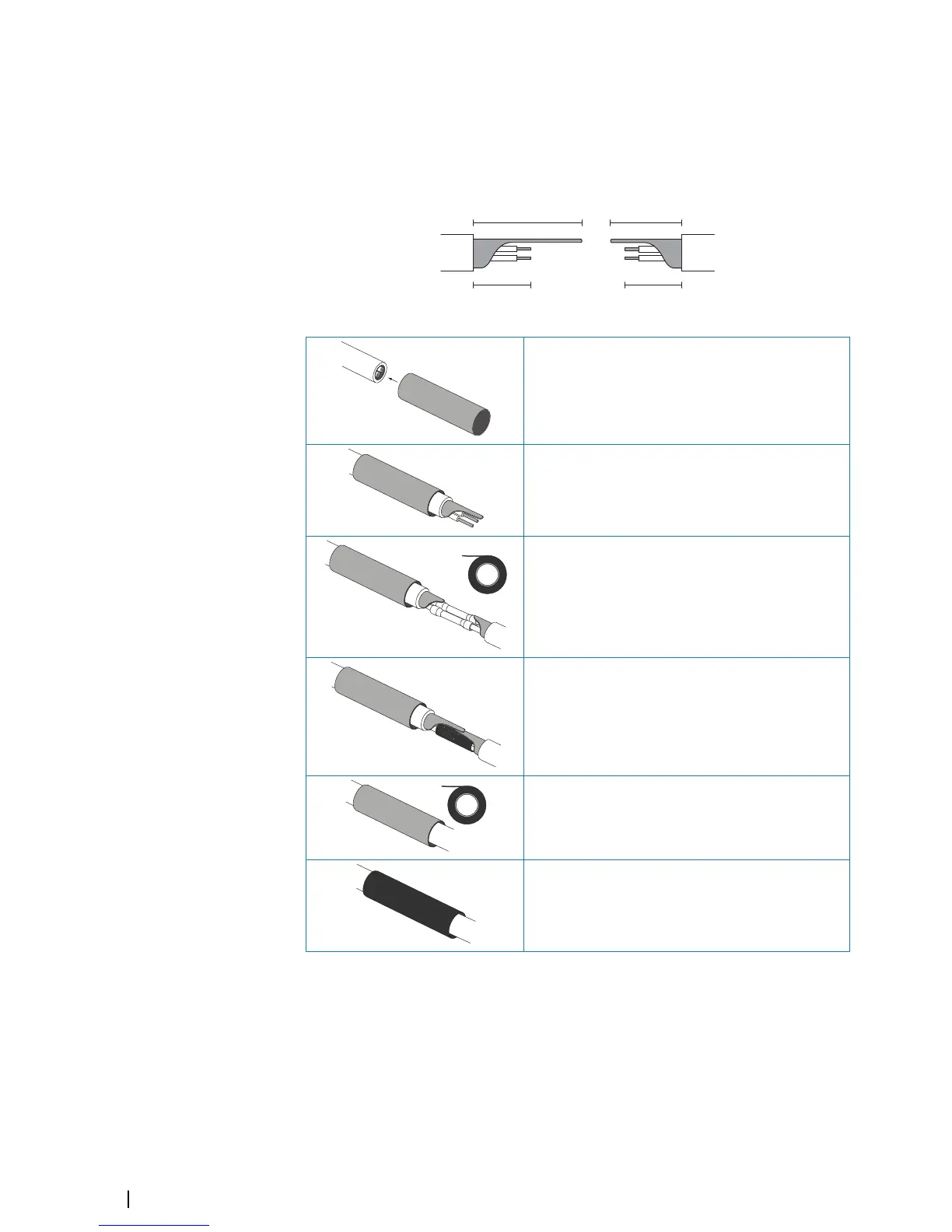

Step by step instructions:
• Slide the provided braided shield sleeve over one of
the cables
• Remove the outer insulation of the cable according
to dimensions
• Push back the cable´s braided shield
• Remove insulation from the conductors
• Connect the conductors with crimp joiners using a
professional crimp tool
• Seal the joint with self-vulcanizing tape
• Pull the braided shields over the joint
• Pull the provided braided shield sleeve over the
joint
• Seal the joint with self-vulcanizing tape
• The joint is now ready to be sealed in the junction
box. Refer to "Junction box assembly" on page 32
