Singer XL-6000 - Specifying Needle Entry Points (d, e, f); Specifying Point d; Specifying Point e; Specifying Point f

86
1. Change position of
embroidery frame.
2. Press the LCD Screen to
position the frame and establish
the needle entry points “d” and
“e” on the Y axis Vertical line
and “f” on the X axis horizontal
line.
1
Touch screen at
upper part of vertical line.
This will move embroi-
dery frame.
Press needle position direction
arrows so that needle point is
directly above Y axis vertical line.
For each needle entry point, be
sure to turn handwheel to lower
needle to verify that needle
point is directly above Y axis
vertical line.
Once needle entry point
is correctly specified on
the Y axis vertical line,
press position memory
[1] for first point
324
1
Touch screen at lower
part of vertical line.
This will move embroi-
dery frame.
Press needle position direction
arrows so that needle point is
directly above Y axis vertical
line. For each needle entry
point, be sure to turn hand-
wheel to lower needle to verify
that eedle point is directly
above Y axis vertical line.
Once needle entry point
is correctly specified on
the Y axis vertical line,
press position memory
[2] for second point
324
Turn handwheel to check
that needle is positioned
directly above Y axis
vertical line.
15

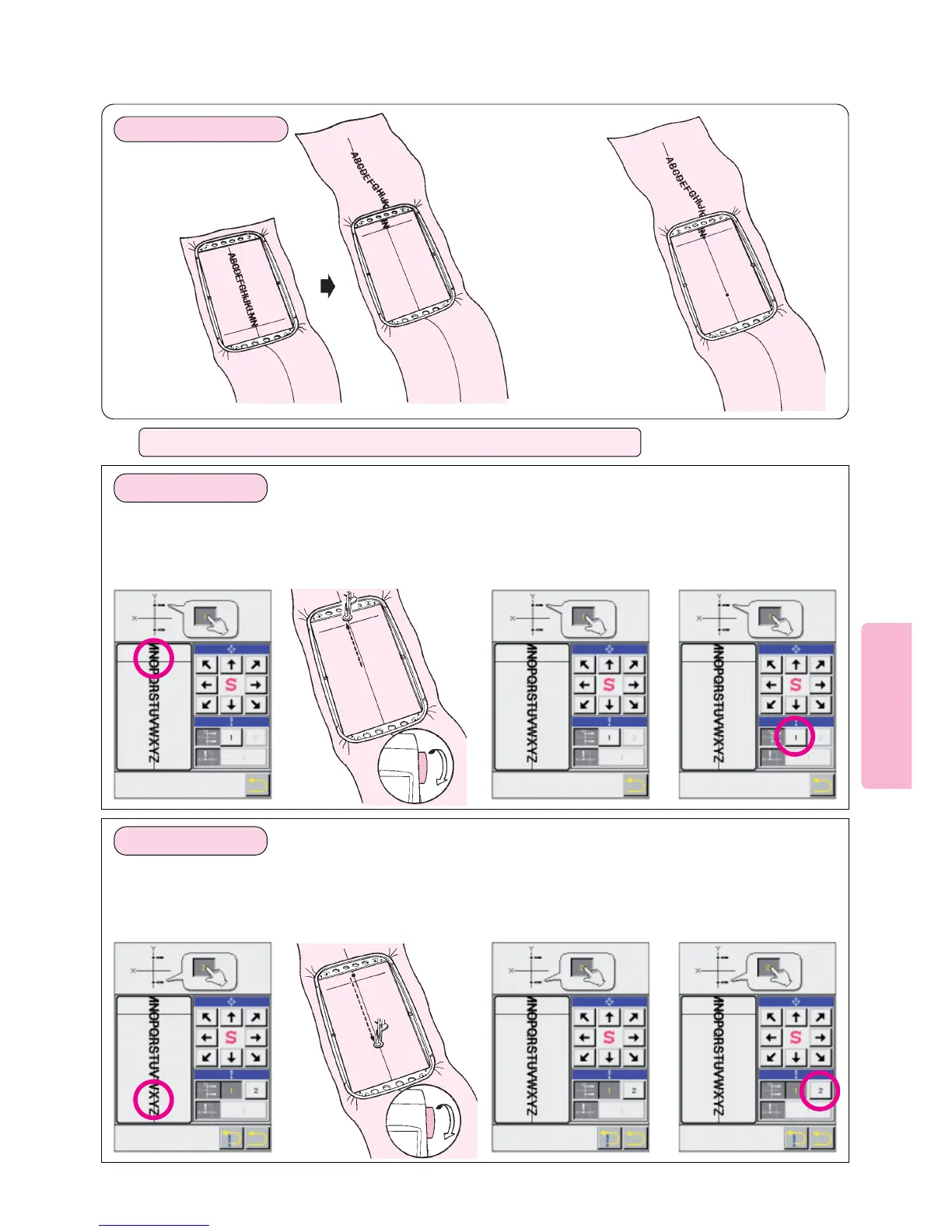

Operation of LCD screen for specifying needle entry points “d” “e”and “f”
1. Specifying point “d”
2. Specifying point “e”
d
e
Preparation of fabric
d
e
f
Turn handwheel to check
that needle is positioned
directly above Y axis vertical
line.
* Points (Y axis vertical
line) must be at least 5
cm (2 inches] apart
