Sinoboom 0607SE - A-7 Inspect the Battery Level

© Jan 2022 5-8 0607SE Maintenance Manual
MAINTENANCE

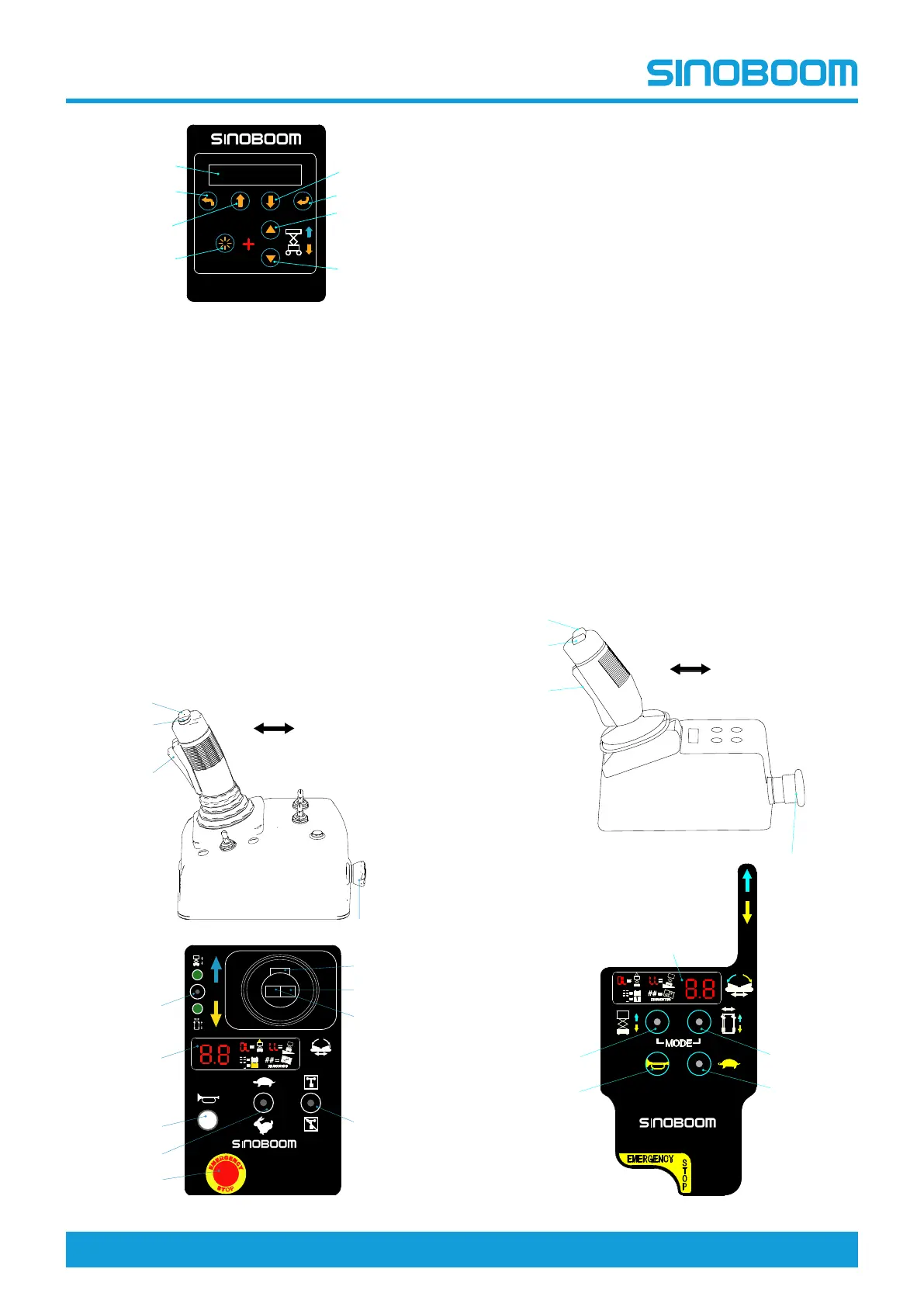

Figure 5-3 Ground controller
1.Fuse
9. Back key
2. Emergency stop button 10.Page up key
3. Off position
11. Enable switch
4. Platform control
12. Platform down
switch
5. Key switch
(Ground/Platform control
select switch)
13. Platform up switch
6.Ground control
14. Enter key
7. Controller
15. Page down key
8. Display screen
Figure 5-4 Platform controller (SINOBOOM)
1. Steer right
8. Emergency stop
button
2. Steer left
9. Display screen
(to display battery
level and fault
codes)
3. Enable switch
10. Lift, drive &
steer function
enable switch
4. Platform up
11. Horn
5. Platform down
12. Indoor/outdoor
mode select switch
6. Drive forward
13. Drive high/low
speed select switch
7. Drive reverse
Note: Refer to the Fault Diagnosis
section of Maintenance Manual for the
fault codes displayed on the screen.
