REPAIR
DTC-K500 Control System
UNSAFE OPERATION HAZARD
• All operations in this section must
be performed by qualified
personnel who have been
professionally trained and
authorized by Sinoboom,
otherwise the consequences will
be at your own risk.
• The machine has been
commissioned before delivery. It’s
forbidden to modify the system
settings and update the program
without authorization from
Sinoboom.
• Incorrect operation may result in
death, serious injury or machine
damage.
NOTICE
PCU, ECU, sensors, etc. are precisely adjusted and
protected before delivery. Therefore, personnel who
have not been professionally trained and authorized
by Sinoboom cannot disassemble their housings,
otherwise moisture and dust will enter the internal
mechanism and normal operation will not be
guaranteed.
This section is applicable to DTC-K500 system with the
software version of A4.

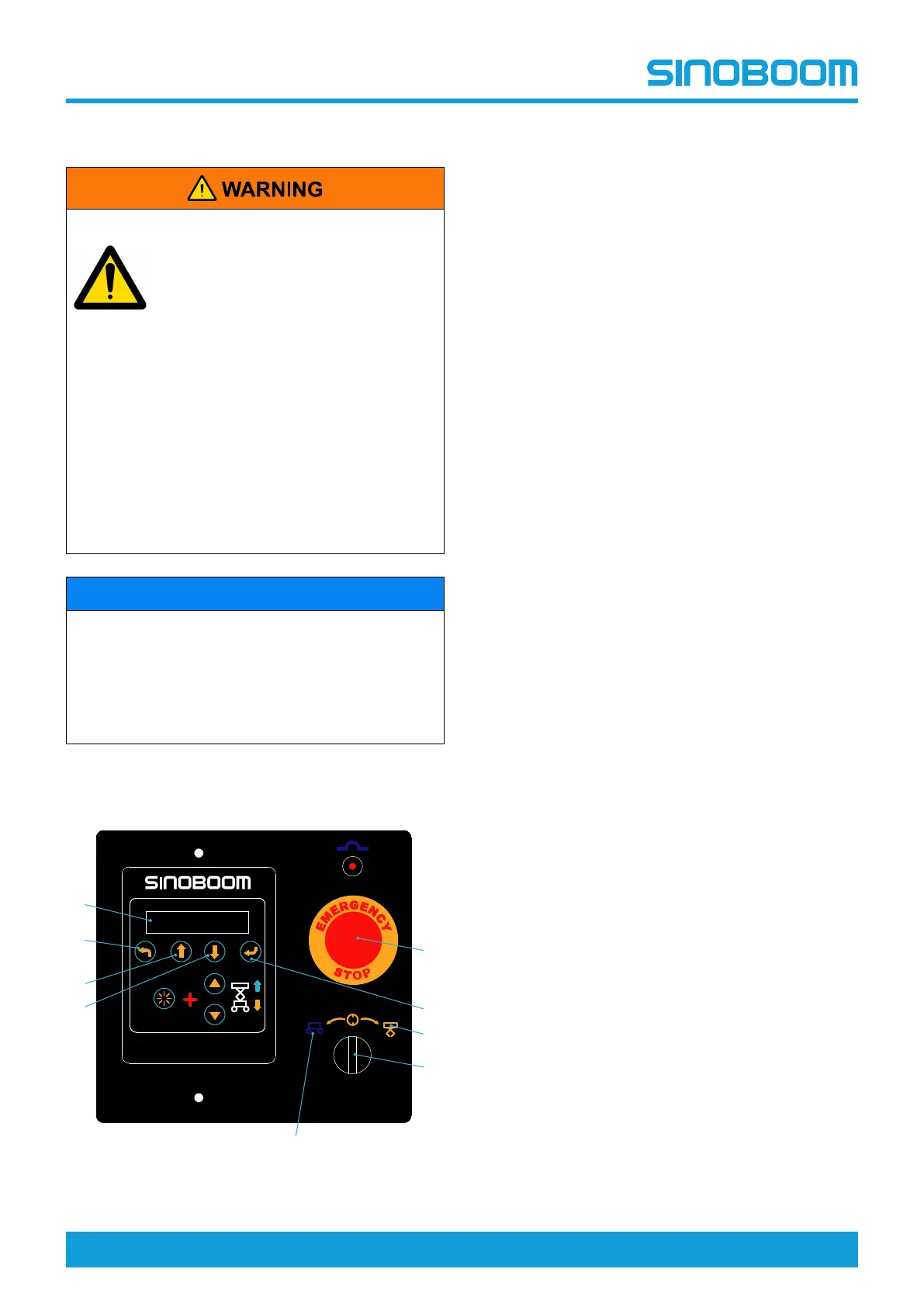

ECU main interface
Figure 6-27
1. Emergency stop button 6. PgDn key
2. Enter key 7. PgUp key
3. Platform control position 8. Esc key
4.Key switch
(ground/platform control
select switch)
9. Screen
5. Ground control position
Pull out the emergency stop button to “ON” position and
turn the key switch to Ground control position. Press
the Enter key on the ECU panel while powering up the
machine to enter the ECU menu selection mode. Select
and enter different function interfaces through the PgUp
key and PgDn key. The system interface is described in
the figure below:
To Next Page
