6 REPAIR
Repair procedures must be
performed by qualified, trained and
competent personnel in a properly
equipped workshop.
Replace or repair damaged
components immediately. Do not
operate the machine with known
damaged components.
Be sure the machine is properly
maintained before operating it.
Before starting the machine:
• Read, understand and follow all
safety rules and instructions in
this manual.
• Read all procedures and
specifications completely.
• Unless otherwise specified,
perform all maintenance
procedures per the following:
– Park the machine on flat, level
and firm ground.
– Be sure the platform is fully
retracted.
– Turn the key switch to the
“OFF” position and remove the
key.
– Chock all wheels.
PLATFORM COMPONENTS
Platform Controller
ELECTRICAL SHOCK HAZARD
Be sure to disconnect the battery
from the machine and the charger
from the AC outlet before performing
this procedure. Contact with live
conductors could result in death or
serious injury.
NOTICE
Perform this procedure when the scissor arm has
been fully retracted.
1. Disconnect the external power supply. Turn the
emergency stop button on the platform controller
and ground controller to the OFF position.
2. Locate the cable connected to the bottom of the
platform controller.
3. Tag and disconnect the cable from the bottom of the
platform controller.
4. Remove the retaining screws from the platform
controller and remove the platform controller.
5. Remove the star-shaped handle, and remove the
bracket.
6. Move the platform controller and bracket away from
the platform.
Removing the Platform
1. Remove the platform controller from the platform.
Refer to Platform Controller, page 6-1
.
2. Attach the straps of a suitable crane to the platform.
3. Remove the cotter pin, washer and bolt securing
the slider #1 to the stationary end of sliding groove
at the bottom of the platform.

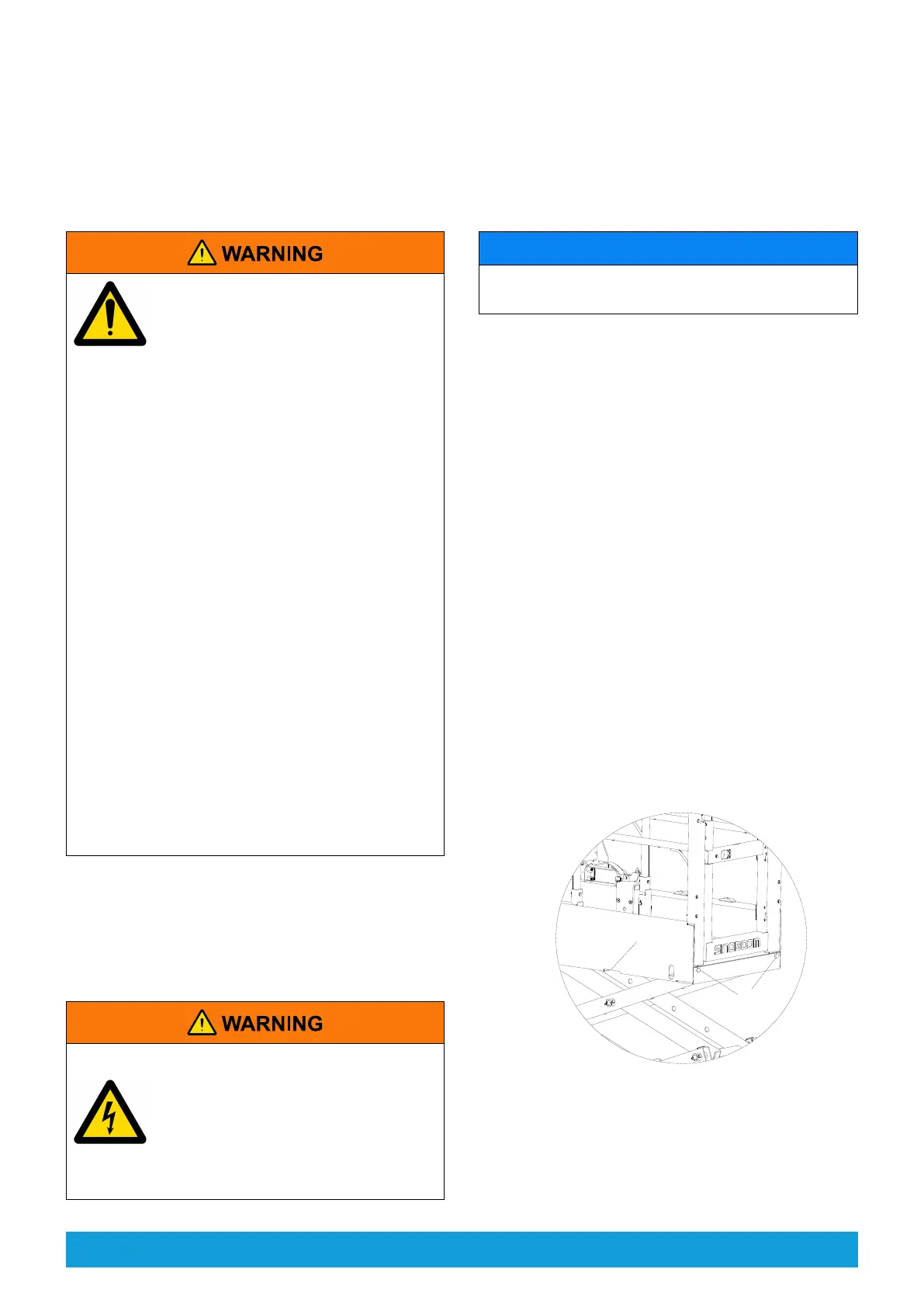

Figure 6-1
4. Raise and push the platform to move the slider to
the notch #2。
