MAINTENANCE
0607SE Maintenance Manual 5-9 © Jan 2022
Figure 5-5 Platform controller (DTC)
1. Steer right
8. Emergency stop
button
2. Steer left
9. Display screen
(to display battery
level and fault
codes)
3. Enable switch
10. Lift function
enable switch
4. Platform up
11. Horn
5. Platform down
12. Drive/steer
function enable
switch
6. Drive forward
13. Drive high/low
speed select switch
7. Drive reverse
Note: Refer to the Fault Diagnosis
section of Maintenance Manual for the
fault codes displayed on the screen.

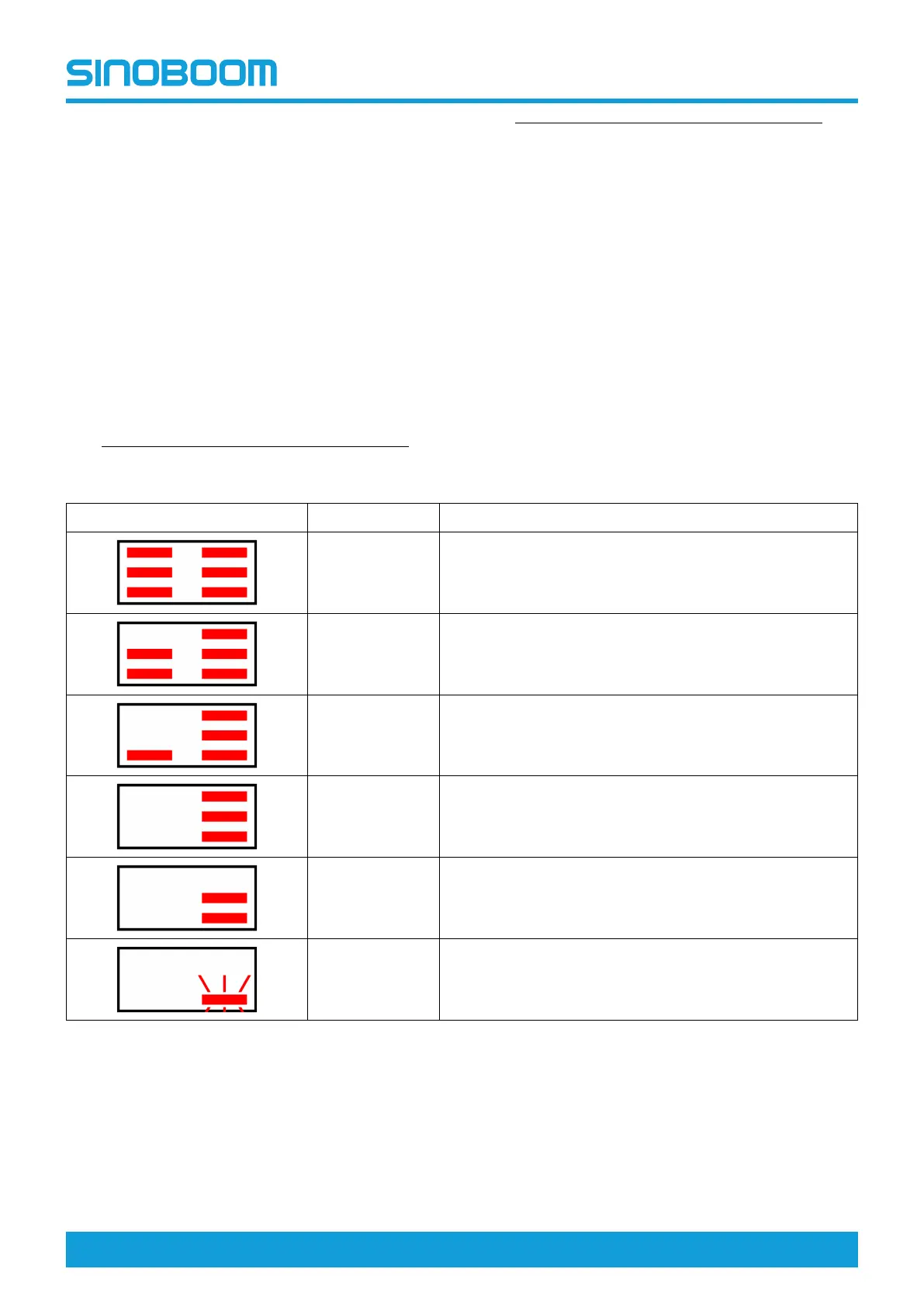

A-7 Inspect the Battery Level
The battery power level can be checked through the
platform screen.
Table 5-6
PLATFORM POWER DISPLAY POWER RATIO DESCRIPTION
90-100%
The battery has been fully charged.
70%
The battery is at 70% of its capacity.
50%
The battery is at 50% of its capacity.
30%
The battery is at 30% of its capacity.
20%
The battery level is at 20%, which is low. The battery re-
quires recharging.
10%
The battery level is at 10%, which is very low. The machine
will become slow. The battery requires recharging.
A-8 Perform Maintenance After 30
Days
Perform maintenance on a new machine after the
machine is operated for 30 days or 40 hours. After
performing the 30-day maintenance, continue
performing maintenance as scheduled.
Perform the following procedures:
• B-2 Inspect Rim ,Tire and Fasteners
To Next Page
