REPAIR
5. Using the crane, slowly lift the platform clear of the
machine.
Removing the Extension Platform
1. Remove the platform. Refer to Removing the
Platform, page 6-1.
2. Loosen the fasteners of all rails and remove the
rails.
3. Loosen the screws at the roller bracket #1 and roller
support 3# of extension platform, and remove the
roller bracket and support.
4. Loosen the screws at the roller bracket #4 and roller
support #2 of stationary platform, and remove the
roller bracket and support.
5. Raise the extension platform from both ends, and
remove the extension platform.

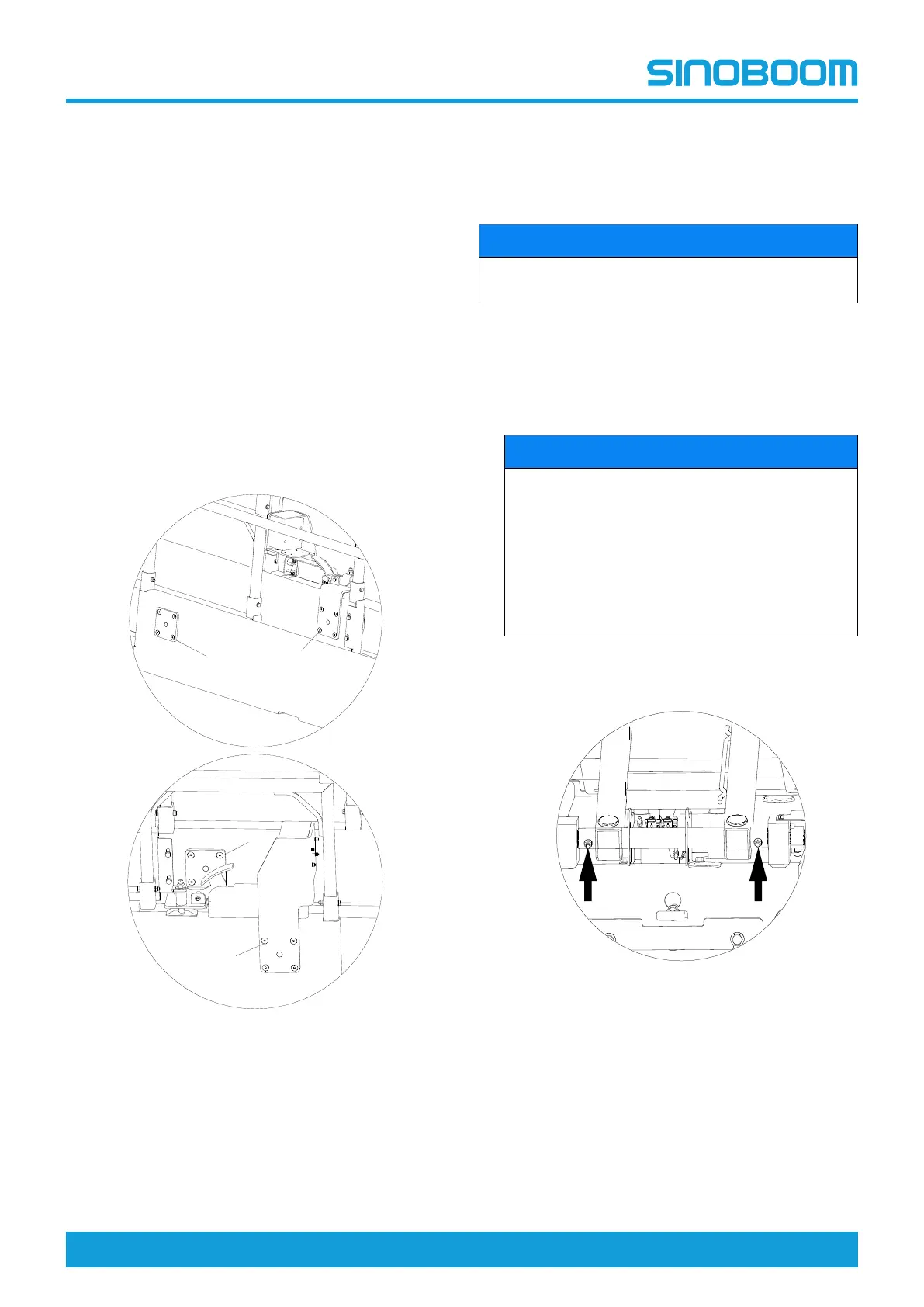

Figure 6-2
SCISSOR COMPONENTS
Scissor Assembly
NOTICE
Perform this procedure when the scissor is fully
retracted.
1. Remove the platform and extension platform. Refer
to Removing the Platform, page 6-1 and
Removing the Extension Platform, page 6-2.
2. Disconnect the hydraulic hoses and electrical wiring
connecting the scissor and the chassis.
NOTICE
Before re-installing the removed hoses and
fittings, check whether the seals on the hoses
and fittings are broken or missing; if any seal is
damaged or missing, replace the seal with a new
one, or replace the hose assembly and fittings
directly. When installing hoses and fittings,
tighten them according to the specified torque.
See Hydraulic Hose and Fitting Specifica-
tions, page 2-5.
3. Attach the scissor to a traveling scrane for support.
4. Remove the bolts securing the pivot pins.
Figure 6-3
5. Pull out the pivot pins using an auxiliary tool.
