Operation instructions
SIPOS SEVEN ECOTRON
5
Commissioning
5 Commissioning

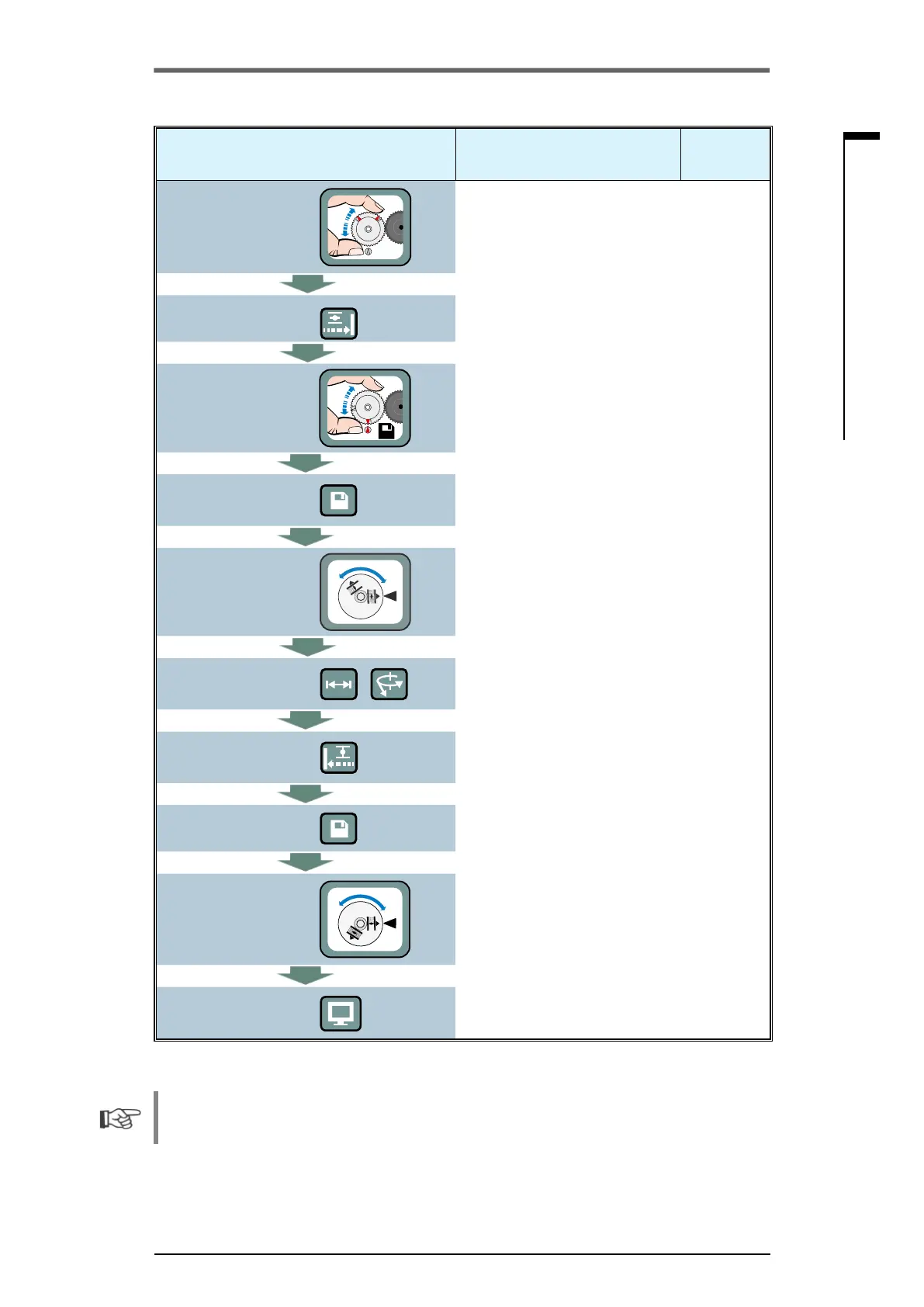

Action Explanation
For a
description,
refer to:
Turn
central wheel
to mid position
1
2
1
2
1
2
Signaling gear only:
Turn central wheel so that arrows 1
and 2 point in upward direction.
Page 38
Approach position
of rst end position
Approach position of rst end
position (here end position OPEN).
Adjust
central wheel
1
2
1
2
1
2
Signaling gear only:
Turn central wheel until arrow
points downward and the save
symbol appears in the display.
Page 39
Save position
of rst end position
Turn Drive Controller until Save
symbol starts to ash. Press Drive
Controller.
Adjust position
indicator
If mechanical position indicator is
available, check/adjust position
OPEN.
Page 40
Cut-off mode 2. Program
end position
/
Check/program cut-off mode in the
second end position; travel-
dependent or torque dependent.
Page 39
Approach position of
second end position.
Move actuator to second end
position (Here end position
CLOSED).
Save position
of second end position
Select Save symbol and
acknowledge.
Adjust position
indicator
If mechanical position indicator is
available, check/adjust position
CLOSED.
Page 40
Change over to
REMOTE control
Change to REMOTE mode in the
‘Local operation’ menu.
Page 22
You do no have to perform all settings. Depending on whether settings have already been
specied when ordering the actuator or whether the actuator was delivered mounted to the valve,
checking the settings will be sufcient.
