Siro Lasertec SL10 - The Work Chamber; Electrical

Product Description
IM Machine Name Rev.: END 20
3.3 The Work Chamber

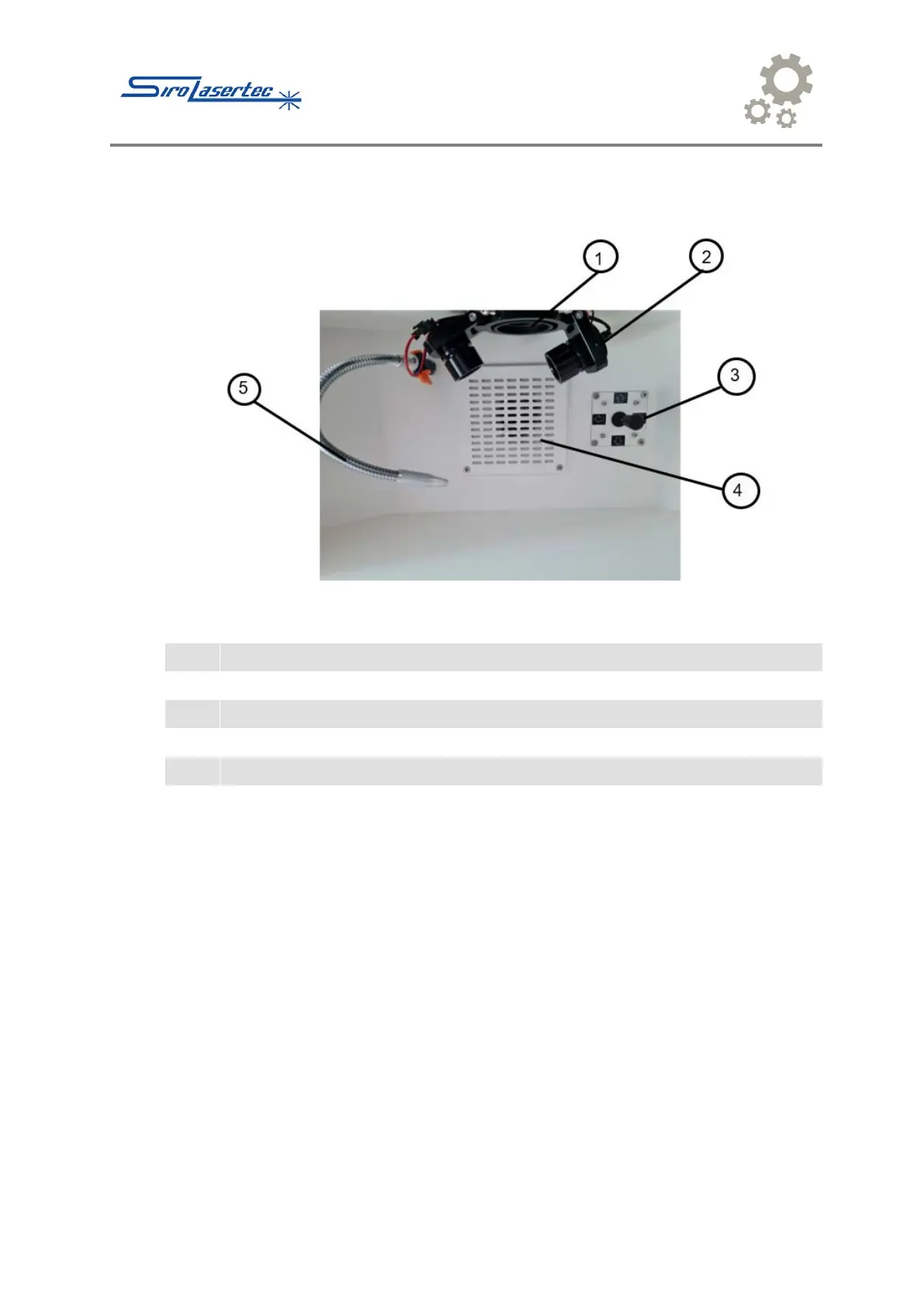

Illustration 4 Work Chamber
Item
Designation
1
Laser with focusing lens
2
Work chamber lighting (2 x)
3
Joystick
4
Filter
5
Shielding gas hose
In the center at the top, the laser beam is emitted from the protective glass protected
focusing lens (1).
The work chamber and the workpiece are illuminated by two halogen lamps (2) on the
right and the left of the discharge opening.
The air in the work chamber is extracted via a filter (3).
The shielding gas can be accurately fed by means of the flexible nozzle (4).
The parameters shown on the display can be changed with the joystick (3).
3.4 Electrical
The welding laser system is connected to the electrical energy supply via a mains
plug.
