Siro Lasertec SL10 - Laser Lamp Changes

Maintenance
IM Machine Name Rev.: END 44
Laser Lamp Changes
In order to change the laser lamp, the housing must first be opened

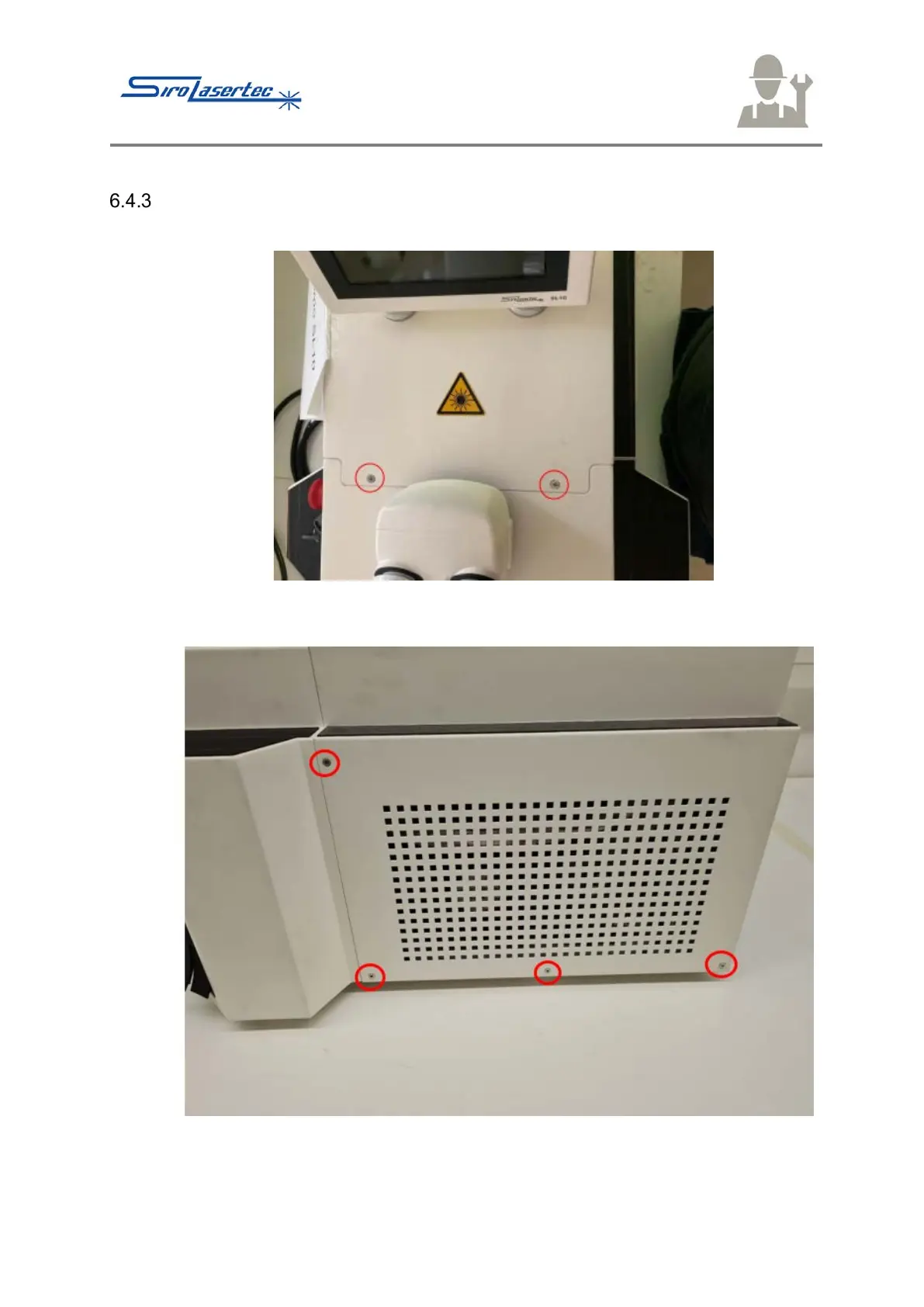

Illustration 21 Housing Screws 1
● Remove the screws – outlined in red – on the top of the cover.
Illustration 22 Housing Screws 2
● Remove the screws – outlined in red – on the two sides.
