10 Instrument Functions Sirona Dental Systems GmbH
41 63 189 D 3311
28
D 3311.201.01.10.02

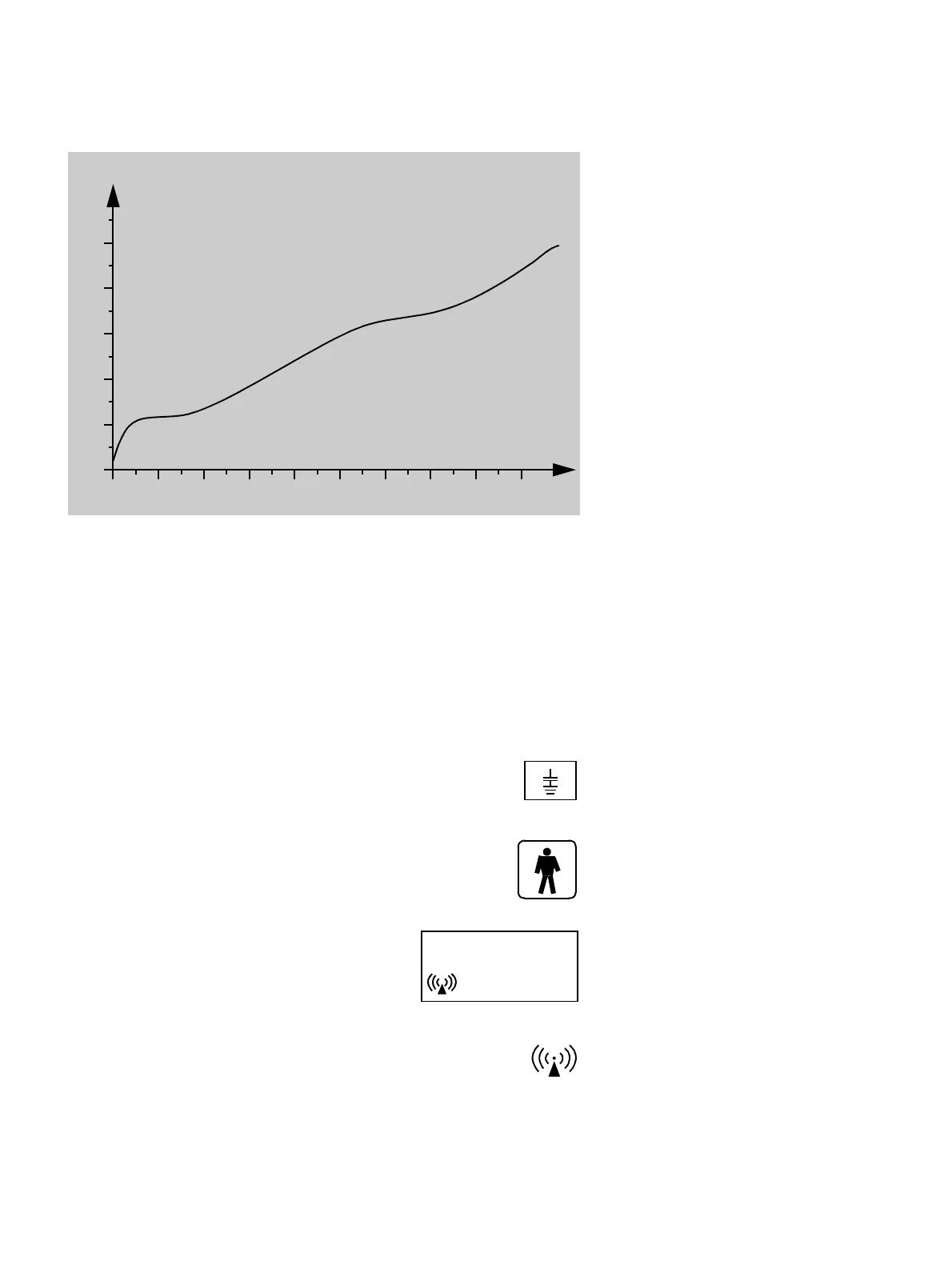

Power Curve
for cutting and coagulation
Power measured between handpiece and
protective ground wire.
Technical Data
SIROTOM electrosurgery
Maximum output voltage peak – peak
between handpiece and protective ground
wire when cutting:1500 V
Frequency of operating and alarmtone:
1200 Hz
The neutral electrode is connected to the
protective ground wire through a capacitor.
Connection for the neutral electrode.
Neutral electrode at RF in relation to
ground.
SIROTOM type BF
Short-term operation 25%
Duty time 10s
Cycle time 40s
RF frequency 1MHz
Output power max. 50W across 500 Ohm
Symbol for non-ionizing radiation
10
20
30
40
50
Watt
10
Intensity
20
30
40
50
60 70
80 90 100
R=500
Ω
PAB 25% ED 10s SD 40s
1MHz / 50W / 500 Ohm
