17
SKF Maxilube changeover valve unit
The changeover valve unit includes a solenoid valve group (4) and a control valve group (2), pressure gauges (7) and a
wall mounting plate which contains a bracket for the pump during the changing of the barrel. A Maxilube changeover valve
unit with control includes a user interface (5) and a circuit board (3).

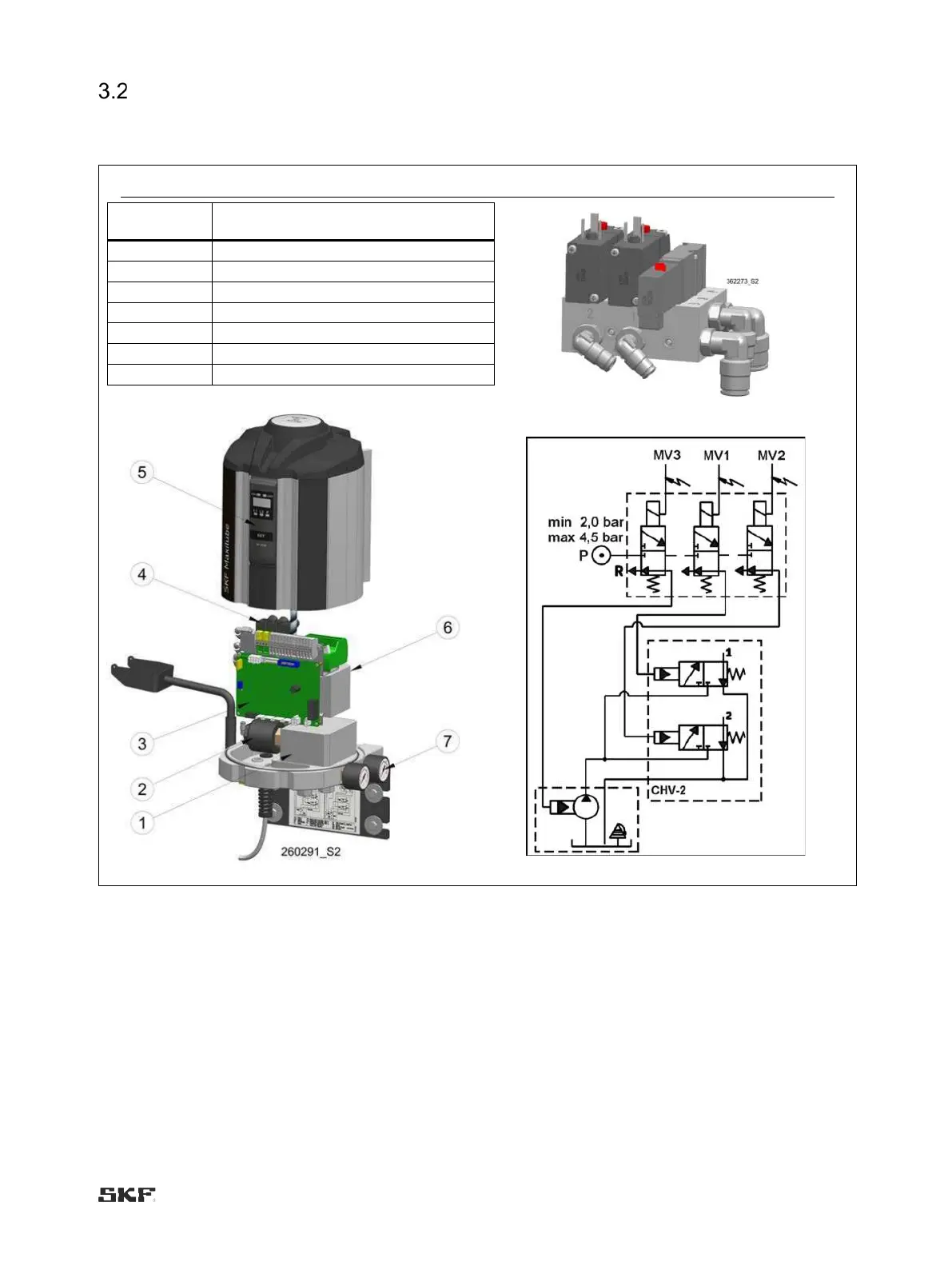

Fig. 3 Design of Maxilube and PI diagram
Position Description
1
Control valve
2
CHV-100 control cartridge (1 or 2 pcs)
3
Circuit board ST105A
4
Solenoid valve 24 V
5
User interface IF-105
6
Power supply unit 115/230 VAC
7
Pressure gauge
MV2 MV1
P
R
MV3
