39
Connections
Terminal Signal
XC: 15 RxD, RS232C
XC: 16 TxD, RS232C
XC: 14 0V, RS232C
Connect X11 & X14 short-circuit pieces or jumpers (when RS-422 used)
XC: 20 RxD+, RS422 (Kytkentäristiin TxD+)
XC: 18 RxD- ,RS422 (Kytkentäristiin TxD-)
XC: 19 TxD+, RS422 (Kytkentäristiin RxD+)
XC: 17 TxD- , RS422 (Kytkentäristiin RxD-)

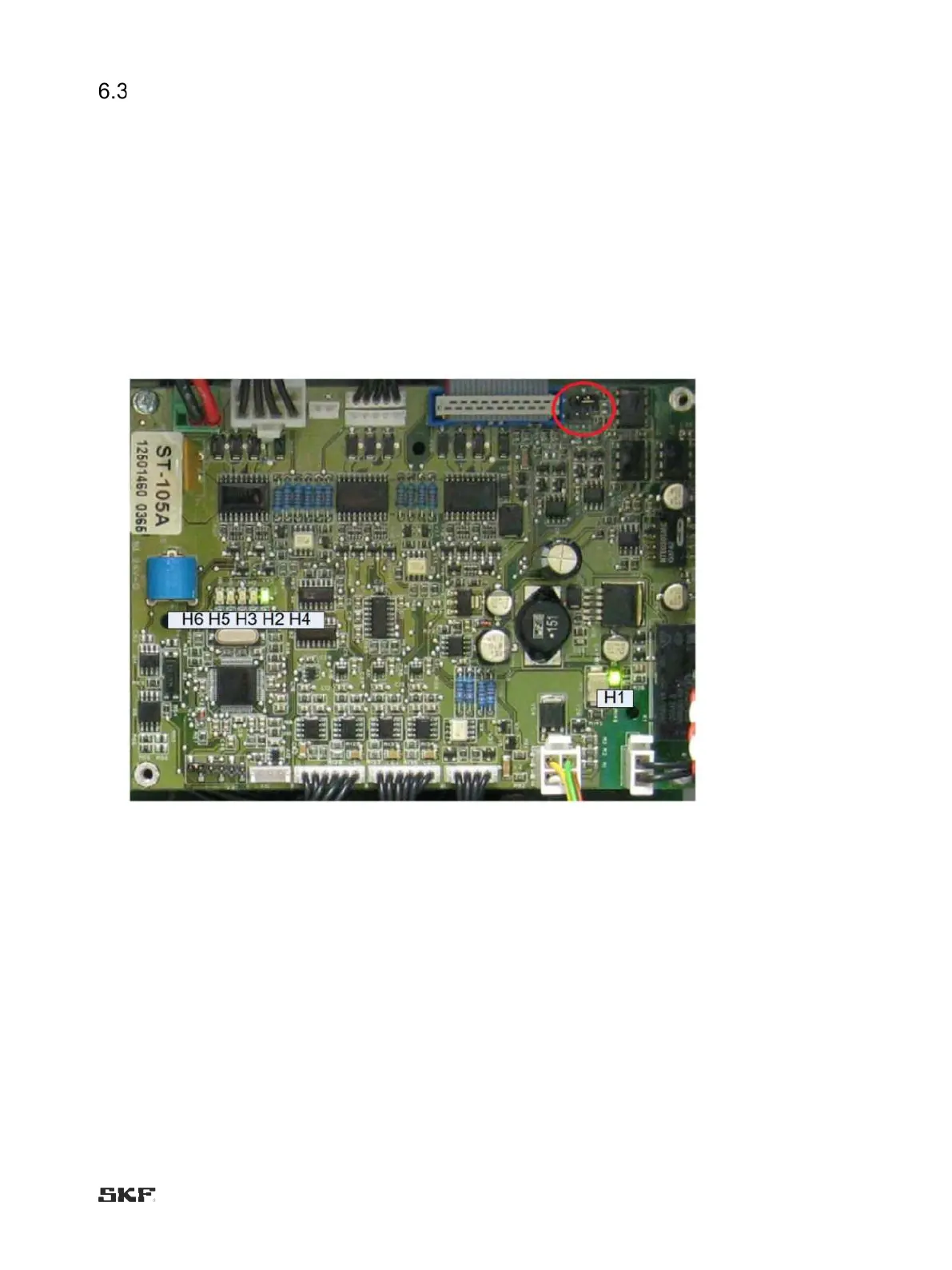

Figure 11: X11 & X14 short-circuit pieces or jumpers
