MAINTENANCE PROCEDURES
mmo2008-001-010_a
TYPICAL

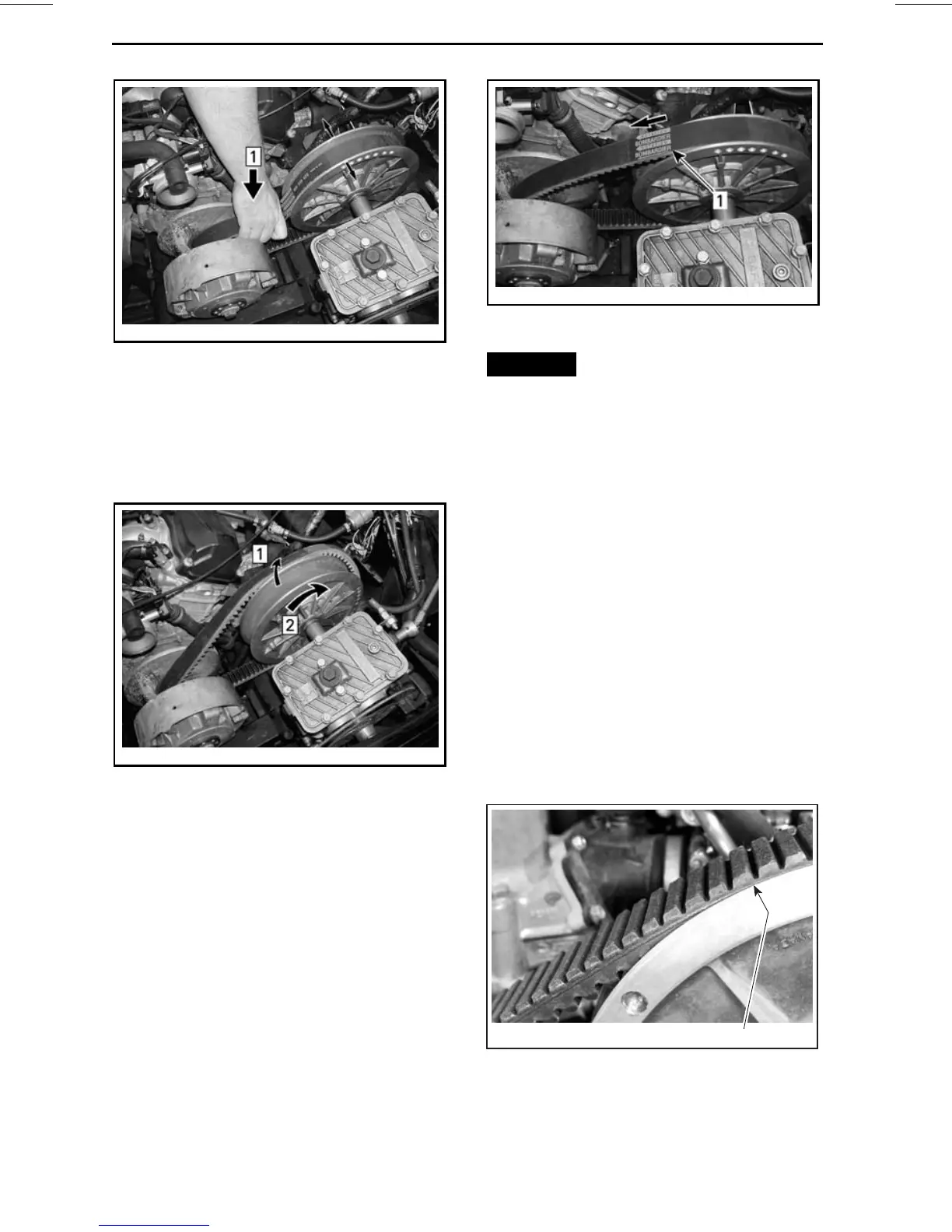

Step 1: Push on drive belt
Release parking brake.
Slipthebeltoverthetopedgeofthe
sliding half while turning driven pulley,
as shown.
mmo2008-001-011_a
TYPICAL
Step 1: Slip the belt over the top edge of the
sliding half
Step 2: Turn driven pulley at the same time
Remove drive belt.
Drive Belt Installation
To install the drive belt, reverse the
removal procedure, however pay at-
tention to the following.
The maximum drive belt life span is
obtained when belt is installed with ar-
rows in the direction of rotation
.
mmo2008-001-012_a
TYPICAL
1. Arrow pointing at the front of vehicle
NOTICE
Do not force or use tools
to pry the belt into place, as this
could cut or break the cords in the
belt.
Clean sheaves of both pulleys using
PULLEY FLANGE CLEANER (P/N 413
711 809).
DriveBeltHeightAdjustment
To obtain maximum vehicle perfor-
mance and drive belt longevity, drive
belt height adjustment must be per-
formed every time a new drive belt is
installed.
NOTE: If correct adjustment is
unattainable, contact an authorized
Ski-Doo dealer.
The drive belt cord should be flushwith
driven pulley edge. Adjust as required.
1
A02D1UA
TYPICAL
1. Flush
