MAINTENANCE PROCEDURES
TRACK ADJUSTMENT
SPECIFICATION
TRACK
DEFLECTION
SETTING
40 mm to 50 mm
(1-9/16 in to 1 in)
TRACK LOAD
READING
7.3 kg (16 lb)
11. If load reading is not in accordance
with the specification, adjust track
tension. Refer to
TRACK TEN-
SION ADJUSTMENT
.
NOTICE
Toomuchtensionwill
result in power loss and excessive
stresse on suspension components.

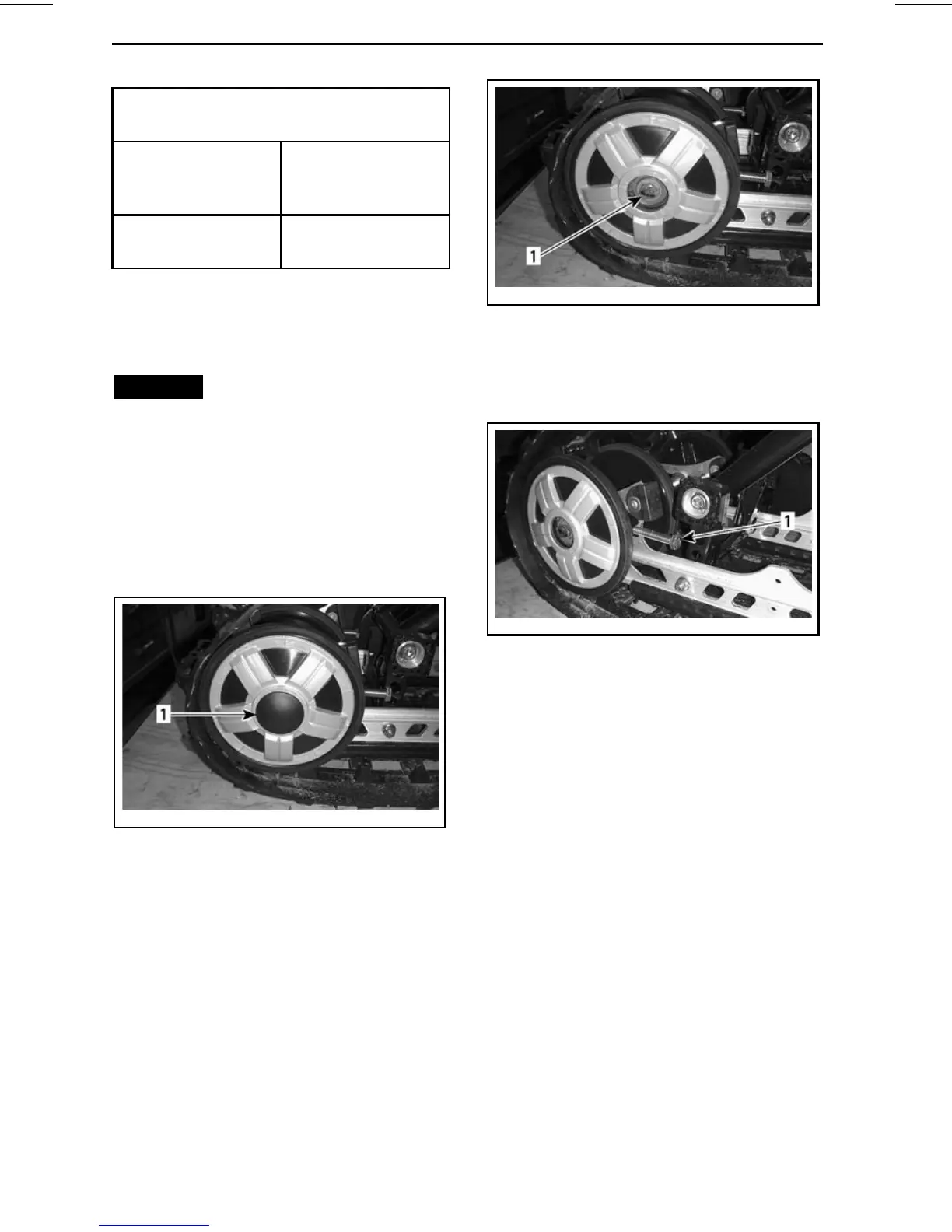

Track Tension Adjustment
1. Remove the tether cord cap from
engine cutout switch.
2. Remove rear wheel caps (if so
equipped).
mmr2008-048-007_a
1. RH rear idler wheel cap
3. Loosen the rear idler wheel retain-
ing bolts.
mmr2008-048-008_a
1. RH rear idler wheel bolt
4. Tighten or loosen both adjustment
screws to increase or decrease
track tension.
mmr2008-048-009_a
1. RH adjustment screw
5. If correct tension is unattainable,
contact an authorized Ski-Doo
dealer.
6. Retighten retaining bolts
to 48 N•m ± 6 N•m
(35lbf•ft±4lbf•ft).
7. Check track alignment as described
below.
76
