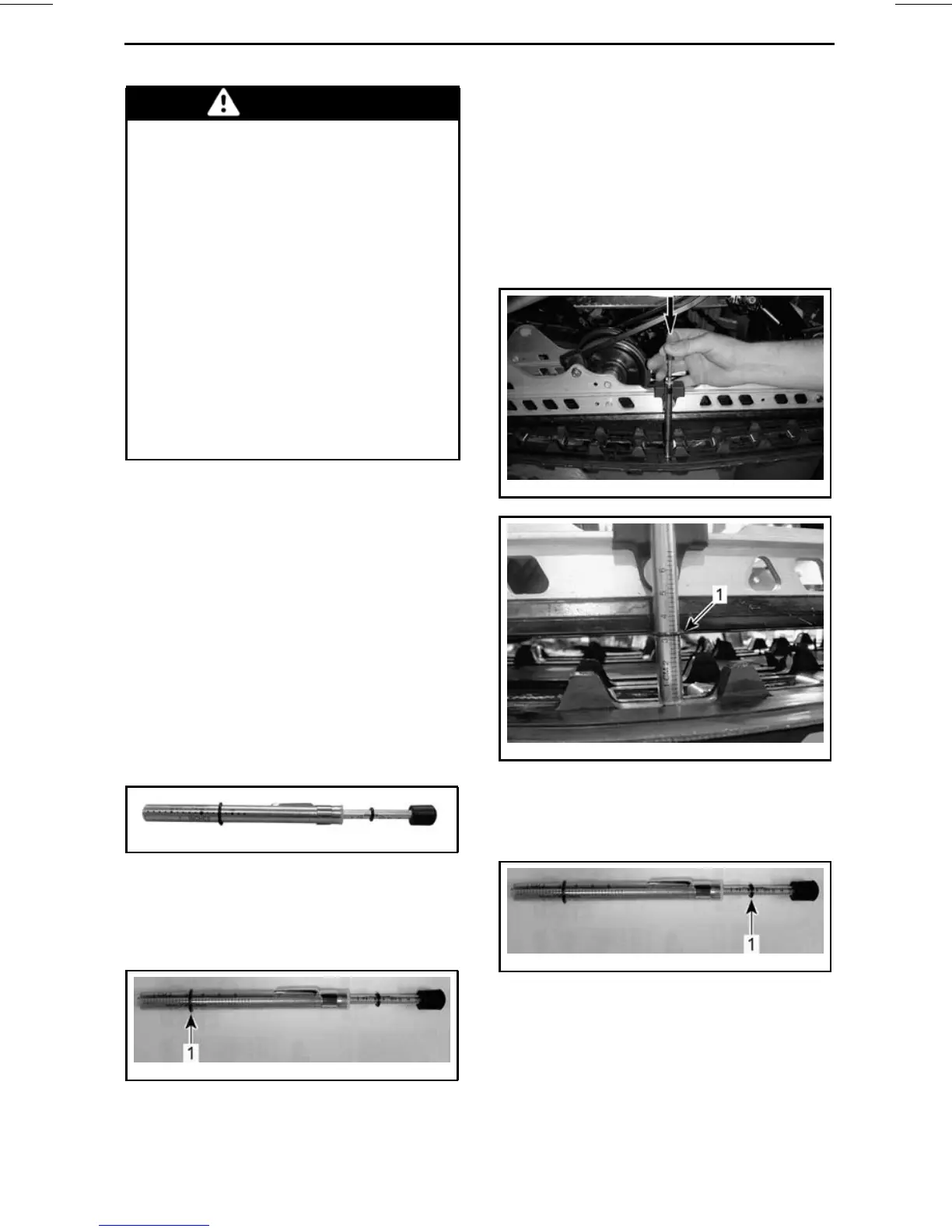

MAINTENANCE PROCEDURES
WARNING
To prevent serious injury to indi-
viduals near the snowmobile:
– NEVER stand behind or near a
moving track.
– Always use a wide-base snow-
mobile stand with a rear deflec-
tor panel.
– When the track is raised off the
ground, only run it at the lowest
possible speed.
Centrifugal force could cause de-
bris, damaged or loose studs,
pieces of torn track, or an en-
tire severed track to be violently
thrown backwards out of the tun-
nel with tremendous force.
Track Tension Verification
NOTE: Ride the snowmobile in snow
about 15 to 20 minutes prior to adjust-
ing track tension.
1. Remove tether cord cap from en-
gine cutout switch.
2. Lift rear of vehicle and support it off
the ground.
3. Allow rear suspension to fully ex-
tend.
4. Use the TENSIOMETER (P/N 414
348 200).
414348200
5. Set deflection be-
tween 40 mm to 50 mm
(1-9/16 in to 1 in) and using
bottom O-ring.
mmr2009-133-003_b
DEFLECTION SETTING
1. Bottom O-ring
6. Place upper O-ring to 0 kgf (0 lbf).
7. Position the tensiometer on track,
halfway between front and rear idler
wheels.
8. Push the tensiometer downwards
until bottom O-ring (deflection) be
aligned with the bottom of slider
shoe.
mmr2009-133-001_a
mmr2009-133-002_a
1. Deflection O-ring aligned with slider shoe
9. Read load recorded by the upper
O-ring on the tensiometer.
mmr2009-133-003_a
LOAD READING
1. Upper O-ring
10. Load reading must be as per the
following table.
_______________
75
