BlueControl Insect
38 Technical User Guide
Activate MultiStep 1.
Check that the swivel shutter in the chimney opens completely.
When the shutter is approx 15 % open, the MultiStep 1 fan
must start at full speed.
Check that the fan sucks air out of the house (e.g., by means of
a smoke test).
Deactivate MultiStep 1.
Check that the swivel shutter in the chimney closes again.
When the shutter is less than approx. 15% open, the fan must
stop.
Repeat the above steps for every MultiStep unit.
10.2.1.4 Testing relay functions
The test is to show whether the systems can start and stop. The systems are tested in the same way; each sys-
tem must be checked individually.

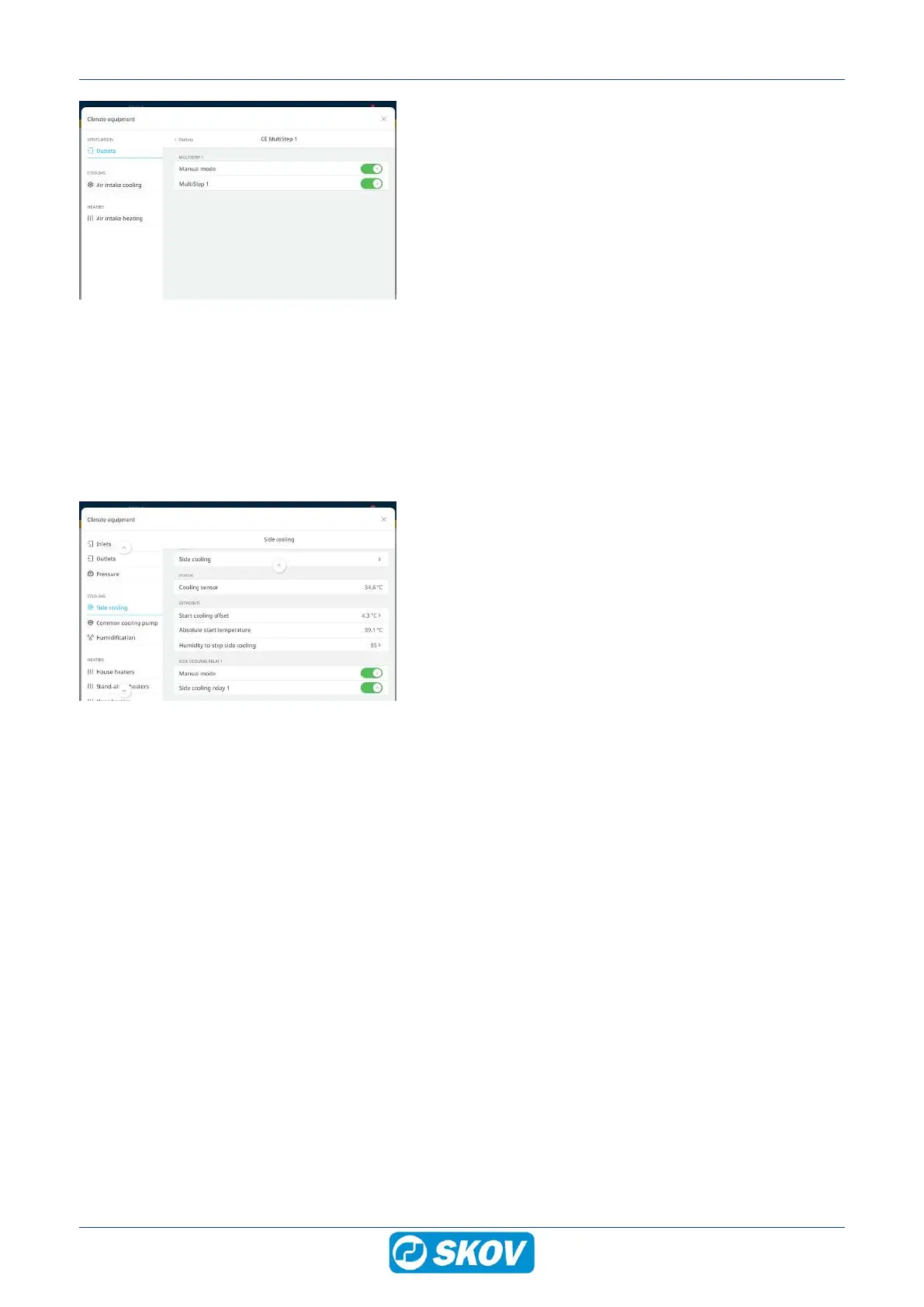

Then select Climate equipment card | and for instance Side cooling and activate Manual mode.
Activate the relay for side cooling.
Check that the system (cooling) is on.
Deactivate the relay for side cooling.
Check that the system (cooling) is off.
Heating
• Check that the unit which you activate in the controller is the unit intended for the house.
Relay heating
• Check the direction of rotation of the fan in the heating units.
• Check that the heating system can start and stop.
0-10 V heating
• Check that the shunt valve can open and close and find a rest position, e.g., 50%.
• Check that the minimum and maximum voltage is suited for the relevant shunt.
• To test heating systems, set 0% first and then 100% to check that the heat source can stop the heat supply
and can supply heat continuously.
Stir fan
• Check that the ventilation can start and stop.
10.2.2 Testing auxiliary functions
10.2.2.1 Testing auxiliary sensor
This section is only relevant to livestock houses where auxiliary sensors are installed.
Check that the current voltage displayed corresponds to what you can measure on the sensor or the connection
terminals with a multimeter.
