23
SJ12 E, SJ16 E, SJ20 E
243762ABA
Manual storage box Section 3 – Familiarization

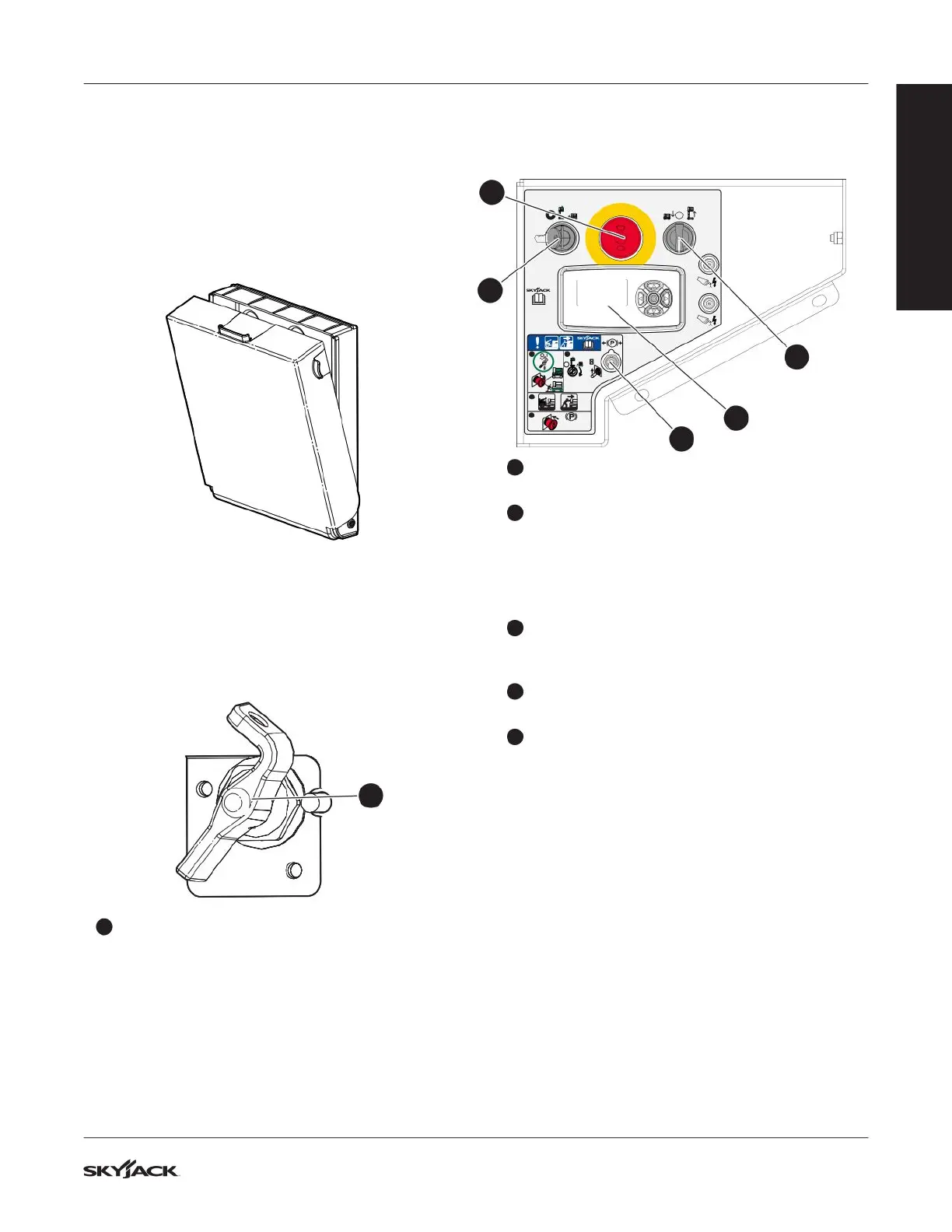

3.2 Manual storage box
The manual storage box is weather-resistant. It
contains the operation manual and other important
documents. You must keep the operation manual and
other important documents related to the MEWP in
this box. Refer to Section 3.1 for the location of the
manual storage box.
3.3 Control functions
3.3-1 Main power disconnect switch
Refer to Section 3.1 for the location of the main power
disconnect switch.
1
1
Main power disconnect: This switch
disconnects power to all control circuits when it
is in the off position. The switch must be in the on
position to operate the MEWP. The switch must
be in the off position when you transport the
MEWP or put it in storage.
3.3-2 Base control console
Refer to Section 3.1 for the location of the base control
console.
TM
230744ACZZ
1
2
TM
+
3
4
3 sec
2
Lower/neutral/raise: This switch controls the
platform raise or lower function.
3
Off/platform/base key: With this three-way
switch, you can:
▪
Turn off the power to the MEWP controls.
▪
Energize the base controls.
▪
Energize the platform controls.
4
Emergency-stop: This button disconnects
power to the control circuit. Pull it to connect the
power again.
5
Brake release: This switch controls the brake
release function to tow the MEWP.
6
Display Panel: This display panel shows
the operation and parameter information.
Examples are the battery state of charge, hours
of operation, machine speed, and diagnostic
information.
FAMILIARIZATION
5
6
3
4
2
