Section 3 – Familiarization
General components
3.5-3 Battery charger
The charger is at the rear of the base. Refer to
Section 6.7 for battery charging instructions.

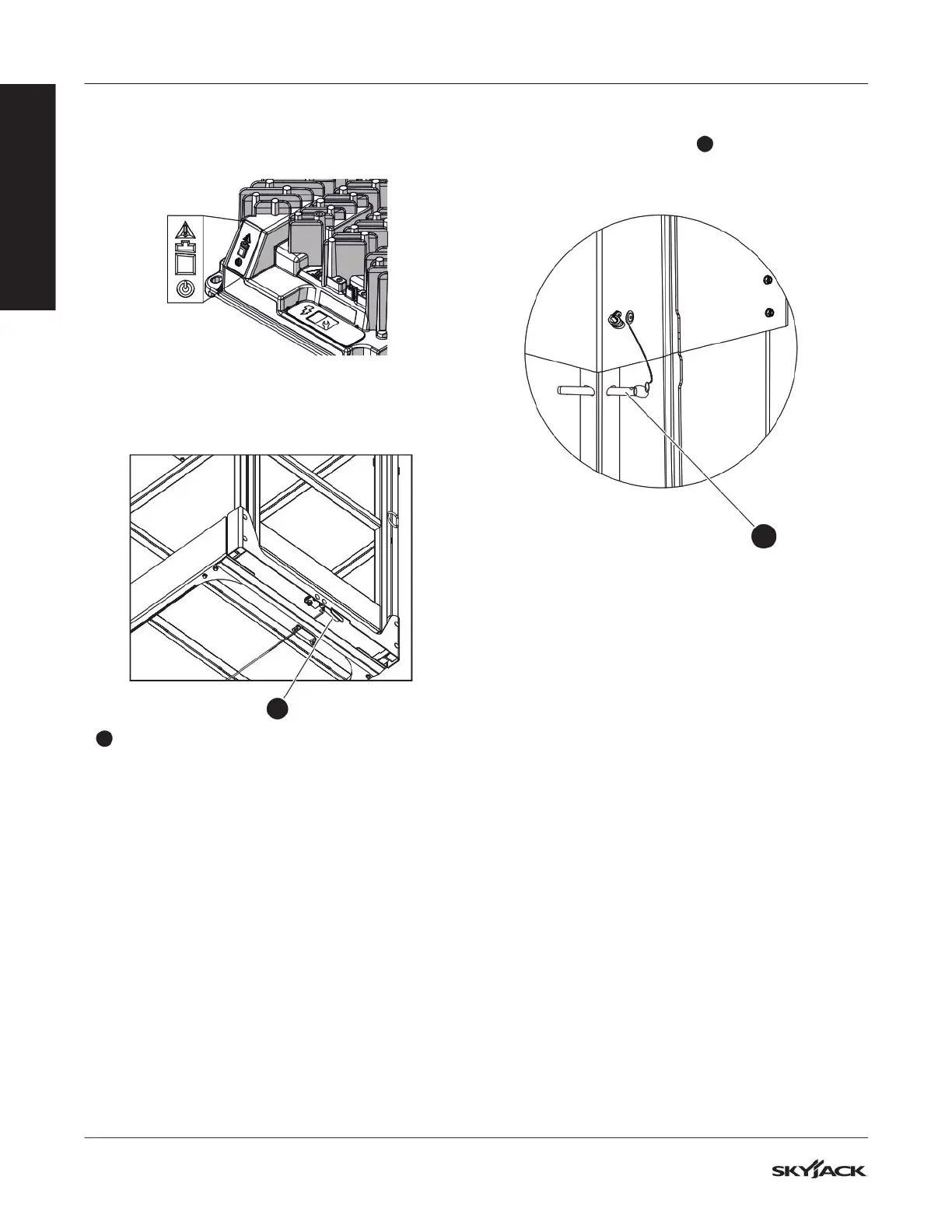

3.5-4 Platform maintenance lock
The platform has a locking mechanism located below
the platform.
1
1
Platform maintenance lock: When it is
engaged, you can move the platform to the
maintenance position and open the hydraulic/
electrical compartment. When the platform is in
the maintenance position, all MEWP functions
are disabled.
3.5-5 Service pin
You can use the service pin
2
when yo do service
or maintenance on the MEWP. Refer to Section 6.8 for
the procedure on how to use the service pin.
