Function tests Section 4 – Inspections Before Operation
4.3-19 Do a test of the wind rating control
console (optional equipment)
WARNING
Tip-over hazard. Do not move MEWP outdoors.
Wind has an effect on how stable the MEWP is. If
you do not obey, there is a risk of death, serious
injury, and/or MEWP damage.
1. Make sure the MEWP is indoor or in an
environment with no wind.
WARNING
Look for overhead obstructions or other possible
hazards around the MEWP when you raise the
platform. Do not lower the platform unless the area
below is clear of personnel and obstructions. If
you do not obey, there is a risk of death or serious
injury.

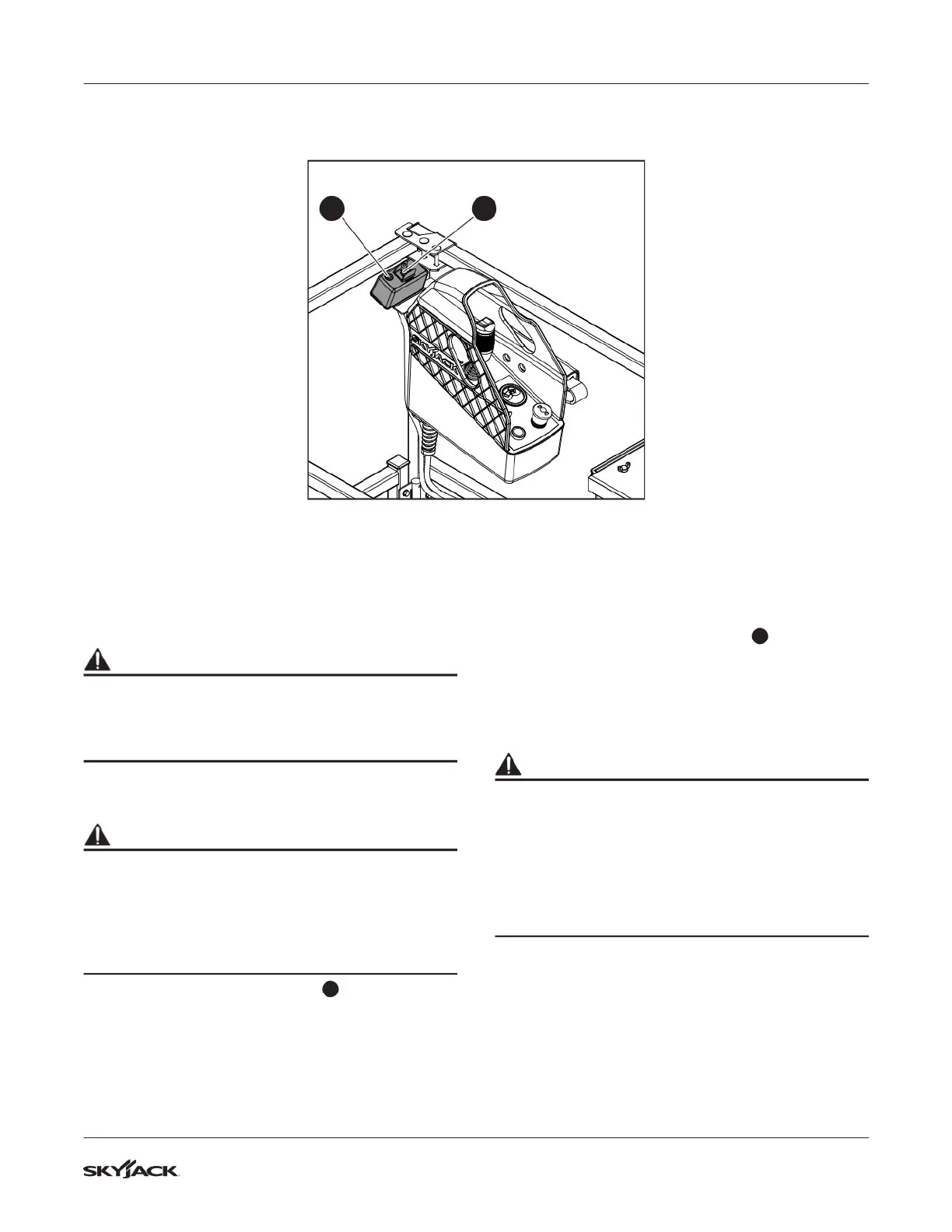

2. Move the wind rating switch
1
to the right to
select the outdoor (wind) position.
3. Raise the platform to 4.57 m (15 ft).
▪
Result: The platform rises to 3.58 m (SJ16 E)
and then stops.
▪
Result: The platform rises to 3.96 m (SJ20 E)
and then stops.
4. Move the wind rating switch to the left to select
the indoor (no wind) position.
▪
Result: The wind rating light
2
turns on.
5. Raise the platform to 4.57 m (15 ft).
6. Move the wind rating switch to the right to
select the outdoor (wind) position.
▪
Result: The alarm makes a sound.
WARNING
Lock and tag the MEWP, and remove it for
servicing if:
▪
The alarm does not make a sound,
▪
The lift or drive functions are not disabled
when you get at the cut-off height.
If you do not obey, there is a risk of death or
serious injury.
7. Raise the platform.
▪
Result: The platform does not rise.
8. Drive the MEWP forward.
▪
Result: The MEWP does not move.
9. Lower the platform.
▪
Result: The platform lowers.
