Section 6 – Additional Procedures
Use the service pin
6.8 Use the service pin
The service pin
1
is located on the mast.

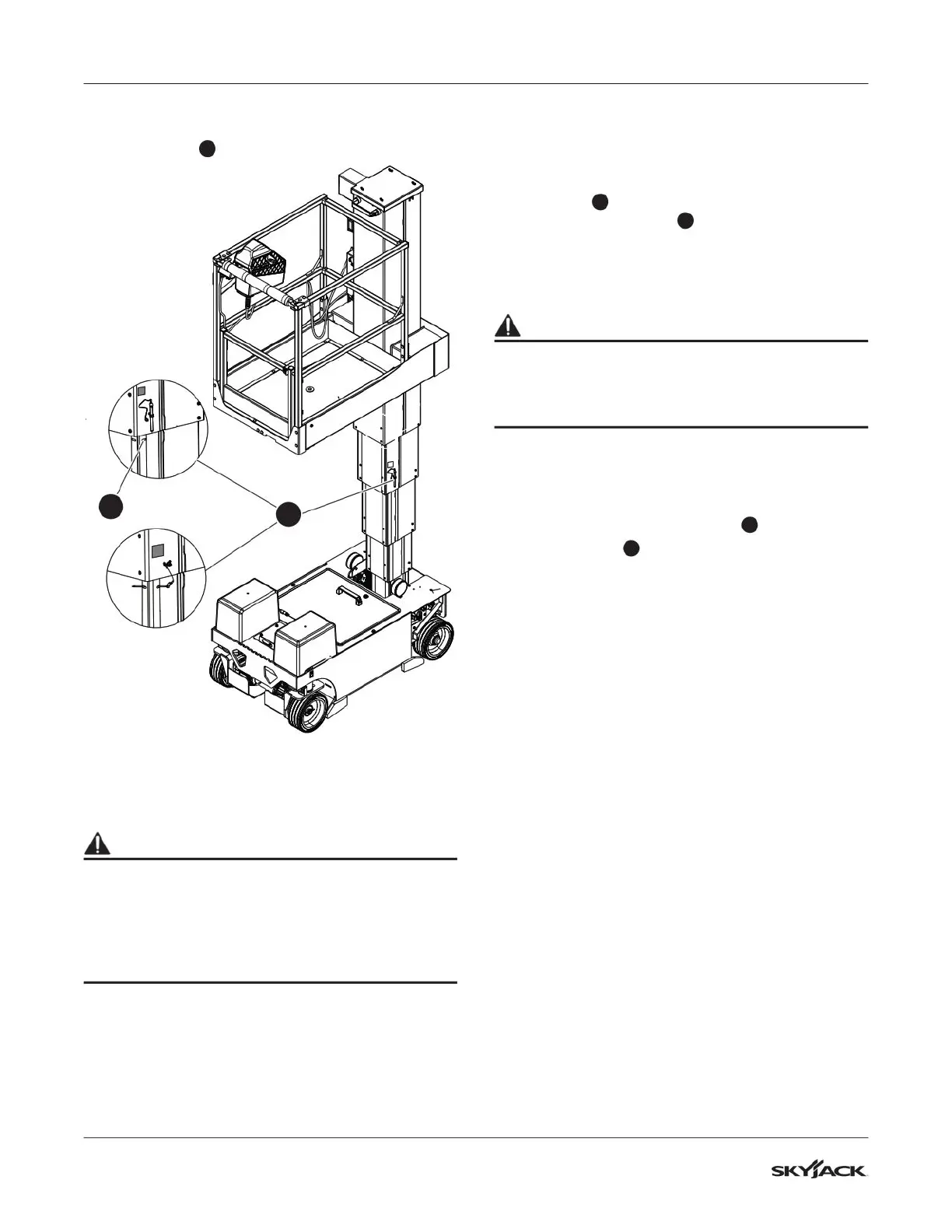

Figure 06 Mast with service pin location
WARNING
Look for overhead obstructions or other possible
hazards around the MEWP when you raise the
platform. Do not lower the platform unless the area
below is clear of personnel and obstructions. If
you do not obey, there is a risk of death or serious
injury.
6.8-1 Insert the service pin
1. Remove all personnel and material from the
platform.
2. Raise the platform until you can see the service
pin slots
2
and there is sufcient clearance to
insert the service pin
1
.
3. Remove the pin from the clamp.
4. Insert the service pin through the slots until the
end of the pin is fully through the second slot.
CAUTION
Make sure you do not raise or lower the platform
after the service pin is inserted through the slots.
If you do not obey, it can cause damage to the
MEWP.
5. Turn the main power disconnect switch to the off
position.
6.8-2 Store the service pin
1. Remove the pin from the slots
2
.
2. Store the pin
1
in the pin clamp on the mast.
3. Turn the main power disconnect switch to the on
position.
4. Fully lower the platform.
