Section 6 – Additional Procedures
Move the MEWP for transport

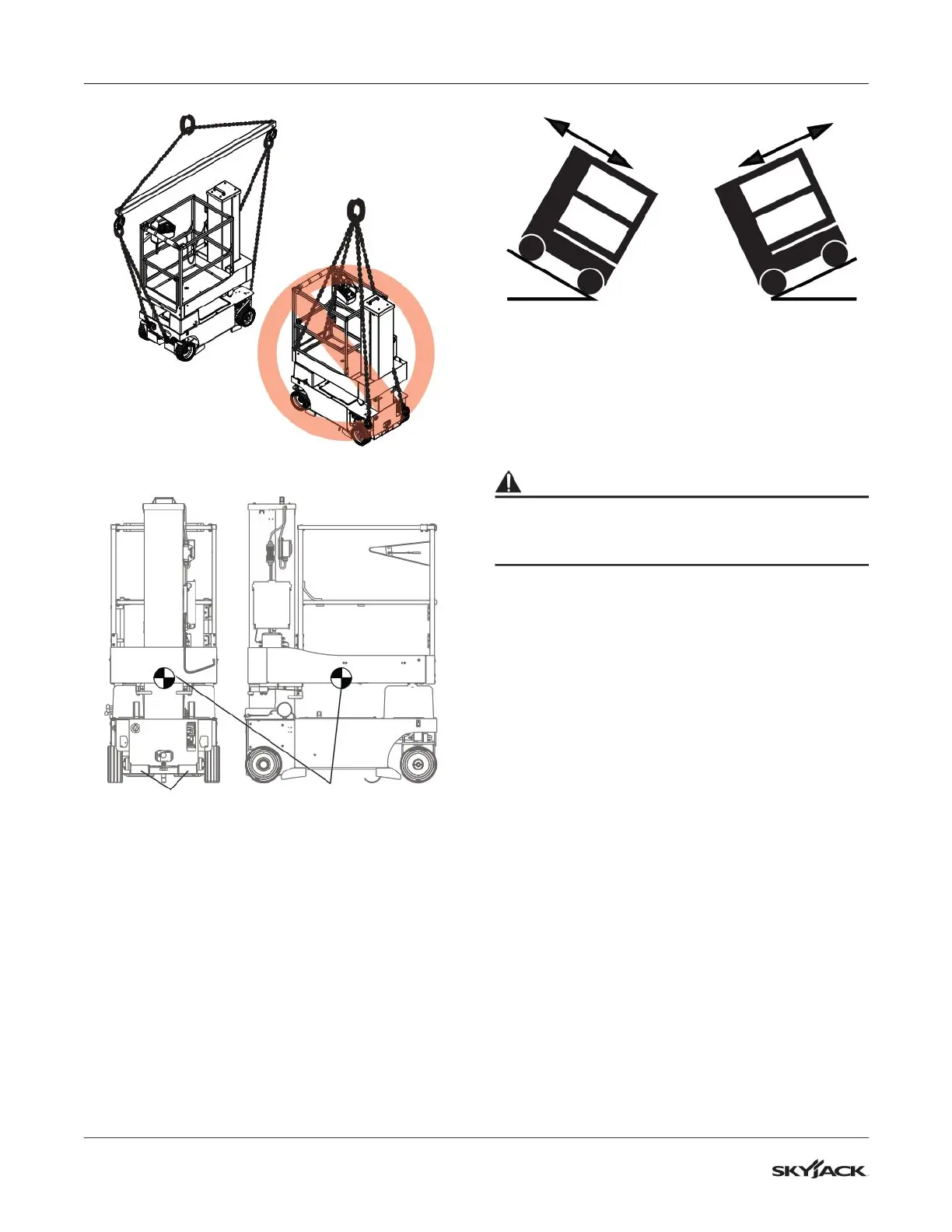

Figure 03 Appropriate method to hoist
Forklift Lifting
Locations
Center of
Gravity
Figure 04 Center of gravity and forklift lift locations
NOTE
For the weight of the MEWP, refer to Section 7.6. The
center of gravity is approximately in the middle of the
MEWP, front to back and side to side. Refer to Figure
04. Vertically, the center of gravity is approximately a
small distance above the base.
NOTE
A forklift truck can lift the MEWP from the back. Lift with
the forks in the forklift lift locations as shown in Figure
04.
25% 25%
Gradeability 25%: Climbing reverse, descending
forward
Gradeability 25%: Climbing forward, descending
reverse
Figure 05 Maximum gradeability of inclined drive
CAUTION
Make sure you use the correct lift method. An
incorrect lift method, such as the one circled in
Figure 03, can cause damage to the MEWP.
