STEP 3: CONNECT PLUMBING
Your Slayer Steam LP machine will arrive with two (2) plumbing lines and
two (2) drain hoses attached. One (1) additional plumbing line will arrive
inside of the accessories box. A water treatment system is required, but
not included. Read the Safety Advisory for connecting to the water supply
on pg. 7 and “Water Treatment Requirements” on pg. 8 for information
about avoiding and addressing water-related issues.
INCLUDED PARTS
• Two (2) drain hoses with an inside diameter of 5/8 inch (16
millimeters)
• One (1) 30 inch 3/8 inch by 3/8 inch BSP braided hose (in North
America, includes 3/8-inch adapter for compression fitting)
• Two (2) 60 inch 3/8 inch by 3/8 inch BSP braided hoses, color-coded
• External rotary pump
TOOLS & SUPPLIES
• Water treatment system (see pg. 8 for recommendations)
• Pressure Reducing valve or regulator (recommended for flowmeter
accuracy)
• Adjustable wrench
PROCEDURE
1. Install your water treatment system according to the instructions
provided by the manufacturer, then turn o the main water supply.
Before use, all treatment systems should be flushed with water for
at least two (2) minutes.
2. Ensure that the machine is in position, with all cords, lines, and hoses
running through the wing channels and counter holes (per previous
steps).
3. Run the two (2) drain hoses to an open gravity drain, ensuring that
the lines always slope downwards to ensure constant draining of grey
water.
4. Locate the 30 inch by 3/8 inch braided hose inside of the accessories
box and use it to connect the water treatment system to the external
rotary pump, tightening with a wrench.
5. Locate the two (2) color-coded braided hoses, attached to the
machine, and the color-coded connections on the pump.
6. Connect each hose to its color-matched connection on the pump,
tightening with a wrench.
Do not turn on the main water supply.

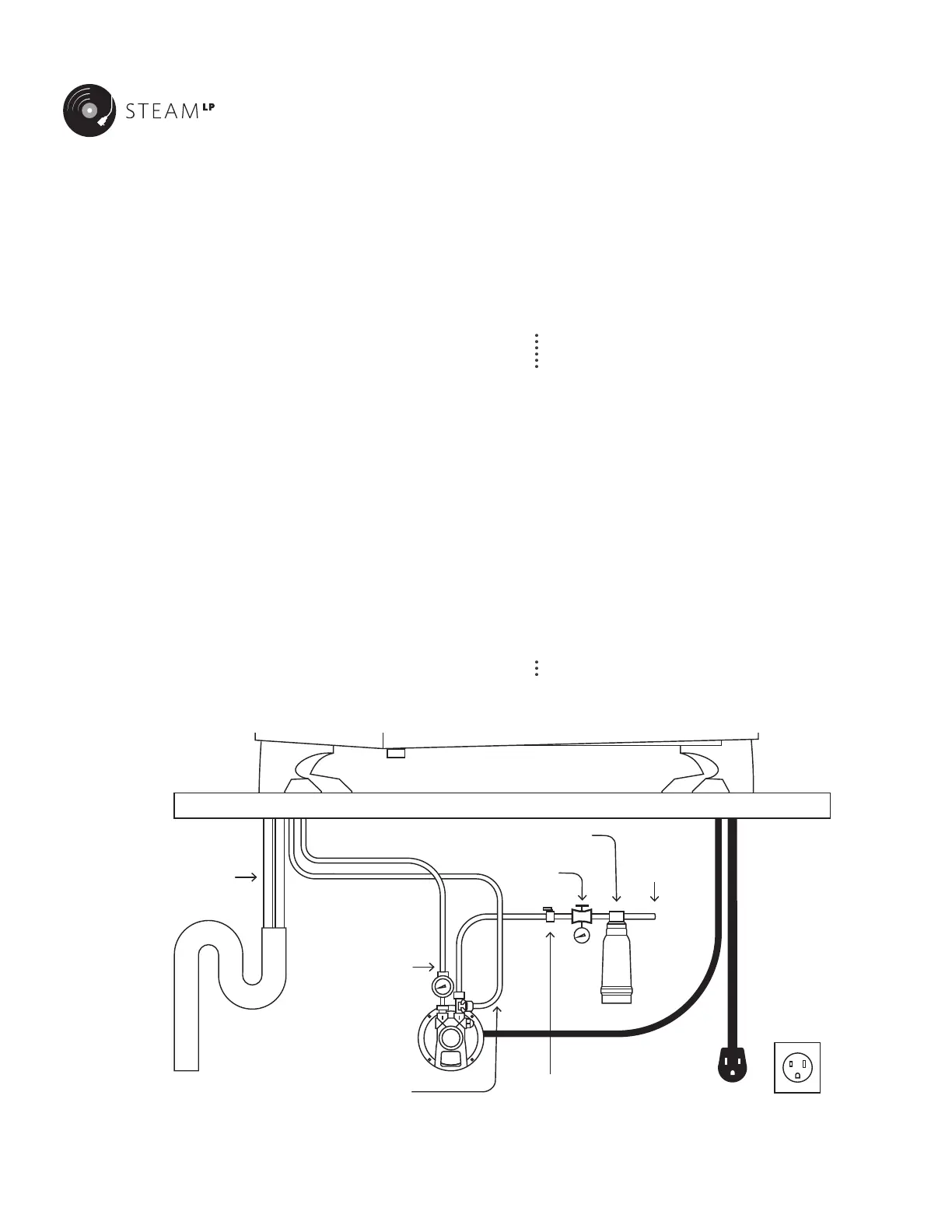

Water
filter
Water
line in
Drain
hoses
3/8-inch water line
connects to water system
with shuto valve
Red Ziptie
(High Pressure)
Blue Ziptie
(Low Pressure)
Pressure
Reducing
Valve
To Next Page
