Slayer Steam LP - Water Fill Circuit

SLAYER STEAM LP USER MANUAL V1.1 | JUNE 2019 58

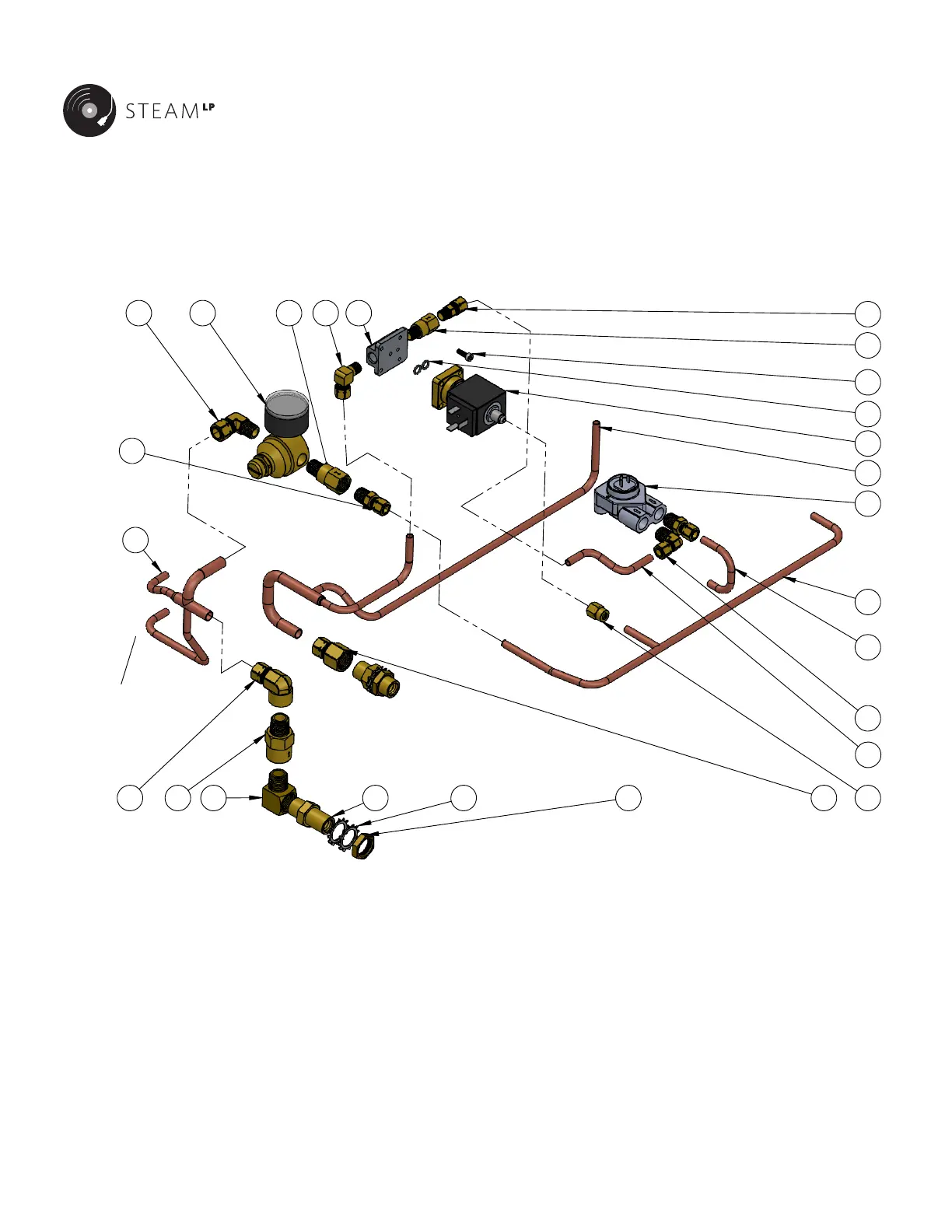

WATER FILL CIRCUIT
TO STEAM FILL
AND MIX VALVE
COLD WATER INLET
(LOW PRESSURE)
COLD WATER INLET
(HIGH PRESSURE)
25
1 2 3 4 5
7
6
9
8
10
11
12
14
13
15
16
1718192021222324
26
ITEM
NO.
PART NUMBER DESCRIPTION
1 42000-34170 COMPRESSION TUBE FITTING, ELBOW FOR 3/8" TUBE OD X 1/4 NPT
2 30015-58070 SMALL PRESSURE REGULATOR, STEAM LP
3 42000-10120 CHECK VALVE, 1/4 MNPT X 1/4 FNPT, 1PSI, BRASS
4 42000-34560 FITTING, 90 DEG ELBOW FOR 1/4" TUBE OD X 1/8" NPTF - M, BRASS
5 10999-20191 SOLENOID MOUNT
6 42000-34500 FITTING, 1/4" TUBE OD X 1/8" NPTF - M, BRASS
7 42000-10110 CHECK VALVE, 1/8 MNPT X 1/8 FNPT, 1PSI, BRASS
8 44005-10090 SHCS,M4-0.7X12MM,18-8 SS
9 46000-10040 O-RING, FKM, DASH NUMBER-010
10 30000-20153 3-WAY SOLENOID VALVE, 2mm, FORGED FLANGE, 24VDC
11
40015-32040 BREW DISTRIBUTION TUBE ASSY, STEAM LP 2 GROUP
40015-32030 BREW DISTRIBUTION TUBE ASSY, STEAM LP, 3 GROUP
12 30005-21200 FLOW METER
13
40015-32014 PREINFUSION TUBE ASSY, STEAM LP, 2 GROUP
40015-32015 PREINFUSION TUBE ASSY, STEAM LP, 3 GROUP
14 40005-32110 FLOW METER TUBE
15 42000-34702 FITTING, EASY-ALIGN, COMPRESSION TUBE, ELBOW FOR 1/4" TUBE OD X 1/4 - M PIPE, BRASS
16 40015-32016 3 WAY TO FLOW METER TUBE, STEAM LP
17 42005-10010 TUBE NUT, G1/8 TO 1/4 COMPRESSION
18 42000-34530 FITTING, 3/8" TUBE OD X 3/8" NPTF - F, BRASS
19 44000-10010 BRASS NUT - SCREW/BOTH
20 44000-36360 LOCKWASHER, EXTERNAL TOOTH, FOR M16
21 42000-10010 EXTENSION 3/8-19 BSPP FITTING
22 42004-34500 MEDIUM-PRESSURE BRASS THREADED PIPE FITTING, 3/8 PIPE SIZE, 90 DEGREE MALE X FEMALE ELBOW
23 46005-34620 1 WAY VALVE
24 42015-10010 ELBOW,90 DEG,3/8 FNPT, X 3/8 COMP TUBE
25 40015-32090 LINE PRESSURE TUBE ASSY, STEAM LP
26 42000-34700 FITTING, EASY-ALIGN, COMPRESSION TUBE, STRAIGHT ADAPTER FOR 1/4" TUBE OD X 1/4 - M PIPE, BRASS
WATER FILL CIRCUIT
support@slayerespresso.com (206) 284-7171
PARTS MANUAL - STEAM LP
DocNo.
DOC-00081
