Slayer Steam LP - Pump Assembly & Lines

SLAYER STEAM LP USER MANUAL V1.1 | JUNE 2019 70

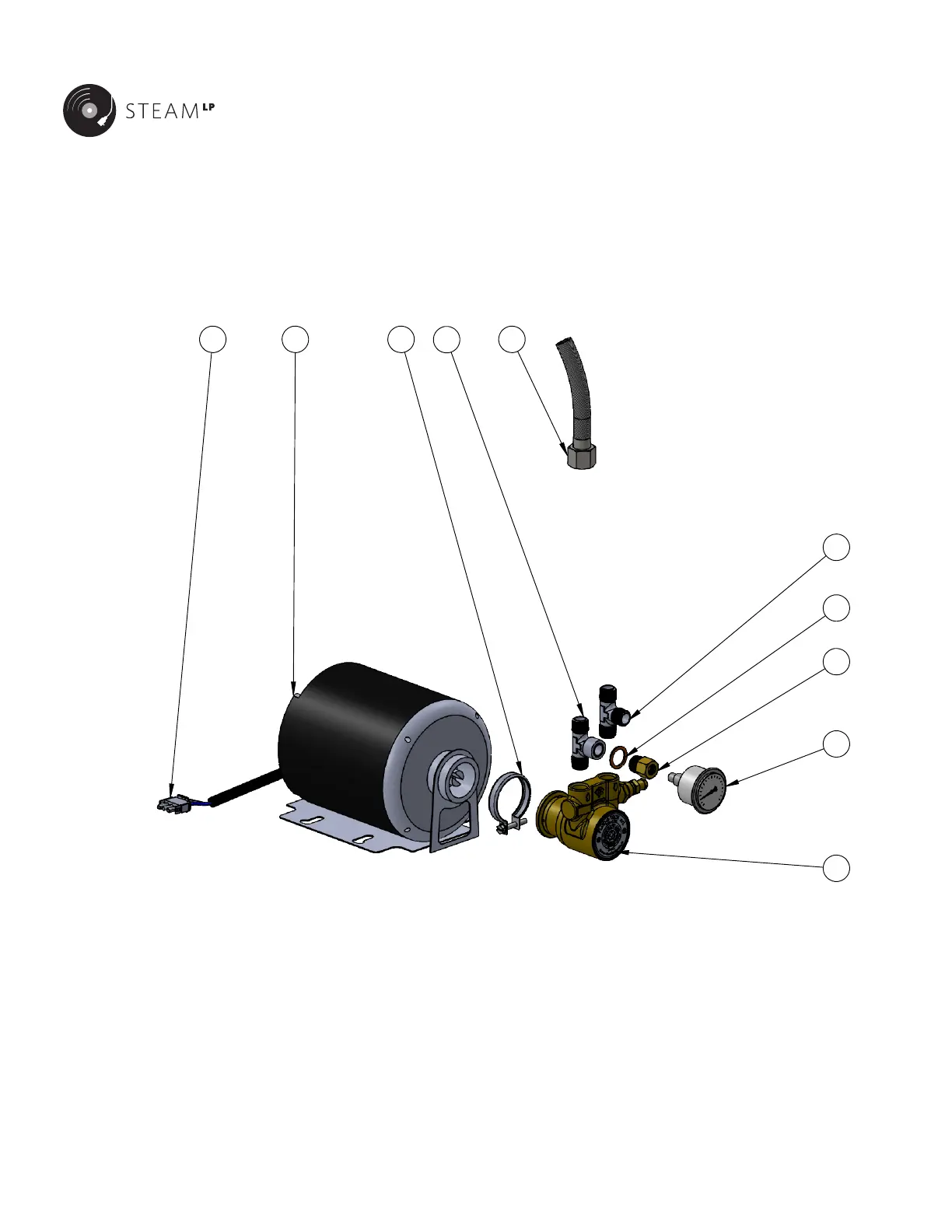

PUMP ASSEMBLY & LINES
51 2
4
7
8
9
6
10
3
ITEM NO. PART NUMBER DESCRIPTION
1
30000-20470 HARNESS, MOTOR, 2/3 GROUP,UL
30000-20446 HARNESS, MOTOR, 2/3 GROUP,CE
2 30000-58020 PUMP MOTOR
3 44000-58010 V BAND CLAMP
4 42000-10050 TEE FITTING, M-F-M, 3/8" BSPT MALE, 3/8" BSPP FEMALE
5 40005-10010 STAINLESS STEEL HOSE, 3/8" FC X CFC 2000mm
6 42000-10030 TEE FITTING, 3/8 M/M/M
7 46000-50130 Gasket, Copper ,Flat, 22x17x1.5mm
8 42000-10060 REDUCER, 3/8" - M X 1/8" - F
9 46000-50320 BREW GAUGE, 20BAR, CUSTOM PRINTED SLAYER LOGO. SCALE IN BAR.
10 30000-58030 PUMP, 45 GPH
PUMP ASSEMBLY AND LINES
