Slayer Steam LP - Wire Map

SLAYER STEAM LP USER MANUAL V1.1 | JUNE 2019 74

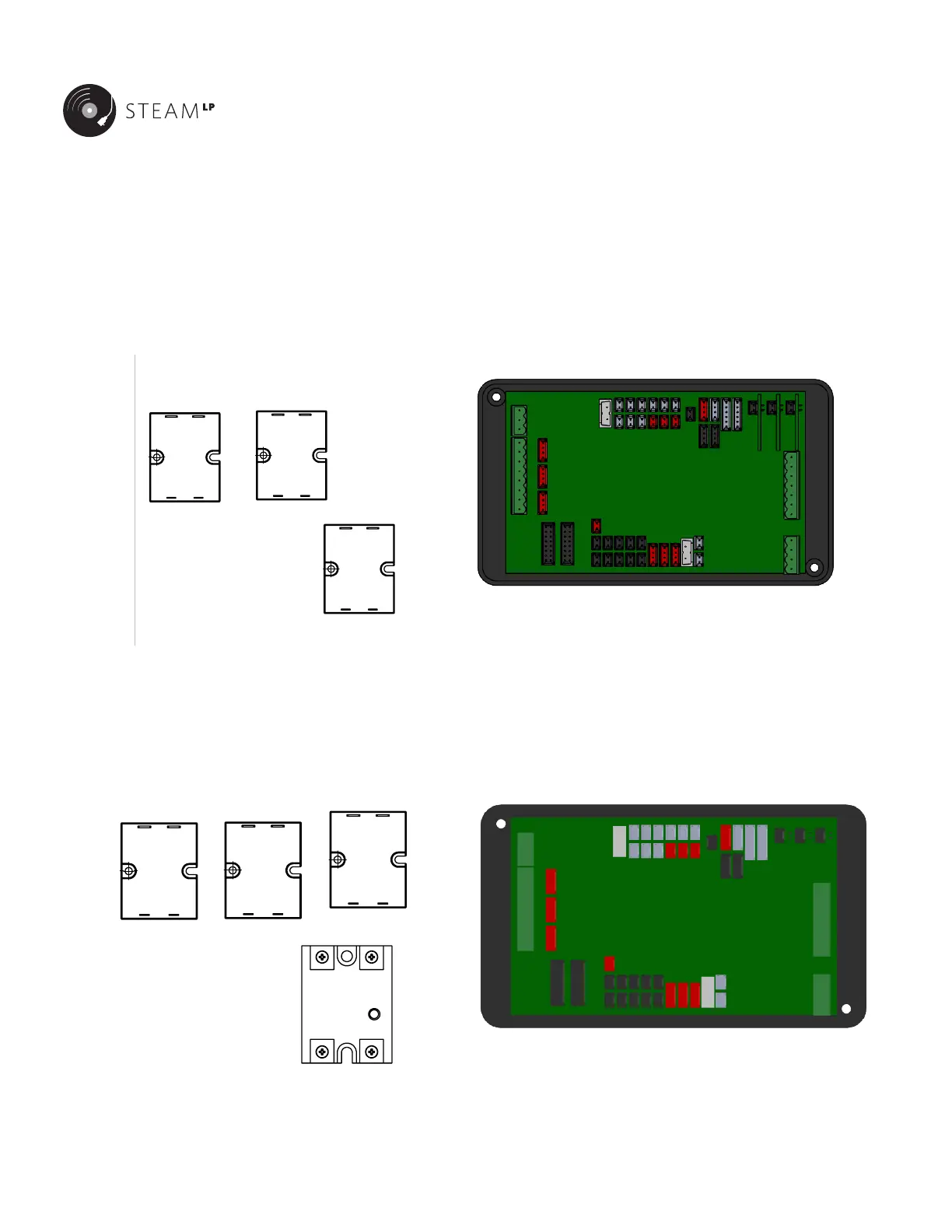

WIRE MAP
2-GROUP MACHINES
3-GROUP MACHINES
CN18 CN20 CN26 CN28CN32 CN34 CN38 CN40 CN44
CN41
CN45
CN46 CN47
MOD1
MOD2
CN48
CN49
CN9
CN10
CN11
CN13 CN16 CN22CN24
CN14 CN17 CN23CN25 CN30 CN31 CN36 CN39 CN43
CN42
CN8
CN7
CN6
CN5
CN4
CN2
CN1
CN12
CN19 CN21 CN27 CN29
CN33
CN35
SSR-BG1SSR-BG2
2 GROUP MACHINES
SSR-STM
CONNECTION POSITION WIRE COLOR FROM / TO CONNECTION POSITION WIRE COLOR FROM / TO
CN1 1 RED +24Vdc CN17
3 BLACK -
CN2 1 GREEN CN18
2 BLACK CN19
3 RED CN20
4 GRAY CN21
5 CN26
6 YELLOW/GREEN CN30
7 YELLOW/ORANGE
8
CN8 2 GRAY
4 CN40
6 GREEN MOD1
8 MOD 2
10 WHITE CN48
12 BLACK
14
16 ORANGE
CN10 1 BLACK/BROWN
2 RED
CN11 1 BLACK
2 GREEN CN49
CN12 1 RED
CN13 1 BLACK/WHITE
2 RED
CN14 1 BLACK/WHITE
2 YELLOW
CONNECTION POSITION WIRE COLOR
GROUND CN2 1 GREEN
FLOW MTR GND CN2 2 BLACK
FLOW MTR +10Vdc CN2 3 RED
HOT WATER SW.
CN11 2 VIOLET/BLACK
CN11 1 BLACK
STEAM SW. LEFT CN8 6 GREEN
STEAM SW. RIGHT CN8 2 GRAY
STEAM SOL.-LEFT MOD2
2 RED/WHITE
1 BROWN
STEAM SOL. - RIGHT MOD1
2 RED
1 ORANGE
LEVEL PROBE CN2 4 GRAY
AUTOFILL SOL. CN48 3 BROWN/WHITE
HOT WATER SOL. CN48 2 BROWN/YELLOW
STEAM HEATER CN28 2 BLACK/ORANGE
24vDC + CN1 1 RED
- CN1 3 BLACK
PUMP 115/240Vac (L1) CN49 1 WHITE
PUMP (L2 OR N) CN49 3 YELLOW
GROUP 1
CONNECTION POSITION WIRE COLOR
GH1 SW-RIGHT CN14
2 YELLOW
1 BLACK / WHITE
GH1 SW-LEFT CN8 10 WHITE
RTD CN10
1 BLACK / WHITE
2 RED
LED CN19 2 BLACK / ORANGE
FLOW METER CN2 6 YELLOW / GREEN
BREW SOLENOID CN48 7 BLUE / WHITE
PRE-BREW
SOLENOID
CN48 1 WHITE / ORANGE
BREW HEATER CN18 2 GRAY
MANUAL MODE CN22 - GRAY / WHITE
GROUP 2
CONNECTION POSITION WIRE COLOR
GH2 SW-RIGHT CN17
2 YELLOW
1 BLACK / MAROON
GH2 SW-LEFT CN8 16 ORANGE
RTD CN13
1 BLACK / BROWN
2 RED
LED CN21 2 BLACK / BLUE
FLOW METER CN2 7 YELLOW / ORANGE
BREW SOLENOID CN48 6 BLUE / BROWN
PRE-BREW
SOLENOID
CN48 4 WHITE / BLUE
BREW HEATER CN20 2 GRAY/YELLOW
MANUAL MODE CN23 - GRAY / BLUE
WIRE COLOR CROSS-REFERENCE
support@slayerespresso.com (206) 284-7171
PARTS MANUAL - STEAM LP
DocNo.
DOC-00088
CN18 CN20 CN26 CN28 CN32 CN34 CN38 CN40CN44
CN41
CN45
CN46 CN47
MOD1
MOD2
CN48
CN49
CN9
CN10
CN11
CN13 CN16 CN22CN24
CN14 CN17 CN23CN25 CN30 CN31 CN36 CN39 CN43
CN42
CN8
CN7
CN6
CN5
CN4
CN2
CN1
CN12
CN19 CN21 CN27 CN29
CN33
CN35
SSR-STM
SSR-BG1
SSR-BG2
3 GROUP MACHINES
SSR-BG3
CONNECTION POSITION WIRE COLOR FROM / TO CONNECTION POSITION WIRE COLOR FROM / TO
CN1 1 RED +24Vdc CN17
3 BLACK -
CN2 1 GREEN CN18
2 BLACK CN19
3 RED CN20
4 GRAY CN21
5 CN26
6 YELLOW/GREEN CN30
7 YELLOW/ORANGE
8
CN8 2 GRAY
4 CN40
6 GREEN MOD1
8 MOD 2
10 WHITE CN48
12 BLACK
14
16
ORANGE
CN10 1 BLACK/BROWN
2 RED
CN11 1 BLACK
2 GREEN CN49
CN12
1 RED
CN13 1 BLACK/WHITE
2 RED
CN14 1 BLACK/WHITE
2 YELLOW
GROUP 1
CONNECTION POSITION WIRE COLOR
GH1 SW-RIGHT CN14
2 YELLOW
1 BLACK / WHITE
GH1 SW-LEFT CN8 10 WHITE
RTD CN10
1 BLACK / WHITE
2 RED
LED CN19 2 BLACK / ORANGE
FLOW METER CN2 6 YELLOW / GREEN
BREW SOLENOID CN48 7 BLUE / WHITE
PRE-BREW
SOLENOID
CN48 1 WHITE / ORANGE
BREW HEATER CN18 2 GRAY
MANUAL MODE CN22 - GRAY / WHITE
GROUP 2
CONNECTION POSITION WIRE COLOR
GH2 SW-RIGHT CN17
2 YELLOW
1 BLACK / MAROON
GH2 SW-LEFT CN8 16 ORANGE
RTD CN13
1 BLACK / BROWN
2 RED
LED CN21 2 BLACK / BLUE
FLOW METER CN2 7 YELLOW / ORANGE
BREW SOLENOID CN48 6 BLUE / BROWN
PRE-BREW
SOLENOID
CN48 4 WHITE / BLUE
BREW HEATER CN20 2 GRAY/YELLOW
MANUAL MODE CN23 - GRAY / BLUE
GROUP 3
CONNECTION POSITION WIRE COLOR
GH3 SW-RIGHT CN25
2 YELLOW
1 BLACK / BLUE
GH3 SW-LEFT CN8 14 VIOLET / WHITE
RTD CN16
1 BLACK
2 RED
LED CN27 2 BLACK / WHITE
FLOW METER CN2 8 YELLOW / VIOLET
BREW SOLENOID CN48 5 BLUE / YELLOW
PRE-BREW
SOLENOID
MOD3 1 WHITE / BLACK
BREW HEATER CN26 2 GRAY / ORANGE
MANUAL MODE CN24 - GRAY / BLACK
CONNECTION POSITION WIRE COLOR
GROUND CN2 1 GREEN
FLOW MTR GND CN2 2 BLACK
FLOW MTR +10Vdc CN2 3 RED
HOT WATER SW.
CN11 2 VIOLET/BLACK
CN11 1 BLACK
STEAM SW. LEFT CN8 6 GREEN
STEAM SW. RIGHT CN8 2 GRAY
STEAM SOL .- LEFT MOD2
2 RED/WHITE
1 BROWN
STEAM SOL. - RIGHT MOD1
2 RED
1 ORANGE
LEVEL PROBE CN2 4 GRAY
AUTOFILL SOL. CN48 3 BROWN/WHITE
HOT WATER SOL. CN48 2 BROWN/YELLOW
STEAM HEATER CN28 2 BLACK/ORANGE
24vDC + CN1 1 RED
- CN1 3 BLACK
PUMP 240Vac (L1) CN49 1 WHITE
PUMP (N) CN49 3 YELLOW
WIRE COLOR CROSS-REFERENCE
support@slayerespresso.com (206) 284-7171
PARTS MANUAL - STEAM LP
DocNo.
DOC-00088
