Slayer Steam LP - Drip Trays & Cup Trays

SLAYER STEAM LP USER MANUAL V1.1 | JUNE 2019 68

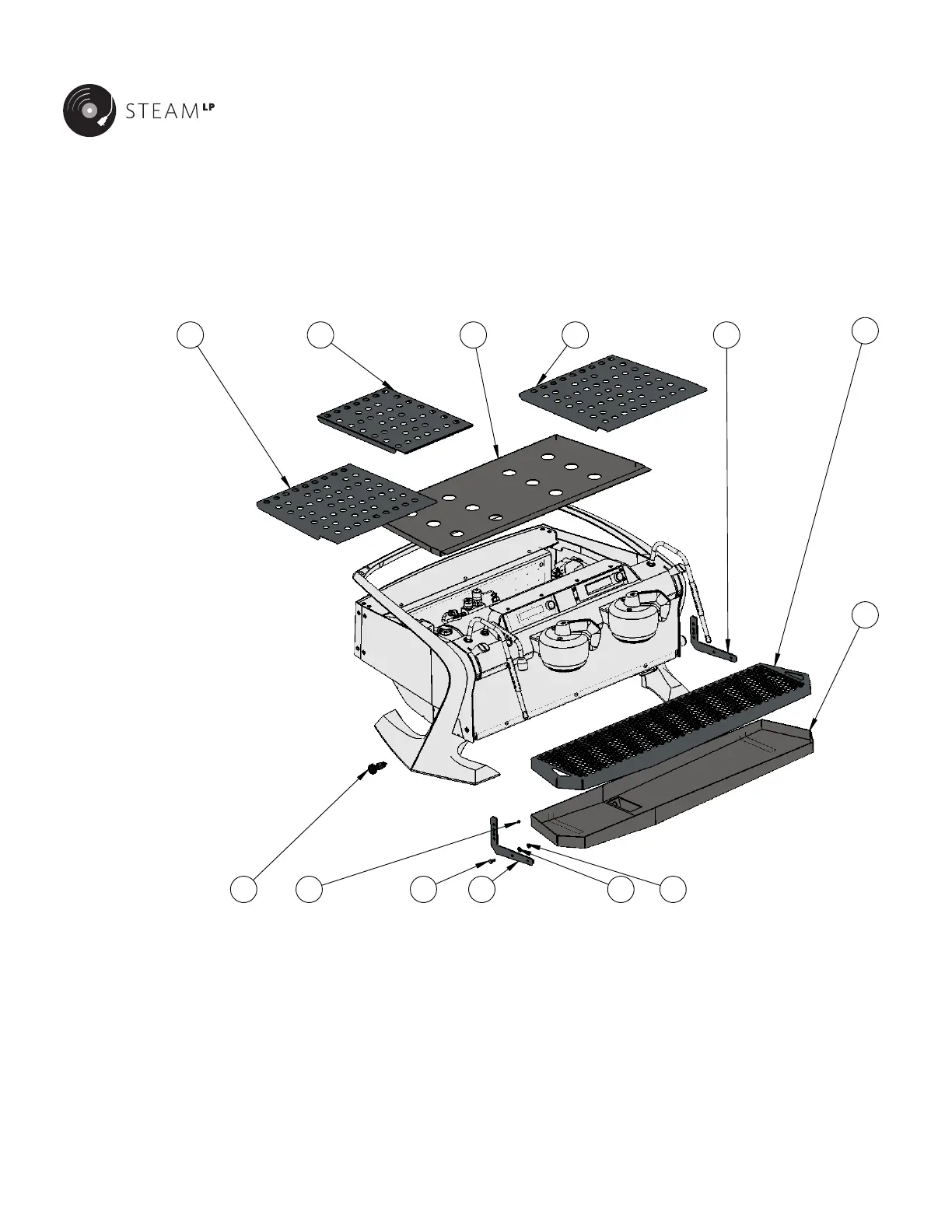

DRIP TRAYS & CUP TRAYS
21 3 4 5
6
7
9
11 8
(for 3 Group Only)
101213
ITEM NO. PART NUMBER DESCRIPTION
1 13005-30034 CUP TRAY COVER, LEFT, STEAM
2 13005-30035 CUP TRAY COVER, CENTER, STEAM
3
13005-20029 CUP TRAY, STEAM, 2GP
13005-30029 CUP TRAY, LOWER, STEAM, 3GP
4 13005-30033 CUP TRAY COVER, RIGHT, STEAM
5 13005-30039 DRIP TRAY, ADJ. RAIL, RIGHT
6
13005-20038 DRIP TRAY COVER, STEAM, 2GP
13005-30038 DRIP TRAY COVER, STEAM, 3G
7
13005-20037 DRIP TRAY LINER, STEAM, 2 GP
13005-30037 DRIP TRAY LINER, STEAM, 3 GP
8 44005-10050 HEX NUT, M6-1.0,18-8 SS
9 44000-36110 LOCK WASHER, TANK MOUNT
10 13005-30040 DRIP TRAY ADJ. RAIL, LEFT
11 44005-10030 HHCS,M6-1.0X12MM,18-8 SS
12 44005-10410 SHCS,6-32X0.13,18-8 SS
13 44005-50080 SPRING PIN
DRIP TRAYS AND CUP TRAYS
support@slayerespresso.com (206) 284-7171
PARTS MANUAL - STEAM LP
DocNo.
DOC-00086
