Slayer Steam LP - Steam Tank Assembly

SLAYER STEAM LP USER MANUAL V1.1 | JUNE 2019 48

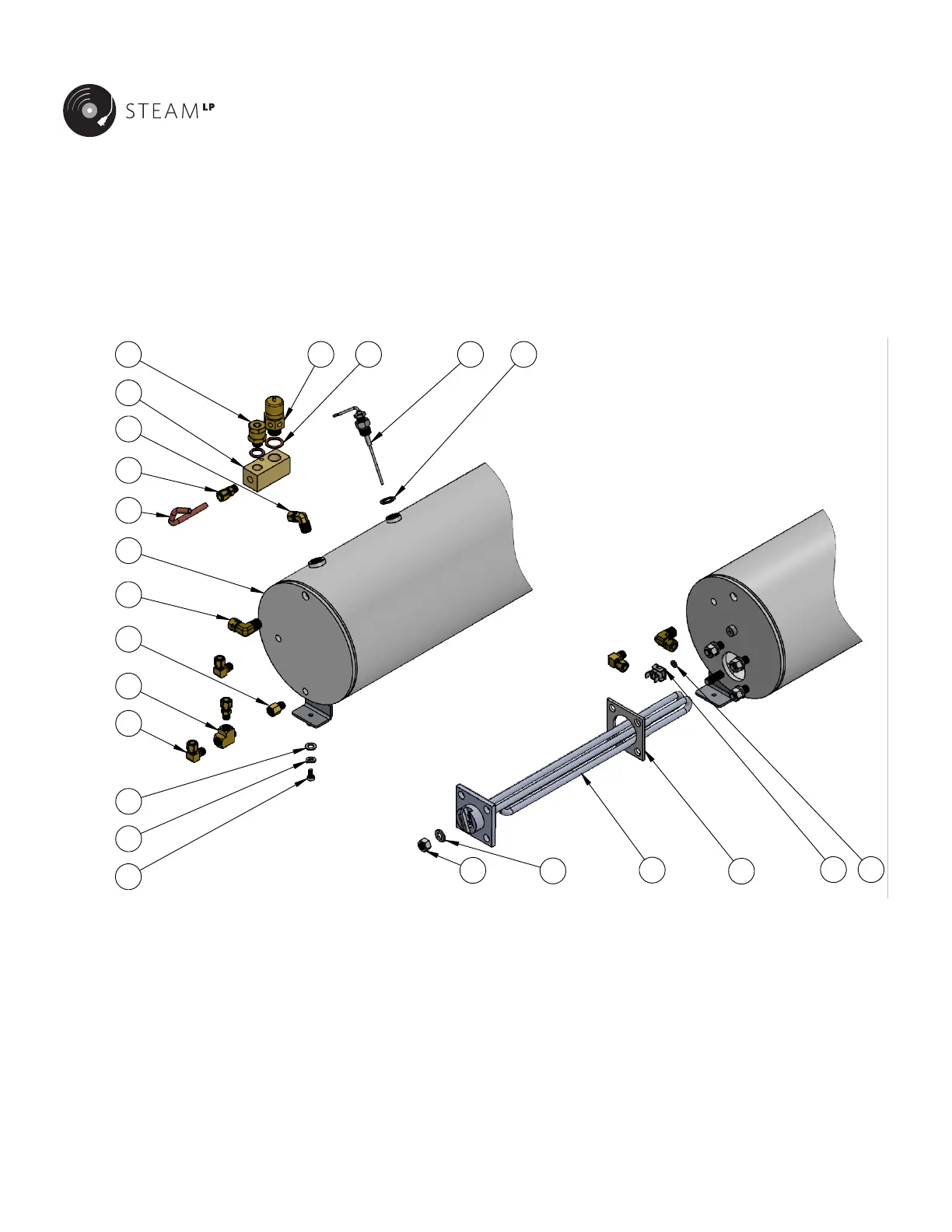

STEAM TANK ASSEMBLY
22
21
20
19
18
23
FRONT ISO VIEW
14
13
12
10
7
12
15
16
17
11
45 3
8
6
9
REAR ISO VIEW
ITEM NO. PART NUMBER DESCRIPTION
1 46000-50150 Gasket , Copper, Flat, 19x13.5x1.5mm
2 30000-50170 WATER LEVEL PROBE, STEAM / SINGLE GRP,103mm
3 46000-50130 Gasket, Copper ,Flat, 22x17x1.5mm
4 46000-50120 PRV, 2.5 BAR
5 46000-50140 VALVE, ANTI-SUCTION/VACUUM, 1/4"
6 10005-03030 PRV MANIFOLD, STEAM
7 42000-34702 FITTING, EASY-ALIGN, COMPRESSION TUBE, ELBOW FOR 1/4" TUBE OD X 1/4 - M PIPE, BRASS
8 42000-34500 FITTING, 1/4" TUBE OD X 1/8" NPTF - M, BRASS
9 40005-32170 STEAM PRV TUBE
10
15005-12110 STEAM TANK, SLAYER STEAM, 2 GROUP
15005-13110 STEAM TANK, SLAYER STEAM, 3 GROUP
11 42000-34680 FITTING, EASY-ALIGN, COMPRESSION TUBE, 5/16" OD TUBE X 1/4" M PIPE, BRASS
12 42000-10040 EXTENSION, FITTING, 1/8 - F X 1/8 - M
13 42000-34580 FITTING, THREADED PIPE, 1/8" PIPE SIZE, TEE, F X F X M, NICKEL
14 42000-34560 FITTING, 90 DEG ELBOW FOR 1/4" TUBE OD X 1/8" NPTF - M, BRASS
15 46000-53040 WASHER, FLAT, M7 SCREW SIZE, 14mm OD, 1.4mm-1.8mm THICK
16 44000-36110 LOCK WASHER, TANK MOUNT
17 44005-10100 SHCS,M5-0.8X10MM,18-8 SS
18 44000-36080 3/8-16 NUT
19 44000-36070 3/8 LOCK WASHER
20
30000-20090 STEAM ELEMENT, 220V, 3500W, 2 GROUP
30000-20100 STEAM ELEMENT, 220V, 4500W, 3 GROUP
21 30000-20140 ELEMENT GASKET
22 30000-20261 THERMOSTAT, 25A, 145C, STEAM TANK
23 44000-10030 WSHR,FLT,#8,ALUMINUM
STEAM TANK ASSY
support@slayerespresso.com (206) 284-7171
PARTS MANUAL - STEAM LP
DocNo.
DOC-00076
