Slayer Steam LP - Panels, Rails & Wings

SLAYER STEAM LP USER MANUAL V1.1 | JUNE 2019 66

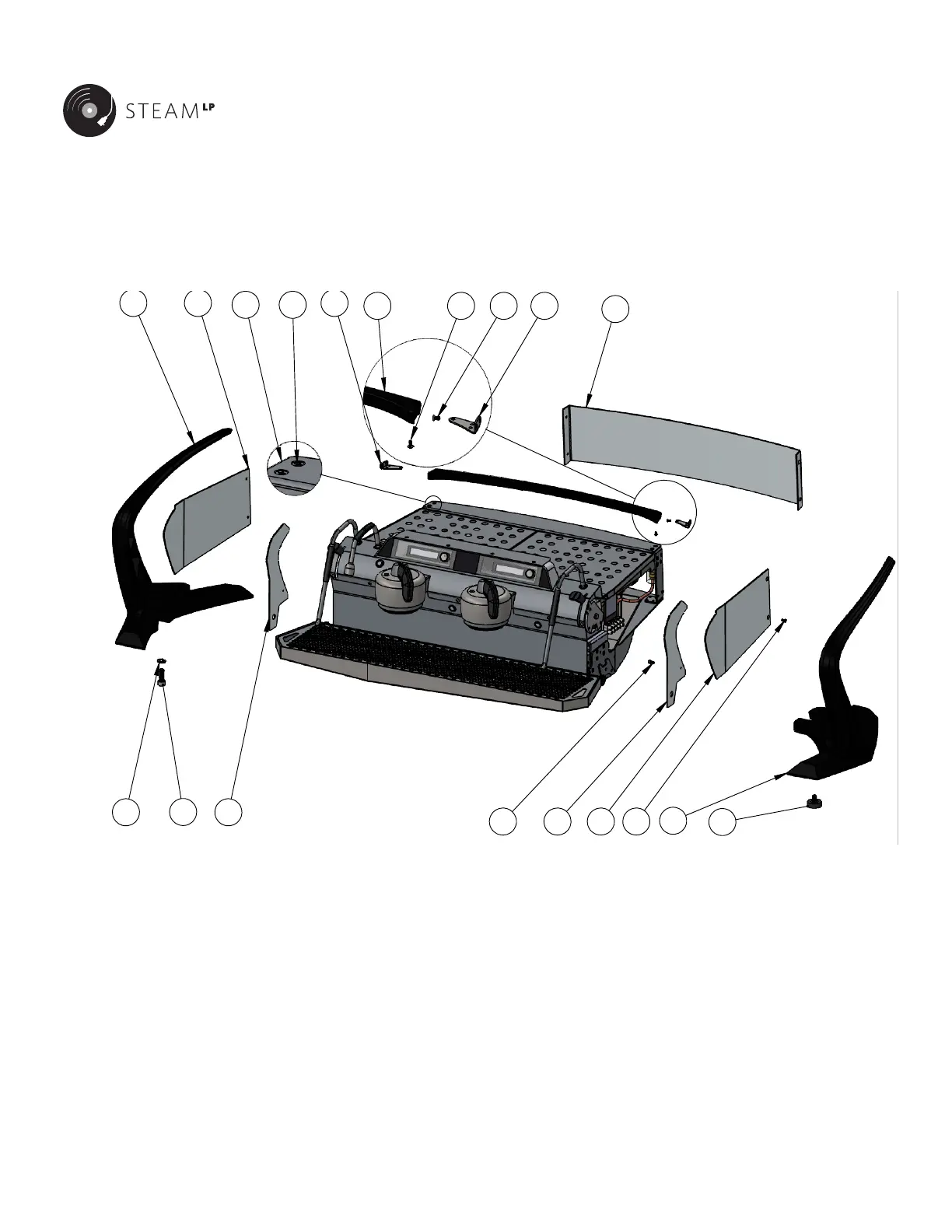

PANELS, RAILS & WINGS
1 2
15
5
10
11
12
14
18
19
1316
17
6 7 8 9
3 4
ITEM NO. PART NUMBER DESCRIPTION
1 20215-11000-44 WING SUPPORT, LEFT, STEAM - INK BLACK
2 13025-30016 SIDE PANEL,LEFT REAR, STEAM, MIRROR SS
3 13005-20013 REAR SUPPORT, STEAM, 2GP
4 44005-10120 FHMS,M5-0.8X8MM,PHILLIPS,18-8 SS
5 13005-20047 CUP TRAY RAIL CLIP, LEFT, STEAM, 2 GROUP
6
10015-20015-44 CUP RAIL, STEAM LP, 2 GROUP, INK BLACK
10015-30015-44 CUP RAIL, STEAM LP, 3 GROUP, INK BLACK
7 44005-10017 SCREW,TRUSS HD,EW,M3-0.5X8MM,PHILLIPS, 18-8 SS
8 44005-10211 FHMS,M4-0.7X8MM,PHILLIPS,18-8 SS
9 13005-20047 CUP TRAY RAIL CLIP, LEFT, STEAM, 2 GROUP
10
13025-20090 BACK PANEL, STEAM, 2GP
13025-30090 BACK PANEL, STEAM., 3GP
11 46000-50180 RUBBER FOOT, SLAYER STEAM
12 20215-10000-44 WING SUPPORT, RIGHT, STEAM - INK BLACK
13 44000-36064 FHMS,M5-0.8X10MM,PHILLIPS,18-8 SS
14 13025-30015 SIDE PANEL, RIGHT REAR, STEAM
15 13025-30044 SIDE PANEL,FRONT, STEAM, RIGHT, MIRROR SS
16 44005-10100 SHCS,M5-0.8X10MM,18-8 SS
17 13025-30054 SIDE PANEL, FRONT, STEAM, LEFT, MIRROR SS
18 44005-10110 SHCS,M12-1.75X30MM,18-8 SS
19 44005-10043 SLW,M12,18-8 SS
support@slayerespresso.com (206) 284-7171
PARTS MANUAL - STEAM LP
PANELS, RAILS, AND WINGS
support@slayerespresso.com (206) 284-7171
DocNo.
DOC-00085
