Slayer Steam LP - Steam Actuator Assemblies

SLAYER STEAM LP USER MANUAL V1.1 | JUNE 2019 56

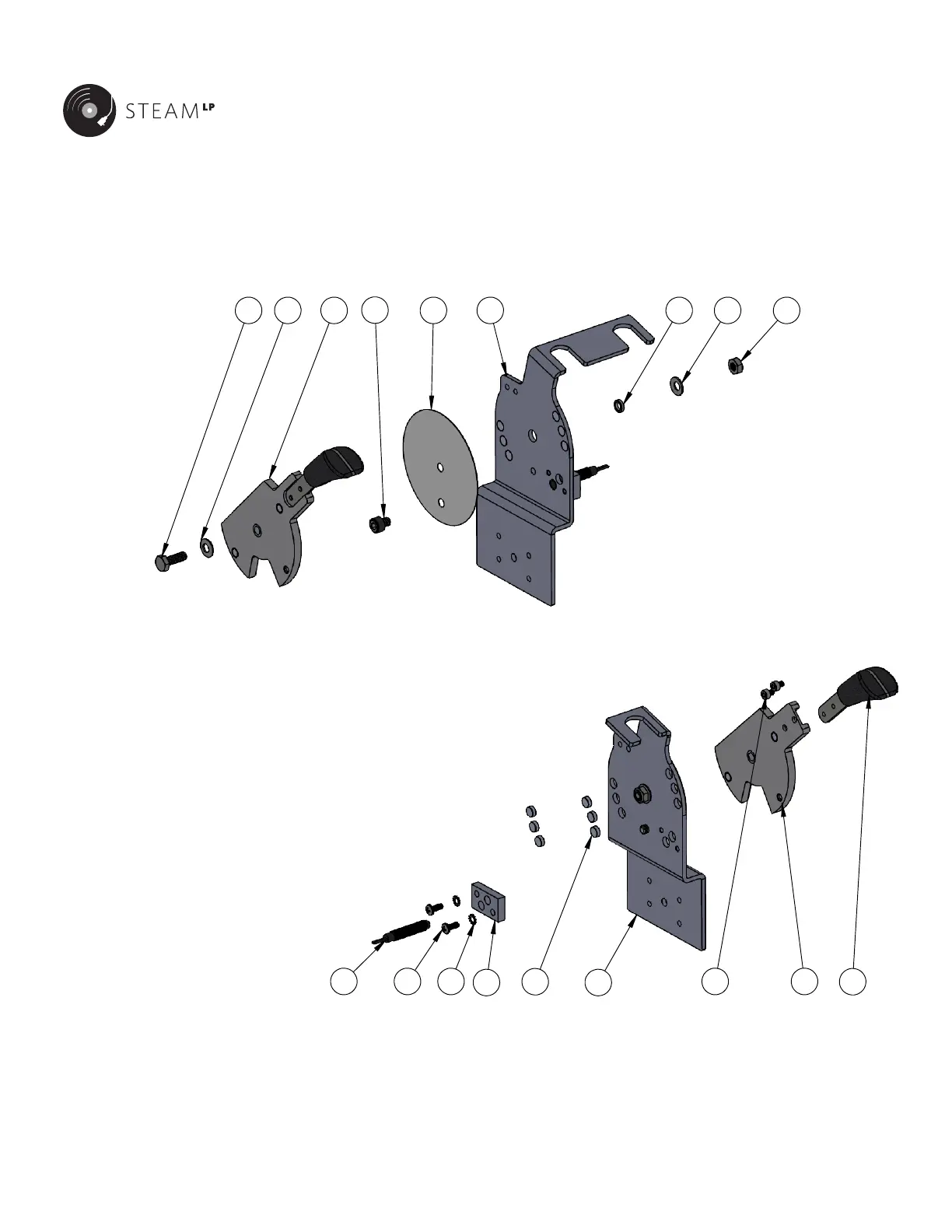

STEAM ACTUATOR ASSEMBLIES
1 2 3
4
5 6 7 2 8
15 16
14
13
12
11109
LEFT
RIGHT
17
ITEM
NO.
PART NUMBER DESCRIPTION
1 44000-36102 BOLT, HEX HEAD, 1/4-20 X 3/4
2 44005-10320 PLASTIC STEAM ACTUATOR DISK SPRING
3 99015-10004 LEFT ACTUATOR HANDLE ASSEMBLY
4 44000-36260 ACTUATOR, STEAM, STOP BOLT, SHORT
5 46005-01010 TEFLON GASKET
6 13005-30045 CHASSIS BRACE LEFT FRONT, STEAM
7 10005-02010 STEAM ACTUATOR BUSHING, SMALL
8 46005-10026 18-8 STAINLESS STEEL THIN NYLON-INSERT LOCKNUT,1/4-20
9 30005-20031 BARREL SWITCH W/ MOLEX, N/C
10 44005-10340 SCREW,PHMS,M4-0.7X10MM,PHILLIPS,18-8 SS
11 44005-10350 18-8 EXTERNAL-TOOTH LOCK WASHER FOR M4 SCREW
12 10005-03090 MAGNETIC SWITCH MOUNT
13 46003-50061 NEODYMIUM DISC MAGNET, 5/16" DIAMETER, 1/8" THICK, 4.4LBS PULL, NICKEL
14 13005-30009 CHASSIS BRACE RIGHT FRONT, STEAM
15 44000-36310 SOLENOID MOUNT SCREW
16 99015-10003 RIGHT ACTUATOR HANDLE ASSEMBLY
17 99015-10160 STEAM ACTUATOR HANDLE ASSEMBLY, ONYX DURATEX
STEAM ACTUATOR ASSEMBLIES - RIGHT/LEFT
support@slayerespresso.com (206) 284-7171
PARTS MANUAL - STEAM LP
DocNo.
DOC-00079
