MACHINE CALIBRATIONS
ADJUST BREW PUMP PRESSURE
PROTIP: With a blind basket portafilter in a group, set the pump pressure 1
bar above the desired extraction pressure.
REQUIRED TOOLS
• Slot screw driver
• Small crescent wrench
PROCEDURE
1. Locate the pressure gauge and adjustment screw on the external
rotary pump.
2. Loosen lock nut on pump screw.
3. Move the brew actuator to the on position.
4. Turn screw clockwise to increase the pump pressure.
Turn counterclockwise to decrease the pump pressure.
5. Tighten lock nut to hold setting.
6. Return the brew actuator to the o position and tighten the lock nut.
ADJUST HOT WATER TEMPERATURE
Slayer Steam features a blending valve that draws water from the steam
tank and main cold water line simultaneously. Custom water temperatures
are configured with the blending valve. Adjust the hot water temperature
with the following steps.
REQUIRED TOOLS
• Phillips Head Screwdriver
• Flat Head Screwdriver
PROCEDURE
1. Remove the side panel on the left side of the machine by removing
two phillips screws or remove the cup tray. Locate the blending valve

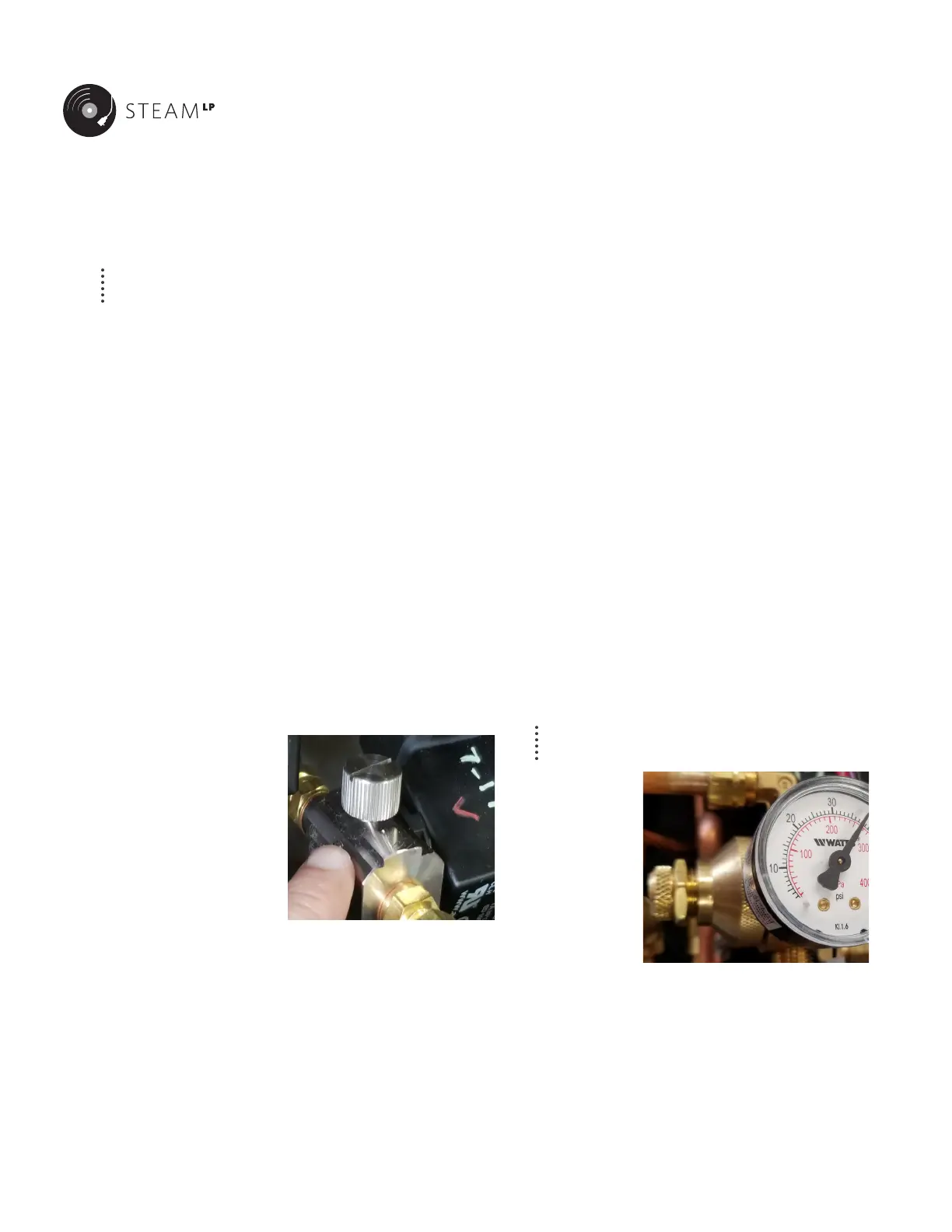

near the steam solenoid valve. [see photo below]
2. Adjust the hot water temperature:
• Clockwise rotations increase the hot water temperature.
• Counterclockwise rotations decrease the hot water
temperature.
3. Verify the temperature at the hot water tap with a digital
thermometer.
ADJUST PRE-INFUSION PRESSURE
Machines are tested at 2.5 bar (~36psi). Recommended operating
pressure is between 2.5 and 4 bar (~ 36 to 60 psi).
REQUIRED TOOLS
• Slot screw driver
• Small crescent wrench
• Phillips Head screw driver
PROCEDURE
1. Remove the Cup Tray Covers and Cup Tray. It may help to remove the
left side panel by removing two Phillips screws.
2. Locate the Pre-Infusion pressure regulator
3. Loosen locknut on the regulator.
4. Turn screw clockwise to increase the pump pressure.
Turn counterclockwise to decrease the pump pressure.
5. Tighten lock nut to hold setting.
6. Replace Cup Tray and Cup Tray covers or when maintenance is
complete.
Note: For best results, it is suggested to keep the regulated line
pressure at or above 2.5 bar.
