Slayer Steam LP - Drain Circuit

SLAYER STEAM LP USER MANUAL V1.1 | JUNE 2019 60

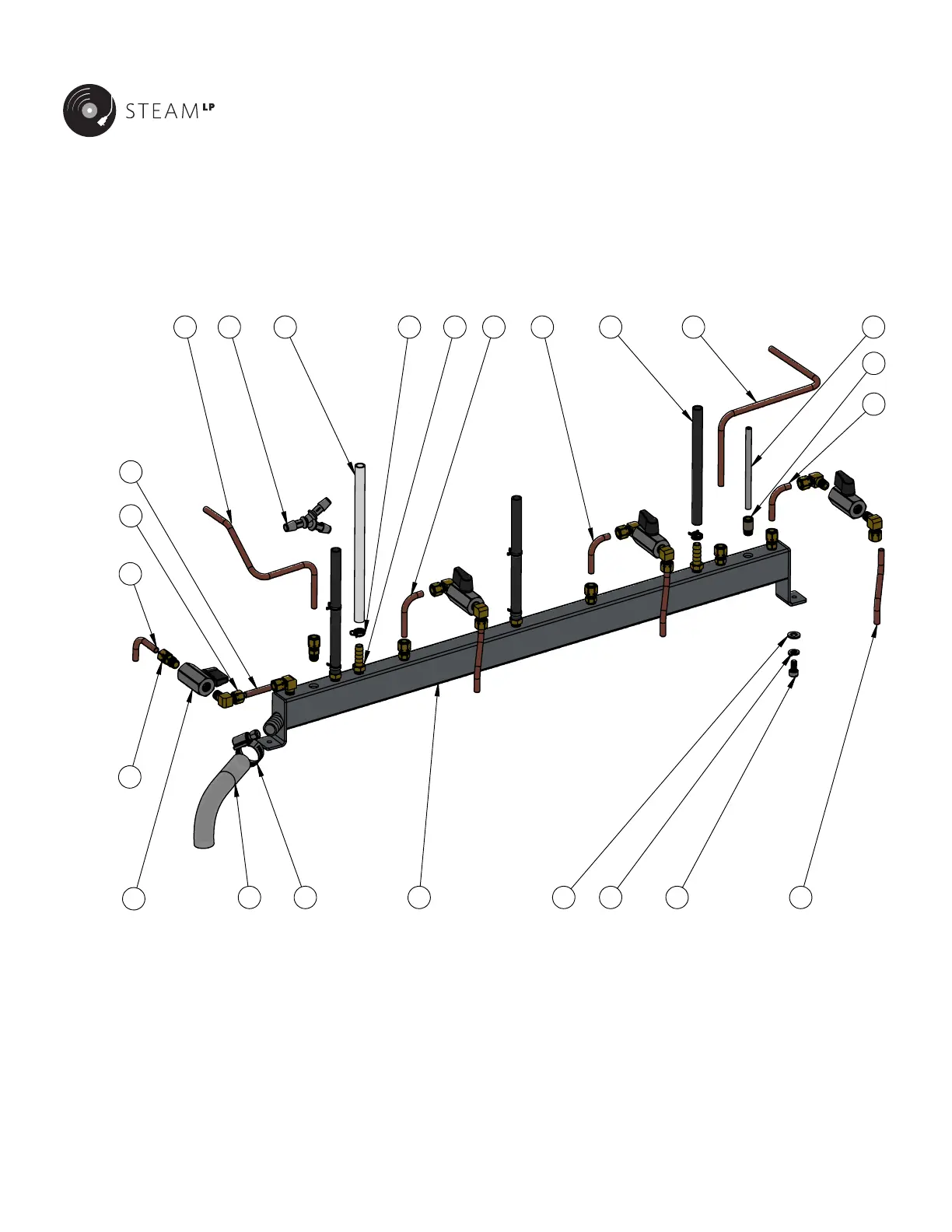

DRAIN CIRCUIT
22
20
23
11
13
21
24
3 4 5 10
19 18 141516
81 96 7
12
17
2
ITEM
NO.
PART NUMBER DESCRIPTION
1 40015-32009 STEAM ACTUATOR DRAIN TUBE, LEFT
2 42000-10130 WYE CONNECTOR, BARBED, 3/8 TUBE, 226F, HDPE
3 40000-32150 HIGH-TEMPERATURE SILICONE RUBBER TUBING, SOFT, 5/16" ID, 7/16" OD, 1/16" WALL, WHITE
4 44000-36280 SPRING CLIP,3-WAY SOLENOID VALVE,11.6-12.2mm, MEDIUM
5 42005-10000 FITTING, BARBED HOSE, ADAPTER FOR 5/16" HOSE ID X 1/8" NPTF - M PIPE, BRASS
6 40005-32104 LONG DRAIN BAR ELBOW
7 40005-32105 MID LENGTH DRAIN BAR ELBOW
8 40000-32180 EPDM RUBBER TUBING, 5/16 ID X 7/16 OD
9 40015-32008 STEAM ACTUATOR DRAIN TUBE, RIGHT
10 40000-32050 EXTREME-TEMP TUBING, TEFLON, SEMI-CLEAR WHITE 1/8" ID, 1/4" OD
11 42000-34220 FITTING, TUBE, HEX SOCKET ADAPTER FOR 1/4" TUBE OD, 1/8" NPT M, POLYBUTYLENE & NICKEL
12 40005-32106 SHORT DRAIN BAR ELBOW
13 40005-32050 BREW TANK TO BALL VALVE
14 44005-10012 SHCS,M6-1.0X12MM,18-8 SS
15 44000-36110 LOCK WASHER, TANK MOUNT
16 46000-53040 WASHER, FLAT, M7 SCREW SIZE, 14mm OD, 1.4mm-1.8mm THICK
17
13005-30018 DRAIN MANIFOLD, STEAM, 3GP
13005-20018 DRAIN MANIFOLD, STEAM, 2 GP
18 40000-32060 WORM-DRIVE HOSE CLAMP, NONSLIP SCREW 1/2" TO 1-1/16" CLAMP DIAMETER RANGE, 9/16" BAND WIDTH
19 40000-32170 3-A SANITARY CLEAR PVC VACUUM TUBING 5/8" ID, 7/8" OD, 1/8" WALL THICKNESS
20 42000-50290 BALL VALVE, 1/8" NPT
21 42000-34500 FITTING, 1/4" TUBE OD X 1/8" NPTF - M, BRASS
22 40005-32100 BALL VALVE TO DRAIN TUBE
23 42000-34560 FITTING, 90 DEG ELBOW FOR 1/4" TUBE OD X 1/8" NPTF - M, BRASS
24 40005-32060 HOT WATER TO MIX VALVE TUBE
DRAIN CIRCUIT
support@slayerespresso.com (206) 284-7171
PARTS MANUAL - STEAM LP
DocNo.
DOC-00082
