Slayer Steam LP - Electronics Components

SLAYER STEAM LP USER MANUAL V1.1 | JUNE 2019 64

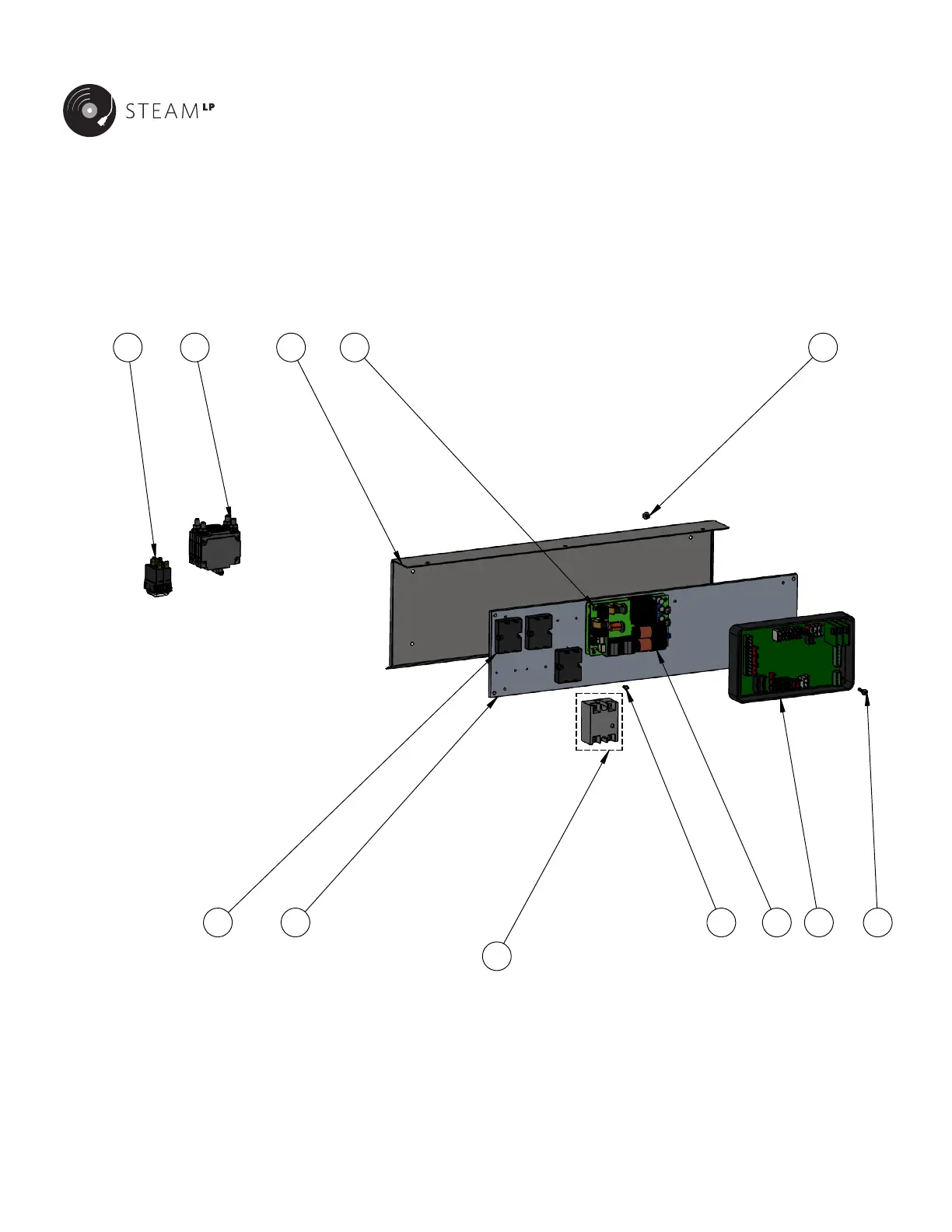

ELECTRONICS COMPONENTS
7 611 9
4
810
5
12
1 2 3
2 GROUP MACHINES ONLY
3 GROUP MACHINES ONLY
BREW TANKS AND 2 GROUP STEAM TANK
3 GROUP STEAM TANK
ITEM NO. PART NUMBER DESCRIPTION
1 30005-20270 2 POLE ROCKER BREAKER SWITCH
2
30000-20230 BREAKER,30A,2POLES
30000-20240 BREAKER, 40A, 2 POLES
3
13005-20027 ELECTRICAL SHIELD ASSEMBLY, STEAM, 2 GROUP
13005-30027 ELECTRICAL SHIELD, ASSEMBLY, STEAM, 3 GROUP
4 44004-36140 SCREW, PAN HEAD PHILLIPS, M3 SIZE, 20mm LENGTH, .5mm PITCH, STAINLESS
5 44005-10080 SCREW,TRUSS HD,EW,M4-0.7X8MM,PHILILPS,18-8 SS
6 44005-10370 SCREW,M4-0.7X16.0,PHMS,PHILLIPS,18-8
7 30005-10080 MAIN BRAIN, SLAYER STEAM
8 30000-20003 POWER SUPPLY, COSEL, 500 WATT
9 44005-10390 SCREW,M3-0.5X8.0,PHMS,PHILLIPS,18-8
10 10005-20010 SUB PLATE, STEAM
11 30005-20011 SOLID STATE RELAY, 20A, 24VDC
12 30000-20050 RELAY,SOLID STATE,40A
ELECTRONICS COMPONENTS
support@slayerespresso.com (206) 284-7171
PARTS MANUAL - STEAM LP
DocNo.
DOC-00084
