Slayer Steam LP - Steam & Hot Water Valve Train

SLAYER STEAM LP USER MANUAL V1.1 | JUNE 2019 50

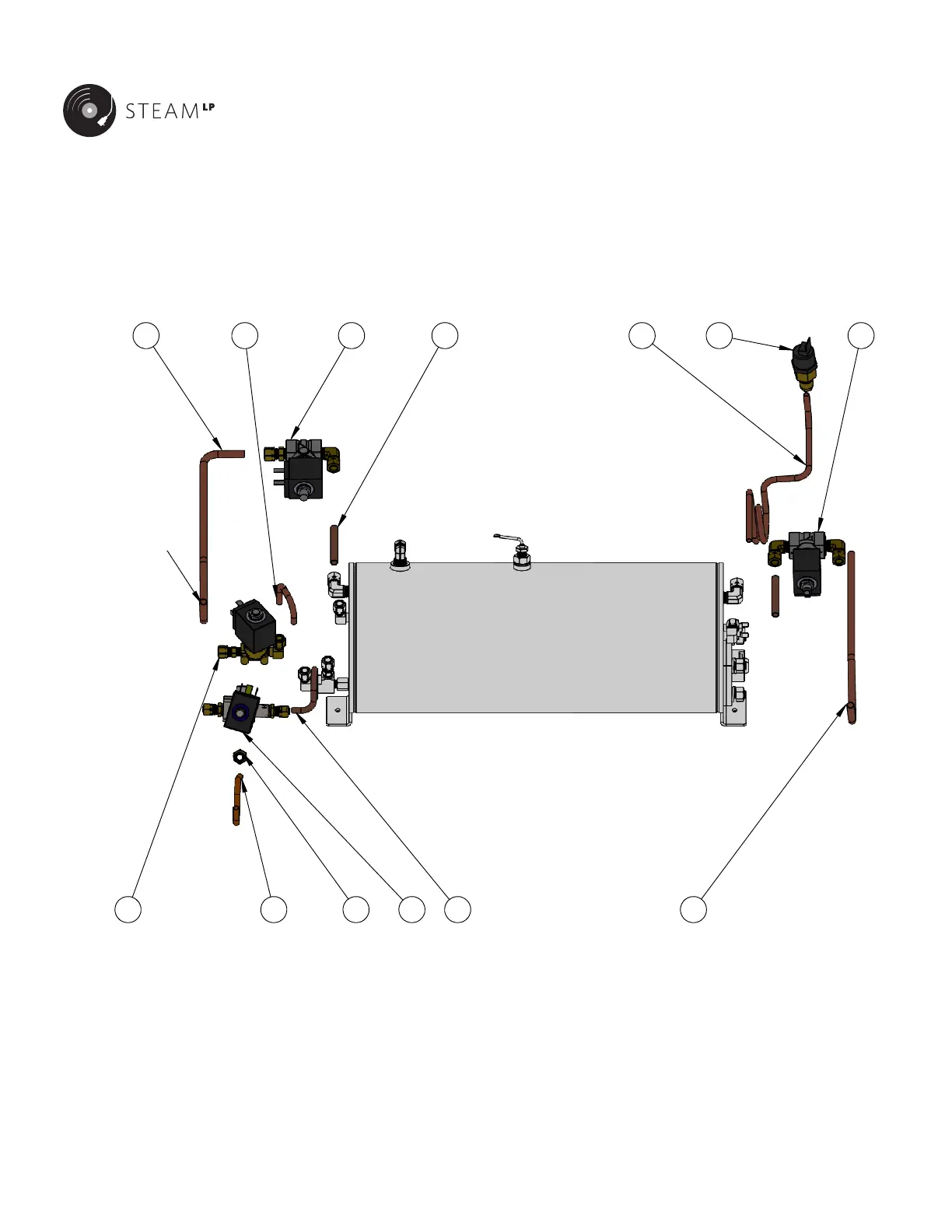

STEAM & HOT WATER VALVE TRAIN
1 65
8
3 4 7
12 11 10 9
2
13
TO HOT
WATER WAND
TO STEAM
WAND
TO STEAM
WAND
FROM LOW
PRESSURE
WATER INLET
ITEM
NO.
PART NUMBER DESCRIPTION
1 40015-32007 STEAM ACTUATOR TO LEFT WAND TUBE, STEAM BASIC
2 40005-32110 FLOW METER TUBE
3 99015-10001 STEAM SOLENOID ASSEMBLY,L,STEAM EP
4 40015-32003 STEAM TANK TO ACTUATOR TUBE, STEAM BASIC
5 40015-32010 LTEK PRESSURE TRANSDUCER TUBE, STEAM
6 99005-17010 PRESSURE TRANSDUCER ASSEMBLY, ELTEK
7 99015-10002 STEAM SOLENOID ASSEMBLY,R,STEAM EP
8 40015-32005 STEAM ACTUATOR TO RIGHT WAND TUBE, STEAM BASIC
9 40015-32100 STEAM TANK TO HOT WATER MIX TUBE, STEAM LP
10 99015-10070 HOT WATER ASSEMBLY, SLAYER STEAM
11 44000-36220 FITTING, 45 DEGREE, FLARED, SHORT NUT FOR 1/4" TUBE OD, BRASS
12 40005-10016 OUTLET TUBE, MIXED WATER
13 99015-10080 STEAM FILL ASSEMBLY
STEAM AND HOT WATER VALVE TRAIN
support@slayerespresso.com (206) 284-7171
PARTS MANUAL - STEAM LP
DocNo.
DOC-00075
