Slayer Steam LP - Steam Wand Assembly

SLAYER STEAM LP USER MANUAL V1.1 | JUNE 2019 52

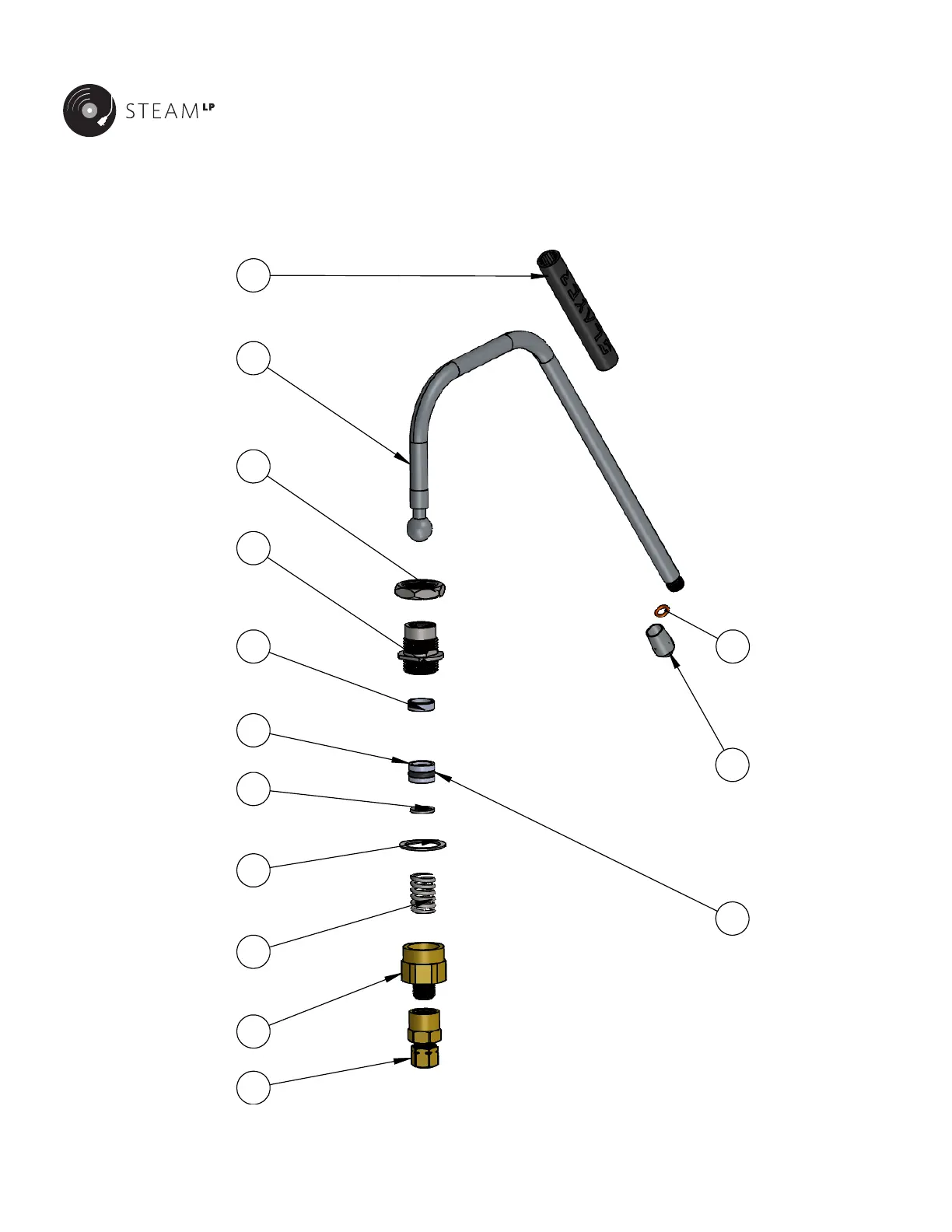

STEAM WAND ASSEMBLY
13
12
10
9
8
7
6
5
4
3
1
14
11
2
ITEM NO. PART NUMBER DESCRIPTION
1 46005-53170 GRIP, STEAM WAND, COOL TOUCH
2 40005-50330 STEAM WAND, SLAYER STEAM
3 10005-10008 STEAM AND HOT WATER LOCK NUT
4 10005-10002 STEAM, WAND SOCKET
5 46005-53110 STEAM SEAL
6 46005-53060 BUSHING 15 X 10.5 MM, STEAM
7 46000-53040 WASHER, FLAT, M7 SCREW SIZE, 14mm OD, 1.4mm-1.8mm THICK
8 46000-53070 TEFLON GASKET 27MM
9 46005-53030 ARTICULATION SPRING FOR STEAM VALVE, 13X18MM
10 46005-53010 REAR BLOCK FOR STEAM ASSEMBLY
11 42000-34540 FITTING, 5/16" TUBE OD X 1/4" NPTF - F, BRASS
12 46000-53050 O-RING FOR VALVE BUSHING
13 46000-50343 STEAM TIP # 3 (STANDARD) -- SEE OPTIONS ABOVE
14 46000-50030 O RING FOR STEAM TIP, 1.5 X 6
ITEM
NO.
PART NO. DESCRIPTION
13
46000-50340 STEAM TIP, 1.0mm, #0
46000-50341 STEAM TIP, 1.1mm, #1
46000-50342 STEAM TIP, 1.2mm, #2
46000-50343 STEAM TIP, 1.3mm, #3
46000-50344 STEAM TIP, 1.4mm, #4
46000-50345 STEAM TIP, 1.5mm, #5
46000-50346 STEAM TIP, 1.6mm, #6
STEAM WAND, STEAM LP
support@slayerespresso.com (206) 284-7171
PARTS MANUAL - STEAM LP
DocNo.
DOC-00077
