9.3.1 100 % O

Calibration

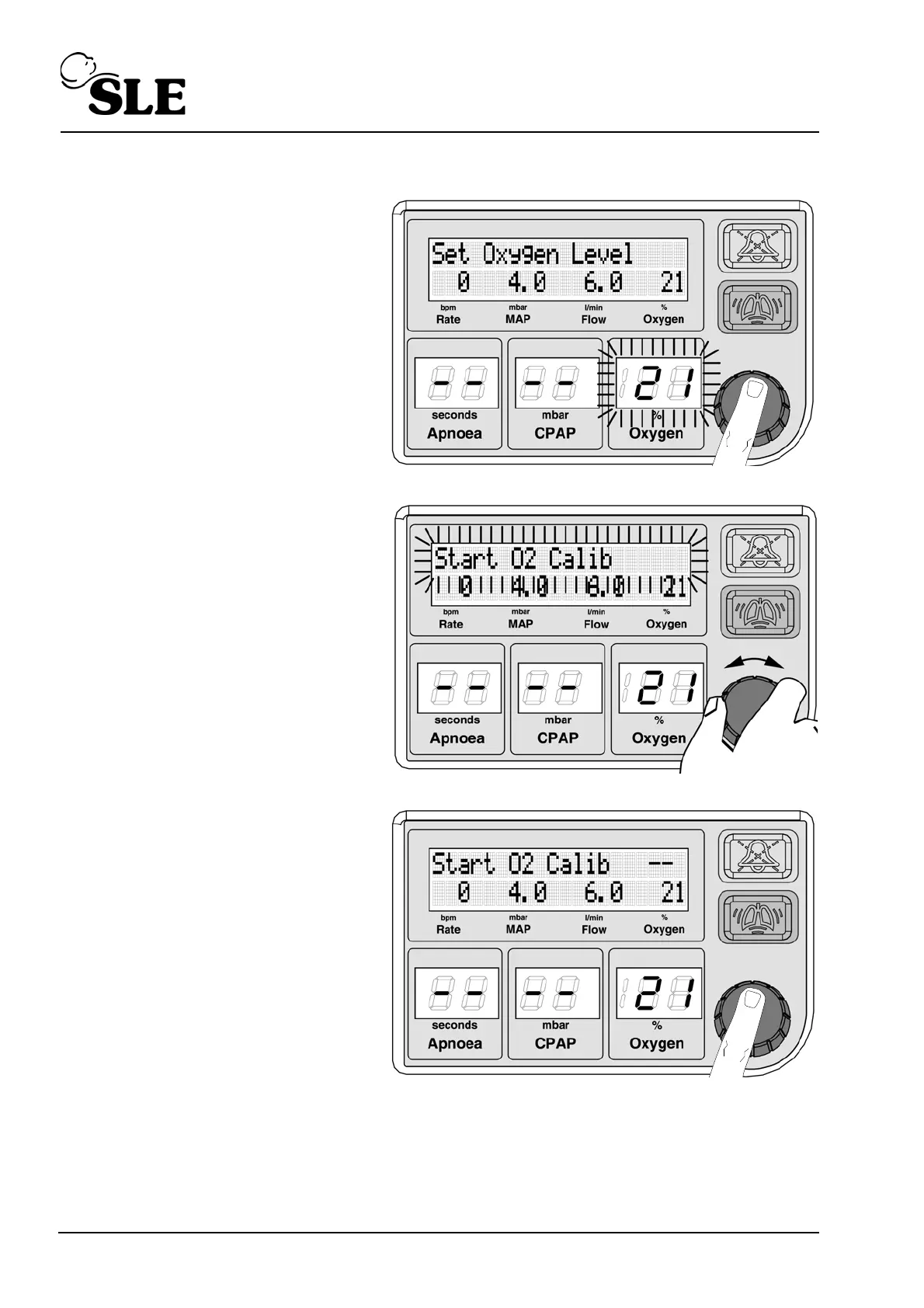

Push or turn the knob.

Rotate the knob until the

text “Start O2 Calib”

appears and starts to flash.

Push the knob to select.
