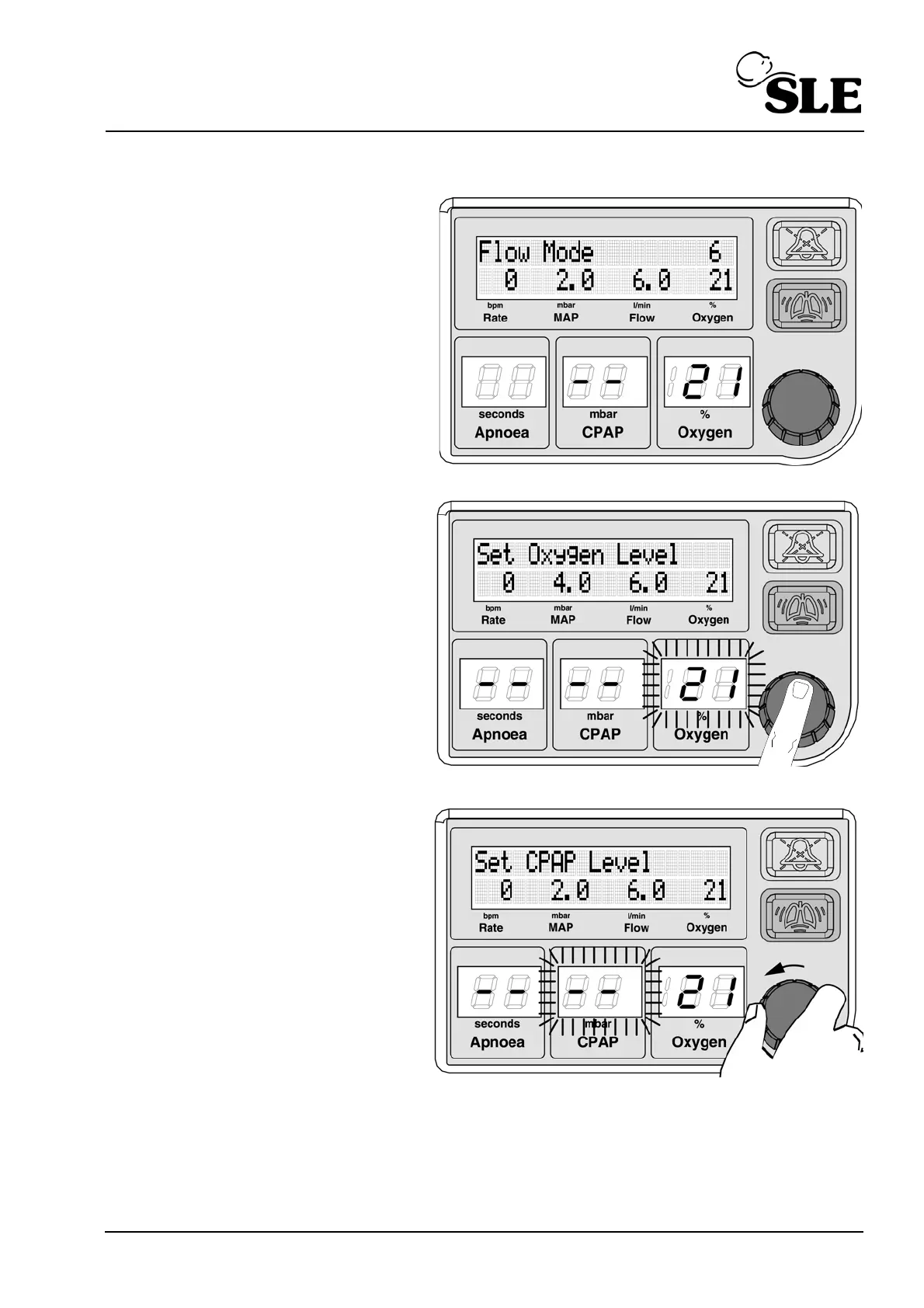

13.3 Flow mode to CPAP mode

The user is in “Flow Mode”.

Push or turn the knob.

Rotate the knob to the left

to select the “Set CPAP

level”.
