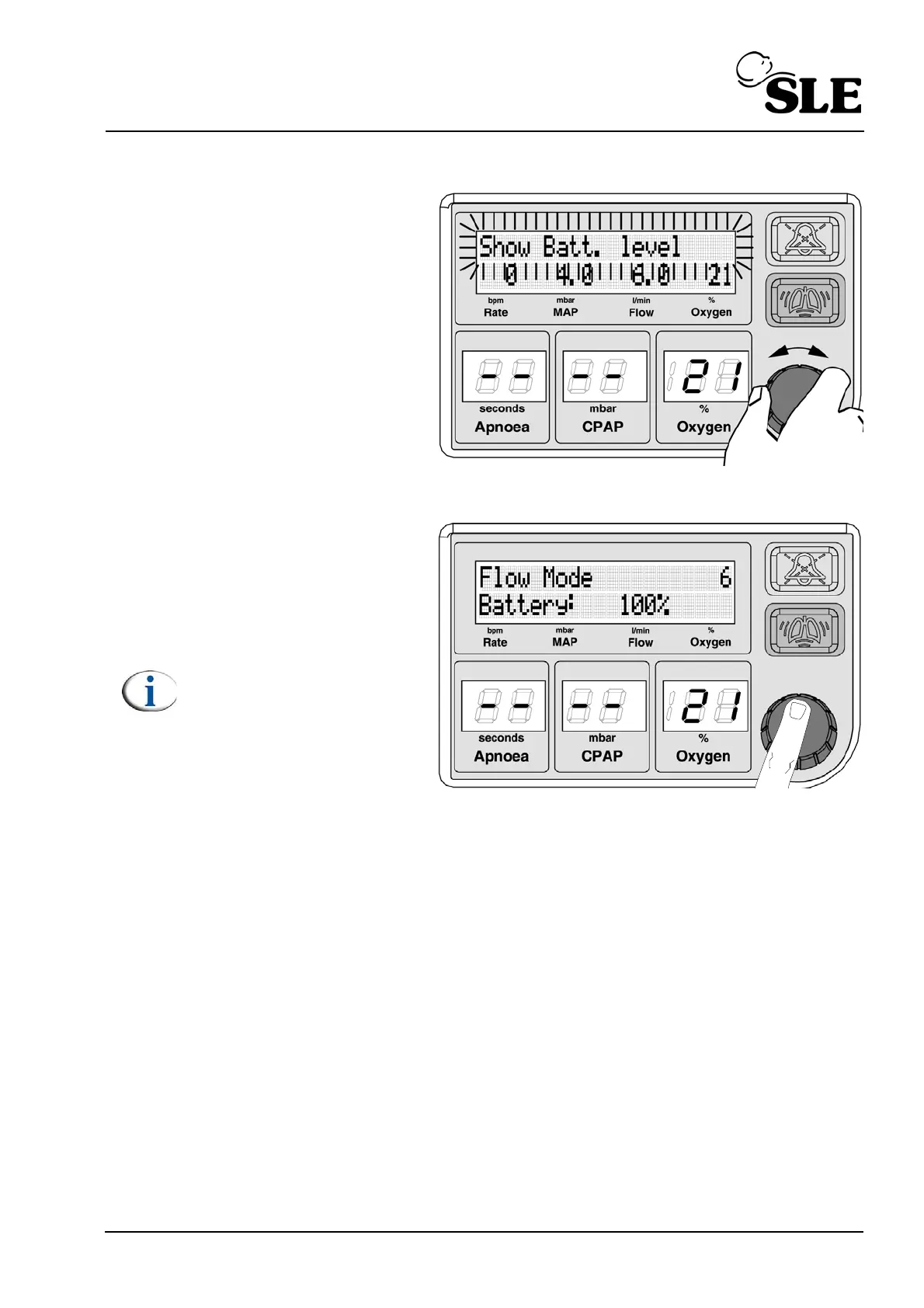

9.3 Showing battery charge level

Rotate the knob to select

the “Show Batt. level” and

starts to flash.

Push the knob and the

battery charge level will be

displayed.

Push the knob to return to

the default display.

Note: The battery level

times out after 8 seconds.
